Surface mounted panic latch to BS EN 1125

Hoppa till:
+44 (0)121 359 4415 Webbplats

Applikation

Applicable used for panic doors or emergency exits.

Beskrivning

Surface mounted push bar panic latch.

Features and benefits:

  • Three-point panic bolt.
  • Reversible handing to suit doors 1050 mm.

Performance:

  • Independently tested to BS EN 1125 classification: 3-7-7-B-1-4-2-2-A-A.
  • CE marked.
  • Certifire approved CF5516
  • Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 474 Pt 22 up to 120 minutes on timber doors.
  • CCPI Approved Panic Hardware 015200213/0228

=========================

10292 Allgood Hardware Panic Latch

• Independently tested to BS EN 1125

• To suit doors up to 1050mm wide

• Incorporated in successful fire tests and assessed to BS EN 1634-1 and BS 476 Pt 22 up to 120 minutes on timber doors and 240 minutes on metal doors

  • CE marked.
  • Certifire approved CF5516
  • CCPI Approved Panic Hardware 015200213/0228

• Suitable for single doors and pairs of rebated doors when used in conjunction with 10290 Panic Bolt

• Supplied with universal fixings for timber, aluminium, steel or UPVC doors

• Reversible mechanism

• Can be operated from outside by optional 9327 external access device

o Larger sizes available to special order, contact us for further details

• 1 year manufacturing warranty

Finish: BF · Silver · SS · Spectra Tone

=========================

Allmän information

Färg

Silver

ytbehandling

Satin

Material

Stainless steel

Garanti­beskrivning

One year

Uniclass

Pr_30_36_08_63 PanikutgångsanordningarPrimär

CAWS

P21/32 Panikreglar

P21/577 Panikreglar

SKU Code

10292

Product range

Panic hardware
Allgood Hardware / Door Operating

Specifikationsdata - Panikreglar

Klassificeringsdata

Standard

To BS EN 1125 classification.

Classification grades (minimum)

-

Category of use

To BS EN 1125, grade 3.

Durability

To BS EN 1125, grade 7.

Door mass

To BBS EN 1125, grade 7.

Suitability for use on fire and smoke doors

To BS EN 1125, grade B.

Safety

To BS EN 1125, grade 1.

Corrosion resistance

To BS EN 1125, grade 4.

Security

To BS EN 1125, grade 2.

Projection of bar

To BS EN 1125, grade 2.

Type of bar operation

To BS EN 1125, grade A.

Field of door application

To BS EN 1125, grade A.

Material and finish

Satin stainless steel.

Colour

Silver.

Integral accessories

Not required.
30057.

Vägledning för specifikationsalternativ:

'Push bar to open' polyvinyl chloride (PVC) sign.

Type

XX10292 - Panic latch.

External access device

Not required.
9327.

Vägledning för specifikationsalternativ:

Panic bolt.

Third-party certification

Certifire approved CF 5516.

Fire resistance

To BS EN 1634-1 and BS 474-22.

Vägledning för specifikationsalternativ:

120 minutes on timber doors.

Hållbarhetsdata

Innehåller Red List-material

No

Materialets ursprungsland

Italy

Produktens tillverkningsland

Italy

Material

Stainless steel

Produktcertifieringar

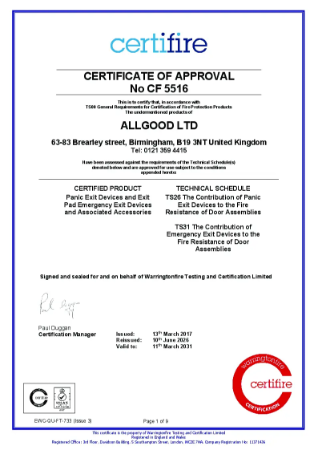

Certifire Certificate

Certifire Certificate

CF5516 Panic Hardware

CCPI Product

CCPI Product

CCPI Product Set Panic Hardware 015200213/0228
