SYSTEM OVERVIEW

Contour® Free-Standing is a lightweight aluminium louvre support system designed for rooftop plant screening and ventilation applications, providing a robust, self-supporting structure where direct façade fixing is not possible.

Designed as an integrated support system for Contour® louvre blades across screening and ventilation applications

Lightweight system designed for ease of installation, particularly suited to rooftop environments

Fixes directly to the building sub-frame, reducing reliance on primary façade systems

Incorporates an advanced sub-structure comprising robust posts, mullions and fixings

Provides a clean, sleek architectural appearance externally, with structural support concealed behind the louvre system

Capable of long-span louvre installations through engineered mullion and support design

Compatible with the full range of Contour® louvre blade types (VL, HP, SL)

Suitable for rooftop plant enclosures and areas where a self-supporting system is required

BLADE CONSTRUCTION

Blade selection determines airflow performance, weather resistance and visual screening characteristics

Blade spans typically up to 3m depending on system configuration

Compatible with 140mm pitch louvre blades, including inverted configurations for effective ground-level screening

Louvre blades fixed via aluminium blade clips to mullions

Allows flexibility in specification depending on project performance requirements

VERTICAL SUPPORT CONSTRUCTION

Vertical posts and mullions manufactured from Aluminium 6063 T6

Vertical support fixing centres typically 1000mm

Integrated horizontal rails provide additional structural stability

Designed to accommodate structural loads, tolerances and long-span requirements

Provides concealed and robust support system for louvre blade installation

Combination of aluminium and steel components provides structural integrity and long-term durability

BRACKET CONSTRUCTION

Base plates and posts manufactured from galvanised mild steel (S275 or similar)

Brackets typically spaced at approximately 3m centres for optimal support

Designed to secure posts and mullions to the building sub-frame or primary structure

Cleats bespoke to suit project-specific fixing requirements

Allows adjustment to accommodate installation tolerances

Suitable for fixing to concrete or structural steelwork

INSTALLATION AND MAINTENANCE ADVANTAGES

Lightweight aluminium system enables efficient handling and installation, particularly in rooftop environments

Free-standing design reduces dependency on façade structure for support

Modular components enable fast, repeatable installation and improved programme certainty

Standardised system simplifies installation sequencing and site logistics

Compatible with a range of louvre blade systems without redesign of primary structure

Durable aluminium and galvanised steel construction provides low maintenance requirements

Allows access behind louvre systems for inspection and maintenance

Suitable for installation in constrained or elevated environments with minimal disruption

BLADE COLOUR / FINISH

Louvre blades polyester powder coated to 60 microns or anodised to 25 microns

Available in standard RAL or BS colour ranges

Finish determined by selected louvre blade system

VERTICAL SUPPORT FINISH

Aluminium mullions polyester powder coated to 60 microns or anodised to 25 microns

Steel posts and components typically hot-dip galvanised, with optional polyester powder coating

Colour to match or complement louvre blade finish

BRACKET FINISH

Typically hot-dip galvanised mild steel for corrosion protection

Polyester powder coating (60 microns) available where exposed or for aesthetic coordination

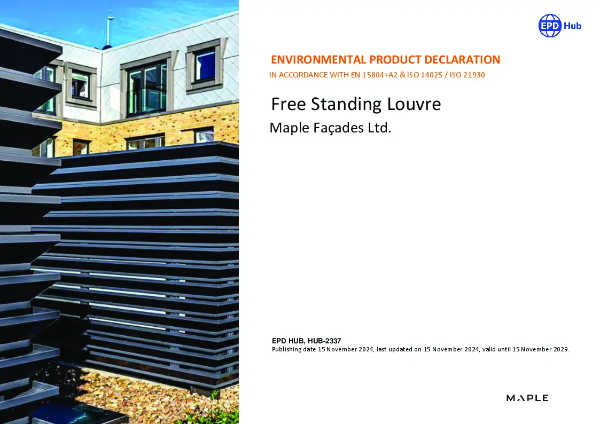

Free Standing Louvre EPD
