KeraTwin K20 - Facade System

Name: KeraTwin K20 - Facade System
Brand: EH Smith Architectural Solutions
SKU: tWvqBkMCkAPgrXypm4hLAB

Verifierad av tillverkaren för 1 månad sedan

SpectraView

EH Smith Architectural Solutions

Produktcertifieringar:

EPD
Certifikattyp
BBA Agrément Certificate
Certifikattyp

A facade system with a variety of colours, formats and surface finishes.

Hoppa till:

+44 (0)121 713 7200 Webbplats

Applikation

An A rated facade system for panel applications.

Beskrivning

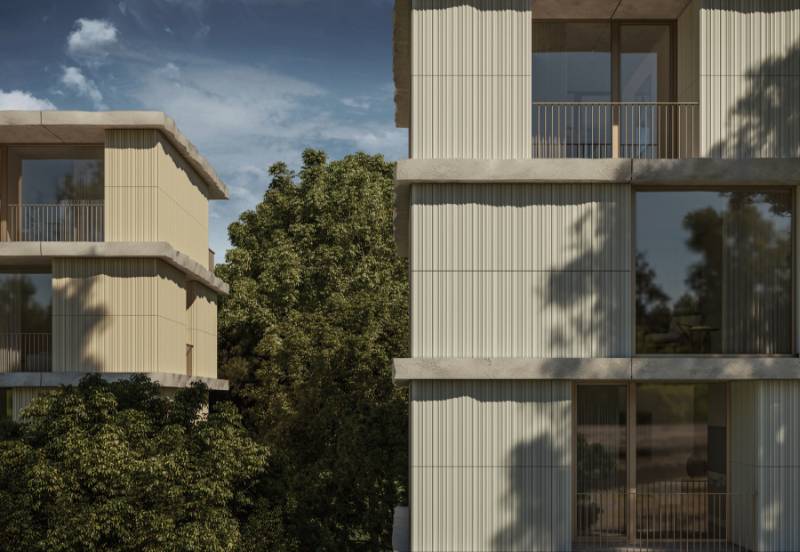

KeraTwin® is an A rated facade system with a wide variety of colours. In addition to the “SpectraView” range of colours, comprising nine harmoniously co-ordinated colour families and contrasting colours, the “Natura unglazed”, “Design unglazed” and “Design glazed” colour systems are also available.

On request, the panels are also supplied with profiles which, due to their three-dimensional texture, can make large facades appear less monotonous and lend an entire building a distinctive character. The joints are realised in such a way that the construction is optimally protected against driving rain. With their relatively low weight of 32 kg/m², the panels are easy to transport and install.

The KeraTwin® system variants essentially differ in terms of their fastenings which depend on the requirements of the specific project. The vertical K20 system rail, for example, offers freedom of design and a wide range of accessories. As the panels are hung on the system rail, no additional tools are required for installation.

Even faster and more efficient laying is possible using the K20 T-profile which requires fewer individual components in the substructure. The vertical K20 Omega profile is specially designed for efficient installation on difficult bases, e.g. walls with post and beam construction. The K20 clamp system permits mounting of the panels in a horizontal and vertical direction and on ceilings.

AGROB BUCHTAL has developed standard technical details, which can be adapted to the project-specific requirements as needed – also as special production. This includes, for example, terminations at windows, doors and the corresponding embrasures, both horizontal and vertical. In addition, mitre-cut panels for corner solutions and corner profiles (rectangular or rounded) facilitate the design of facade details.

Features and benefits:

Offers additional options in terms of surface finish. In addition to the glossy, silky-matt or unglazed surfaces.
Glazed tiles available in any RAL colour.
System variants essentially differ in terms of their fastenings which depend on the requirements of the specific project.
Construction is optimally protected against driving rain.
Easy to transport and install due to relatively low weight.
Available with Hytect coating (self-washing effect).
Lightweight ceramic system which saves both carbon and cost vs other ceramic systems.

BIM DATA for K20 can be found here - Design + Plan - Service - Agrob Buchtal (agrob-buchtal.de)

Allmän information

Färg	Cream Yellow Red Pink Grey Blue Green White Black Orange Ivory Beige Brown Purple Turquoise Other Bronze Copper Visa mer
ytbehandling	Smooth Brushed Grooved Glazed Anti-graffiti Textured Visa mer
Material	Ceramic
Form	Rectangle Square Trapezium Other
Längd	900 mm 1200 mm 1500 mm 1800 mm Bespoke
Bredd	20 mm
Höjd	150 mm 175 mm 200 mm 225 mm 250 mm 275 mm 300 mm 325 mm 350 mm 375 mm 400 mm 450 mm 500 mm 550 mm 600 mm Bespoke Visa mer
Garantibeskrivning	30 year Vägledning för specifikationsalternativ: Material warranty.

Uniclass	Ss_25_20_70_25 Avvattnade och bakventilerade regnskyddssystemPrimär
CAWS	F30/290 Proprietary special fixings F30/260 Angle supports F30/265 Support systems

SKU Code	gl

Specifikationsdata - Dränerade och bakventilerade fasadbeklädnadssystem

Klassificeringsdata
Secondary support structure	Fastening by means of vertical system rail K20. Vägledning för specifikationsalternativ: The profiles of the basic substructure have to be mounted perpendicularly and in a flush way. (T-profile width ≥ 80 mm; recommended width ≥ 100 mm). The system rails K20 (Art. no. 620, 625, 630) have to be precisely aligned horizontally and fastened at the provided holes by means of screws (Art. no. 659-01) or rivets (Art. no. 658). The distance of the system rails K20 in horizontal direction must correspond to the longitudinal grid of the panels. The length of the vertical profiles must be divisible by the height of the panel format and should not exceed the height of a storey of the building. A profile butt joint behind a panel is not allowed. In case of open vertical joints, one joint spacer per panel (Art. no. 645) is inserted in a centric extrusion hole of the panel. In case of closed vertical joints, the joint profile (Art. no. 640 in case of single-span girder; plug-in joint profile, Art. no. 647, in case of single-span girder with jibs) must be used. Fastening by means of vertical T-profile K20. Vägledning för specifikationsalternativ: Mount the T-profiles K20 (Art. no. 695) perpendicularly and in a flush way. Exactly align the T-profiles K20 horizontally. Open vertical joints with T-profile K20 (Art. no. 695Q) with spacer (Art. no. 645). In the case of closed vertical joints, the joint profile (Art. no. 640Q in case of single-span girder, plug-in joint profile, Art. no. 647, in case of single-span girder with jibs) must be used. Fastening by means of vertical Omega profile K20. Vägledning för specifikationsalternativ: The profiles of the basic substructure have to be mounted perpendicularly and in a flush way (top-hat or alternatively Z-profile). The Omega profiles K20 (Art. no. 624, 627, 633) have to be precisely aligned horizontally and be fixed through the long holes provided on the edge by means of screws (Art. no. 659-01) or rivets (Art. no. 658). (Pay attention to fixed and sliding point execution!). The distance of the rails in horizontal direction must correspond to the longitudinal grid of the panels. A profile butt joint behind a panel is not allowed. In case of open vertical joints, one joint spacer per panel (Art. no. 645) is inserted in a centric extrusion hole of the panel. n case of closed vertical joints, the joint profile (Art. no. 640 in case of single-span girder; plug-in joint profile, Art. no. 647, in case of single-span girder with jibs) must be used. Fastening with OmegaV profile for laying in bonds. Vägledning för specifikationsalternativ: The profiles of the basic substructure have to be mounted perpendicularly and in a flush way. Fix the horizontal supporting profiles (Art. no. 597) at the pre-installed vertical substructure by means of supplied fastening materials. Hang in the OmegaV profiles exactly at horizontal grid distance. The distance of the profiles in horizontal direction must correspond to the longitudinal grid of the panels. The position of the OmegaV profiles is secured at the suspension brackets on the left and the right by means of screws (Art. no. 659-01). In case of open vertical joints, one joint spacer per panel (Art. no. 645) is inserted in a centric extrusion hole of the panel. In case of closed vertical joints, the joint profile OmegaV (Art. no. 707) must be used. In case of single-span girder, the plug-in joint profile OmegaV (Art. no. 712 in case of single-span girder with jibs) must be used. Fastening OmegaS with Omega profile and supporting profile. Vägledning för specifikationsalternativ: The profiles of the basic substructure have to be mounted perpendicularly and in a flush way. Fix the horizontal K20 Omega profiles (Art. no. 627) at the pre-installed vertical substructure by means of the supplied fastening materials. The vertical distance depends on the panel length - single-span girder (= 1/2 of panel length), with jibs on both sides (= 1/4 of panel length). Mount the supporting profiles according to the height grid (panel length + 8 mm). Position the securing brackets (Art. no. 711) at both Omega profiles and fix them. Alternatively, secure upper and lower end of the panels at the supporting profiles by means of R-clamps (Art. nos. 682R, 683R, 684R). Fastening with clamp system K20. Vägledning för specifikationsalternativ: The profiles of the basic substructure have to be mounted perpendicularly and in a flush way. The distance of the bearing profiles (profile width ≥ 60 mm) in horizontal direction must correspond to the longitudinal grid of the panels. The length of the vertical profiles must be divisible by the height of the panel format and should not exceed the height of a storey of the building. A profile butt joint behind a panel is not allowed. In the vertical joints, the black joint tape (Art. no. 506) can be applied. The clamps (Art. no. 680, 681, 682, 683, 684) must be fastened with at least 2 rivets (Art. no. 675-01) or 2 screws (Art. no. 657). For the processing of the rivets (Art. no. 675-01), an extended rivetting tool (25 mm) is required. In the area of the clamp fastening, the joints can be closed with the joint profile (Art. no. 688) and one holding clip for joint profile (Art. no. 689) per panel.
Cladding panels	-
Material	Ceramic panels.
Panel joints	8 mm open joints. 10 mm open joints. 8 mm labyrinth joints. 10 mm labyrinth joints. Tillverkarens vägledning Subject to tile orientation and design, consult manufacturer for details.
System accessories	Article 620. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20. System rail, painted. Material: AlMg3 H22 (EN AW-5754) painted black, RAL 7021. Article 625. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20. System rail, bright. Material: AlMg3 H22 (EN AW-5754) unpainted. Article 630. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20. System rail, external angle. Material: AlMg3 H22 (EN AW-5754) unpainted. For installation of mitre-cut panels and external angle profiles. Article 635. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20. Embrasure profile. Material: AlMg3 H22 (EN AW-5754) unpainted. Dimensions and grid according to project-specific requirements. Article 640. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, vertical omega profile K20. Joint profile K20/8. Material: AlMg3 H22 (EN AW-5754), painted black, RAL 7021, RAL-color-painted on request. Article 645. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, Fastening with vertical T-profile K20, vertical omega profile K20, OmegaV profile for laying in bonds. Joint spacer K20/8. Weight: 0.5 kg / box. Material: AlMg3 H22 (EN AW-5754), painted black RAL 7021. Box contents: 250 pieces. Article 658. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, vertical omega profile K20, OmegaV profile for laying in bonds, OmegaS with Omega profile and supporting profile. AI blind rivet, bright. Weight: 1.3 kg / box. Nominal dimensions: 4.8 x 10 mm. Box contents: 500 pieces. Article 659-01. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, vertical omega profile K20, OmegaV profile for laying in bonds, OmegaS with Omega profile and supporting profile. A4 stainless steel screw, bright. Weight: 2.8 kg / box. Nominal dimensions: 4.8 x 16 mm. Box contents: 1,000 pieces + 1 bit. Article 650 / 652 / 654. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, vertical omega profile K20, OmegaV profile for laying in bonds. External angle profile Square / Sword / Negative. Material: AlMg3 H22, painted black, RAL 7021, RAL-color-painted on request. Article 647. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, vertical omega profile K20. Plug-in joint profile K20/8. Material: AlMg3 H22, painted black, RAL 7021, RAL-color-painted on request. For installation in case of single-span girder with jibs. Length: 1496 mm. Article 682R. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, Fastening with vertical T-profile K20, vertical omega profile K20, OmegaV profile for laying in bonds, OmegaS with Omega profile and supporting profile. R-clamp. Material: AlMg3 H22, painted black. Article 683R. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, Fastening with vertical T-profile K20, vertical omega profile K20, OmegaV profile for laying in bonds, OmegaS with Omega profile and supporting profile. R-clamp. Material: AlMg3 H22, painted black. Article 684R. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, Fastening with vertical T-profile K20, vertical omega profile K20, OmegaV profile for laying in bonds, OmegaS with Omega profile and supporting profile. R-clamp. Material: AlMg3 H22, painted black. Article 657. Vägledning för specifikationsalternativ: Fastening with vertical system rail K20, Fastening with vertical T-profile K20, vertical omega profile K20, OmegaV profile for laying in bonds, OmegaS with Omega profile and supporting profile, clamp system K20. A2 stainless steel screw. Black head. For fastening of R-clamp. Article 695Q. Vägledning för specifikationsalternativ: Fastening with vertical T-profile K20. Material: EN AW-6060 T6, painted black. For installation with joint profile 640Q and joint spacer K20/8. Article 640Q. Vägledning för specifikationsalternativ: Fastening with vertical T-profile K20. Joint profile. Material: EN AW-6063 T66, painted black. Article 647. Vägledning för specifikationsalternativ: Fastening with vertical T-profile K20. Plug-in joint profile K20/8. Material: AlMg3 H22. Painted black. RAL-color-painted on request. For installation in case of single-span girder with jibs. Length: 1496 mm. Article 624. Vägledning för specifikationsalternativ: Fastening with vertical omega profile K20. Omega profile, painted. Material: AlMg3 H22, painted black. For installation with joint spacer K20/8. Article 627. Vägledning för specifikationsalternativ: Fastening with vertical omega profile K20, OmegaS with Omega profile and supporting profile. Omega profile, bright. Material: AlMg3 H22, unpainted. For installation with joint profile K20/8. Article 633. Vägledning för specifikationsalternativ: Fastening with vertical omega profile K20. Omega profile, external angle. Material: AlMg3 H22, unpainted. For the installation of mitre-cut panels and external angle profiles. Article 597-01. Vägledning för specifikationsalternativ: Fastening with OmegaV profile for laying in bonds. Horizontal supporting profile, perforated. Standard length: 2995 mm. Nominal dimensions: 05/90 x 25 mm. Material: EN AW 6063 T66 unpainted. Article 700. Vägledning för specifikationsalternativ: Fastening with OmegaV profile for laying in bonds. OmegaV, painted. Material: AlMg3 H22, painted black. For installation with joint spacer K20/8. Article 701. Vägledning för specifikationsalternativ: Fastening with OmegaV profile for laying in bonds. OmegaV, bright. Material: AlMg3 H22, unpainted. For installation with joint profile OmegaV K20/8. Article 705. Vägledning för specifikationsalternativ: Fastening with OmegaV profile for laying in bonds. OmegaV, external angle, bright. Material: AlMg3 H22, unpainted. For the installation of mitre-cut panels and external angle profiles. Article 707. Vägledning för specifikationsalternativ: Fastening with OmegaV profile for laying in bonds. Joint profile OmegaV K20/8. Material: AlMg3 H22, painted black RAL-color-painted on request. Article 712. Vägledning för specifikationsalternativ: Fastening with OmegaV profile for laying in bonds. Plug-in joint profile OmegaV K20/8. Material: AlMg3 H22, painted black RAL-color-painted on request. Article 710. Vägledning för specifikationsalternativ: Fastening with OmegaS with Omega profile and supporting profile. Material: AlMg3 H22, painted black. Article 711. Vägledning för specifikationsalternativ: Fastening with OmegaS with Omega profile and supporting profile. Position securing bracket, bright. Material: AlMg3 H22, unpainted. Box contents: 50 pieces. Article 688. Vägledning för specifikationsalternativ: Fastening with OmegaS with Omega profile and supporting profile, clamp system K20. Joint profile. Material: EN AW 6063 T66, painted black, RAL-color-painted on request. Length: 1496 mm. Article 689. Vägledning för specifikationsalternativ: Fastening with OmegaS with Omega profile and supporting profile, clamp system K20. Holding clip for joint profile. Material: AlMg1, unpainted. Box contents: 100 pieces. Article 680. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Twin-clamp K20. Weight: 45 kg / 1,000 pieces. Perforation: 2 x 3.3 mm Ø. Material: AlMg3 H22, painted black. Article 681. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Edge-clamp K20. Weight: 24 kg / 1,000 pieces. Perforation: 4 x 3.3 mm Ø. Material: AlMg3 H22, painted black. Article 682. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Edge-clamp K20, left. Weight: 24 kg / 1,000 pieces. Perforation: 4 x 3.3 mm Ø. Material: AlMg3 H22, painted black. Article 683. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Edge-clamp K20, right. Weight: 24 kg / 1,000 pieces. Perforation: 4 x 3.3 mm Ø. Material: AlMg3 H22, painted black. Article 684. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Single-clamp K20. Weight: 45 kg / 1,000 pieces. Perforation: 2 x 3.3 mm Ø. Material: AlMg3 H22, painted black. Article 675-01. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Stainless steel blind rivet, black. Weight: 1.05 kg / box. Nominal dimensions: 3.2 x 9.5 mm. Box contents: 500 pieces. extended mandrel (58 mm). Article 506. Vägledning för specifikationsalternativ: Fastening with clamp system K20. Joint tape, black. Weight: 0.5 kg / roll. Nominal dimensions: 40 mm wide, 50 m. Self-adhesive, weather-resistant.
Colour	6201 cream 1 H. 6202 cream 2 H. 6203 cream 3 H. 6204 cream 4 H. 6205 cream 5 H. 6211 yellow 1 H. 6212 yellow 2 H. 6213 yellow 3 H. 6214 yellow 4 H. 6215 yellow 5 H. 6221 apricot 1 H. 6222 apricot 2 H. 6223 apricot 3 H. 6224 apricot 4 H. 6225 apricot 5 H. 6231 salmon-red 1 H. 6232 salmon-red 2 H. 6233 salmon-red 3 H. 6234 salmon-red 4 H. 6235 salmon-red 5 H. 6241 pink 1 H. 6242 pink 2 H. 6243 pink 3 H. 6244 pink 4 H. 6245 pink 5 H. 6251 neutral-grey 1 H. 6252 neutral-grey 2 H. 6253 neutral-grey 3 H. 6254 neutral-grey 4 H. 6255 neutral-grey 5 H. 6261 grey 1 H. 6262 grey 2 H. 6263 grey 3 H. 6264 grey 4 H. 6265 grey 5 H. 6271 blue 1 H. 6272 blue 2 H. 6273 blue 3 H. 6274 blue 4 H. 6275 blue 5 H. 6281 green 1 H. 6282 green 2 H. 6283 green 3 H. 6284 green 4 H. 6285 green 5 H. 4230 glacier-white, glossy H. 4234 chalk-white, matt H. 4530 black, glossy H. 4534 black, matt H. 150 lemon-yellow H. 151 orange H. 152 apple-green H. 153 violet H. 154 contrasting red H. 144 intense blue H.
Finishes	Glazed. Silky-matt. Glossy.
Dimensioner	900 x 150 mm. 900 x 175 mm. 1200 x 200 mm. 1200 x 225 mm. 1500 x 250 mm. 1500 x 275 mm. 1800 x 300 mm. 1800 x 325 mm. 1800 x 350 mm. 1800 x 375 mm. 1800 x 400 mm. 1800 x 450 mm. 1800 x 500 mm. 1800 x 550 mm. 1800 x 600 mm.
Panel Type	Panel with irregular grooves. Vägledning för specifikationsalternativ: Cross-section 8. Grooved panel. Vägledning för specifikationsalternativ: Cross-section 1. Grooved panel positive. Vägledning för specifikationsalternativ: Cross-section 2. Shed profile. Vägledning för specifikationsalternativ: Cross-section 4. New Wave. Vägledning för specifikationsalternativ: Cross-section 7. Smooth. Vägledning för specifikationsalternativ: Standard. Brushed surface KeraTwin® –special color sandstone glazed. Vägledning för specifikationsalternativ: Cross-section 5. Stripy pattern. Vägledning för specifikationsalternativ: Cross-section 3. Sine wave. Vägledning för specifikationsalternativ: Cross-section 6.

Hållbarhetsdata

Innehåller Red List-material	No
Materialets ursprungsland	Germany
Produktens tillverkningsland	Germany
Tillverkningsanläggningens plats	Buchtal 1, 92521 Schwarzenfeld, Germany
Material	Ceramic
Carbon dioxide equivalent
Koldioxidekvivalent, enligt definition i BS EN 15804 Certifierad
Steg Normaliserad enhet (kg CO₂ eq/kg) Deklarerad enhet (kg CO₂ eq/kg) Steg:A1–A3 (”Produktionsskede”) Normaliserad enhet :22.68 (kg CO₂ eq/kg) Deklarerad enhet :22.68
Återvinningsbarhet	94.5%
