GA Masonry Support System (VESS) - Adjustable Stainless St Masonry Support

The VESS masonry support system provides a robust and efficient solution for supporting masonry façades, with cavity widths greater than 45 mm and where continuous structural support is required.

The masonry support system consists of stainless steel support brackets welded to continuous angles at predetermined fixing centres, ensuring consistent load distribution and structural reliability across the façade.

The masonry support brackets incorporate vertical serrated slots (18 x 60 mm) with serrated washers, allowing for up to ±24 mm vertical adjustment to accommodate site tolerances and ensure accurate alignment.

Each masonry support system is bespoke-engineered to suit project-specific requirements, including cavity size, load conditions, fixing type, and support position. This ensures an optimised, cost-effective solution for a wide range of masonry support applications.

Masonry support system suitable for high-load and large-span conditions, the system is commonly used as the primary support method for modern brick façades.

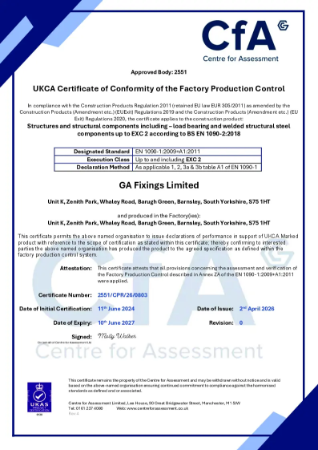

CE and UKCA marked.
