Evverlap A2 Fibre Cement Flat Plank System
Verifierad av tillverkaren för 12 dagar sedan
Complete system specification for the Evverlap non-combustible rainscreen façade panel, and Vitrafix, plus fixings to the wall from Valcan partners.
Applikation

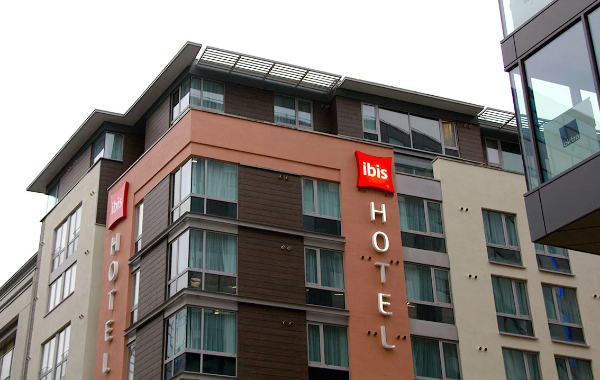

Particularly suited to both internal and external modern commercial, residential and industrial buildings, where a non-combustible facade is required with the natural aesthetics of timber.
Panels are cut installed with a 40 mm overlap weatherboard appearance. Fixings are concealed behind the overlap and can be colour matched to the panel if required.
Beskrivning
Complete system specification for the Evverlap non-combustible rainscreen facade panel, and Vitrafix, plus fixings to the wall from our partners.
This provides a comprehensive warranty on the complete system. All products are tested and certified in accordance with ADB v2 for high rise buildings. All batch numbers will be recorded, regular site visits to be made by Valcan during the installation, frequency to be decided at order stage with client.
Features and benefits:
- Flat plank installation.
- No oil-canning appearance.
- Offering a cost-effective and aesthetically pleasing façade solution.
- Lightweight and rigid, easy to install.
- Non-combustible.
- Versatile: Can be custom designed into a wide range of shapes and dimensions along with perforated or curved in some applications.
- Warranty available up to ten years: consult manufacturer for details.
Vitrafix systems:
Aluminium carrier system brackets, profiles and fixings which have been tested to BS 8414-1 and BS 8414-2 and are Centre for Window and Cladding Technology (CWCT) tested. Designed to offer a cost effective yet strong carrier system, and is suitable for all building types.
- Vitrafix VF1: The VF1 system has adjustability of 102–235 mm and can be further extended by combining the Vitrafix VF2/TH system to give an additional depth: consult manufacturer for further details. Custom depth brackets are also available.
- Vitrafix VF2: Comprised of aluminium or steel top-hats and C-channel rails to allow brackets to be installed in isolation of stud location or increase system depth. The VF2 top-hats can also be used in the own right to replace timber batten style sub grids.
Features and benefits:
- Lightweight.
- Durable.
- Tested to BS 8414.
- Tested to Centre for Window and Cladding Technology (CWCT).
- System warranty available - contact manufacturer's technical team for information.
- Application: For panel systems using VF1 fixings.
Allmän information
Färg | Black Brown Grey Orange Red |
ytbehandling | Smooth Textured Vägledning för specifikationsalternativ: Wood grain effect. Painted |
Material | Fibre cement |
Längd | 3657 mm |
Bredd | 210 mm |
Höjd | Bespoke |
Garantibeskrivning | Ten year Vägledning för specifikationsalternativ: Up to ten years; consult manufacturer for details. |
Uniclass | |
CAWS | H92/120 Rainscreen cladding |
Specifikationsdata - Dränerade och bakventilerade fasadbeklädnadssystem
Klassificeringsdata | |
System performance | Tillverkarens vägledningInsert requirements. |
Thermal insulation | Certifix mineral wool rainscreen slab, thickness. Vägledning för specifikationsalternativ: Insert required thickness. Thermal performance: 0.034 W/m·K. Fire rating (to BS EN 13501-1): A1. Fixings: CIA/FR Certifix fire-rated insulation fixings. |
Breather membrane | |
Material | CertiShield Class A2 Breather Membrane. Vägledning för specifikationsalternativ: Fire performance to EN 13501-1. |
Fasteners | Manufacturer's standard. |
Secondary support structure | Vitrafix VF1/ VF2. Vägledning för specifikationsalternativ: Aluminium. Tillverkarens vägledningSee below for options for: Brackets; rails; horizontal rails; fixings; accessories. |
Cavity fire barriers | |
Horizontal | Certifix Open State Cavity Barrier (OSCB). Tillverkarens vägledningFixings: Fire-tested fixings to be advised by Certifix Ltd to equivalent performance of fire barrier, fixing reference dictated by substrate. |
Vertical | Certifix Wall Cavity Fire Barrier - Full Fill. Tillverkarens vägledningFixings: Fire-tested fixings to be advised by Certifix Ltd to equivalent performance of fire barrier, fixing reference dictated by substrate. |
Cladding panels | |
Material | Evverlap fibre cement weatherboard, 3000 x 210 x 10 mm. Vägledning för specifikationsalternativ: Weight: 12 kg/m²; density: 1150 ±75 kg/m³. Tillverkarens vägledningFixing: VFSDP5.535C Vitrafix self-drill panhead 5.5 x 35 mm, A4, colour-matched to panel. 12 mm-thick panels also available. Large-format sheets also available; minimum order quantities apply. Consult manufacturer for details. |
Panel joints | Overlapping. Closed joints. |
Reveals | Not required. 25 mm-wide window flashing profile. Vägledning för specifikationsalternativ: Supplied by Certifix. |
Colour/ Finish | Unpainted. Vägledning för specifikationsalternativ: For customer painting on site (after installation). Anthracite grey, RAL 7016. Slate grey, RAL 7015. Umbra grey, RAL 7022. White, RAL 9002. Black, RAL 9004. Light brown. Orange, RAL 2004. Red, RAL 3020. Wood finishes. Vägledning för specifikationsalternativ: Nine standard finishes; consult manufacturer for options and insert requirements. Custom colour. Vägledning för specifikationsalternativ: Insert requirements. |
Fire rating (to BS EN 13501) | A1. |
Rails | VF2TH1002A Vitrafix VF2, 100 x 50 x 2 mm Top Hat D. Vägledning för specifikationsalternativ: 3000 mm long. VF2TH502A Vitrafix VF2, 50 x 50 x 2 mm Top Hat S. Vägledning för specifikationsalternativ: 3000 mm long. |
Fixings | VFSD.538/A4 Vitrafix self-drill, 5.5 x 38 mm, A4 grade, 8 mm hex head w/washer. Masonry anchors by Certifix Ltd - ETA approved, fire-rated fixing. Vägledning för specifikationsalternativ: Certifix Ltd to carry out pull out test on site to determine correct fixing. |
Cavity | Depth: 50 mm open joint installation. Vägledning för specifikationsalternativ: Measured from face of insulation to rear of panel; can be reduced by 50% at fire barrier locations or other “pinch” points. Depth: 25 mm closed joint installation. Vägledning för specifikationsalternativ: Measured from face of insulation to rear of panel; can be reduced by 50% at fire barrier locations or other “pinch” points. Other. Vägledning för specifikationsalternativ: Consult CWCT section 3.4.4.4 and insert requirements. |
Sheathing board | ProcellaPro. Vägledning för specifikationsalternativ:
|
Hållbarhetsdata
Material | Fibre cement |
Liknande produkter från Valcan (Fairview Europe Ltd)
Ceramapanel & VitraFix Rivet Fix Non-Combustible A1 Cladding System

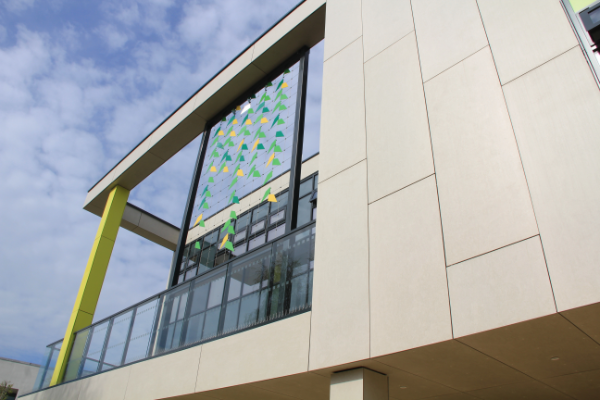

Ceramapanel & VitraFix Secret Fix Non-Combustible A1 Cladding System

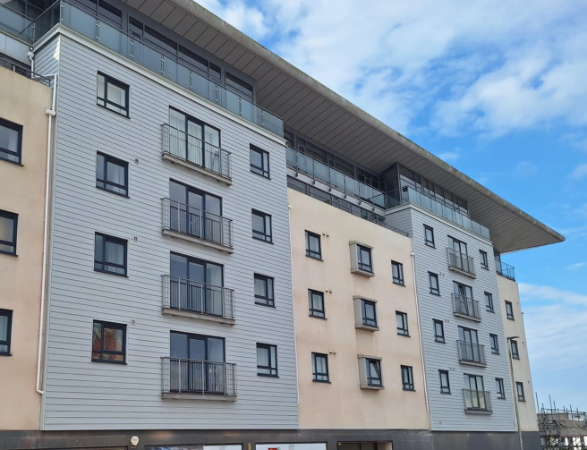

Evverlap A2 Fibre Cement Overlapping Plank Cladding System

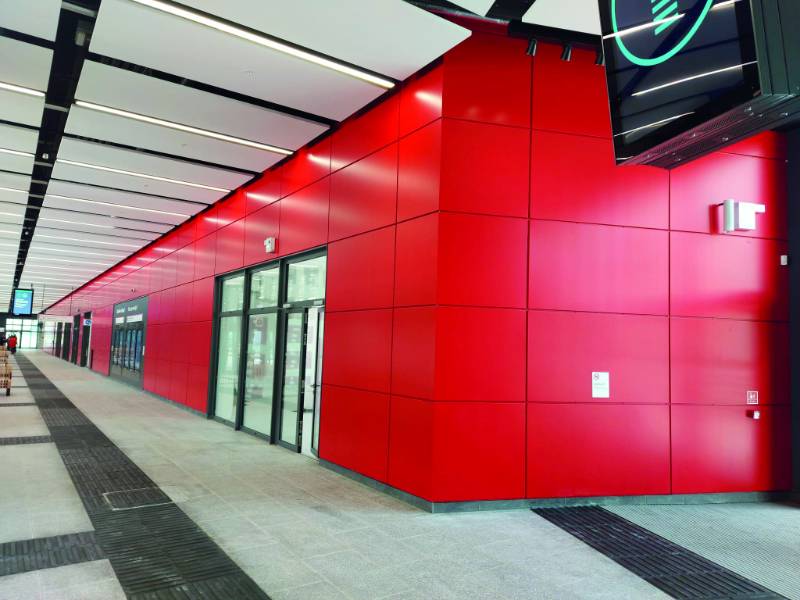

VitraDual - Non Combustible A1 Cassette Fix Cladding System

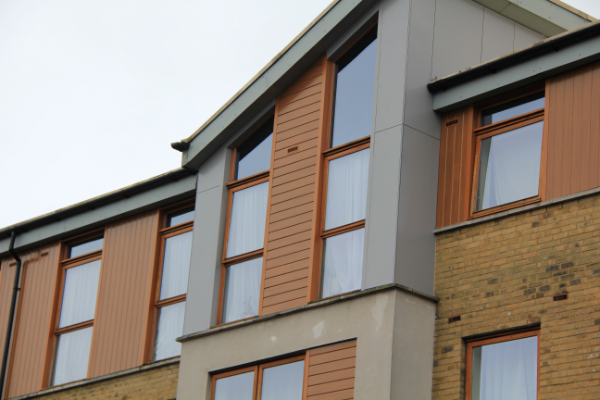

VitraDual A1 Non-combustible Interlocking Plank System Fix
