NBS Source
WZA
Compare variants

WZA

Verified by manufacturer 2 months ago

Air volume - 1000 m³/h

Kampmann UK Ltd. Variant:

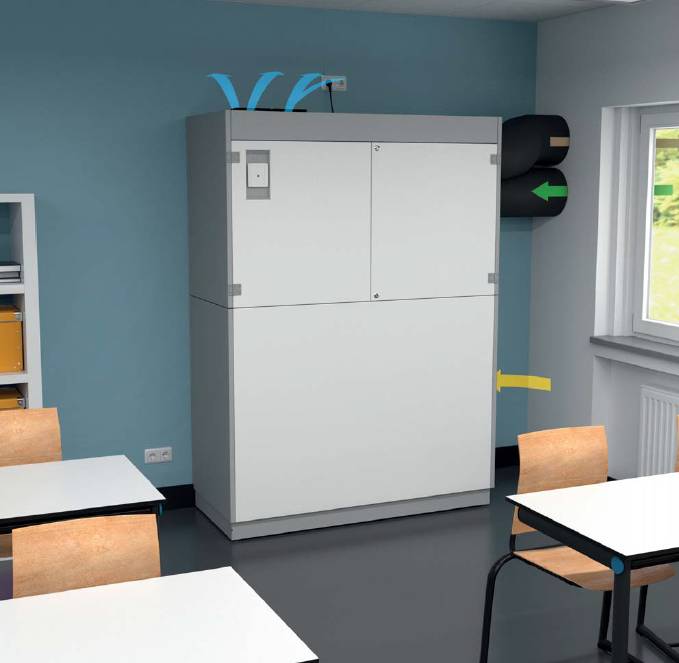

Decentralized school ventilation unit, cabinet version, with supply air, extract air with head and humidity recovery functions. Outside air supply via a facade connection.

Jump to:
+44 (0)1932 228592 www.kampmann.co.uk

Application

Suitable for use in schools.

Description

The Kampmann WZA, a decentralized ventilation unit, replaces polluted room air with fresh outside air. The integral CO2 sensor in the unit measures the fresh air requirement. This is crucial to reduce any possible viruses and also promote pupils' ability to concentrate. Too high a CO2 content in room air gives rise to what is referred to as "muggy air".


Features and benefits:

  • Easy installation.
  • Easy commissioning intuitive operation.
  • Quiet operation.
  • Air quality constantly monitored.
  • Safe operation.
  • Outside air supply through a façade connection.

General information

Color

Grey

White

Length

660 mm

Width

1512 mm

Height

2100 mm

Uniclass

Pr_60_65_03_87 Supply and return air-handling unitsPrimary

CAWS

U90/413 Ventilation fan units

U90/140 Mechanical supply ventilation

U90/413 Ventilation fan units

U90/140 Mechanical supply ventilation

Specification data - Supply and return air-handling units

Duty

-

Air volume

-

Supply

1000 m³/h.

Sound power level

51 (db) A.

Environment

Internal.

Components

-

Filters

Outside air filter and extract air filter.

Heat recovery

-

Heat recovery equipment

Not required.

Electrical supplementary heating coil.

Optional. On request, it is possible to equip the units on site with a supplementary heating coil (1.0 kW).

This raises the supply air temperature depending on the air volume flow by between 3 - 6 K if required.

Extract fan

-

Fan type

Radial fan.

Continuously variable EC single-phase radial fans: excellent efficiency through the use of GreenTech, EC technology. Quiet operation thanks to optimized air flow guidance with guide grille.

SupplyAirTemperatureHeating

17.0 °C.

SpaceRelativeHumidity

Supply air relative humidity.

37%.

Power consumption

312 W.

SoundPressure

39 (db) A.

Height

2100 mm.

Width

1512 mm.

Depth

660 mm.

Outlet

Supply air outlet.

Built in.

External.

Environmental information

Country of product manufacture

Germany
