Application

- Medium duty:

  • Town and city centres.
  • Public parks.
  • Car parks.

Description

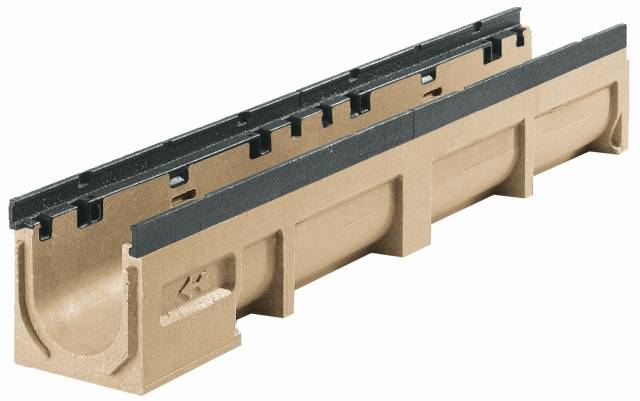

A range of channel drainage for medium and heavy duty applications. The slimslot design provides added protection for heeled footwear and small wheeled traffic, whilst the CLIPFIX gratings in ductile iron or composite material will complement almost any surface finish. Heavy duty channels are a robust and durable drainage system for areas where high wheel loads are present.

Applications:

- Medium duty:

  • Town and city centres.
  • Public parks.
  • Car parks.

- Heavy duty:

  • Commercial premises.
  • Warehouses and stockyards.
  • Dockside areas.

General information
Specification data - Drainage channels with gratings
Product Reference

Wavin Civils Channel

Type

100HDC100

Heavy duty channel, flat, D400/ F900, 150 mm deep, 1 m length.

100HDC150

Heavy duty sump with bucket.

100MDC100

Medium duty channel, flat, C250, 150 mm deep, 1 m length.

100MDC150

Medium duty sump with bucket and grating.

150HDC100

Heavy duty channel, flat, D400/ F900, 150 mm deep, 1 m length.

150HDC150

Sump upper without grating.

150HDC160

Sump lower.

150HDC170

Sump bucket.

200HDC100

Heavy duty channel, flat, D400/ F900, 280 mm deep, 1 m length.

200HDC150

Sump upper without grating.

200HDC160

Sump lower.

200HDC170

Sump bucket.

300HDC100

Heavy duty channel, flat, D400/ F900 390 mm deep, 1 m length.

300HDC150

Sump upper without grating.

300HDC160

Sump lower.

300HDC170

Sump bucket.

Accessories

None

100HDC110

Heavy duty Profix grating, D400, 500 mm length.

100HDC120

Heavy duty Profix grating, F900, 500 mm length.

100HDC130

End plate blank.

100HDC140

End plate, outlet.

150HDC110

Heavy duty Profix grating, D400, 500 mm length.

150HDC120

Heavy duty Profix grating, F900, 500 mm length.

150HDC130

End plate blank.

150HDC140

End plate, outlet.

200HDC110

Heavy duty Profix grating, D400, 500 mm length.

200HDC120

Heavy duty Profix grating, F900, 500 mm length.

200HDC130

End plate blank.

200HDC140

End plate, outlet.

300HDC110

Heavy duty Profix grating, D400, 500 mm length.

300HDC120

Heavy duty Profix grating, F900, 500 mm length.

300HDC130

End plate blank.

300HDC140

End plate, outlet.

100MDC110

Medium duty Slimslot grating, ductile iron, C250.

100MDC120

Medium duty Slimslot grating, composite, C250.

100MDC130

End plate blank.

100MDC140

End plate, outlet.
