Voute "L" smoking and vaping shelter
Verified by manufacturer 8 months ago
529520 - 2500 mm
529520 - 2500 mm
Smoking and vaping shelter.
Application
Suitable for a variety of applications specifically designed as a smoking and vaping shelter.
Description

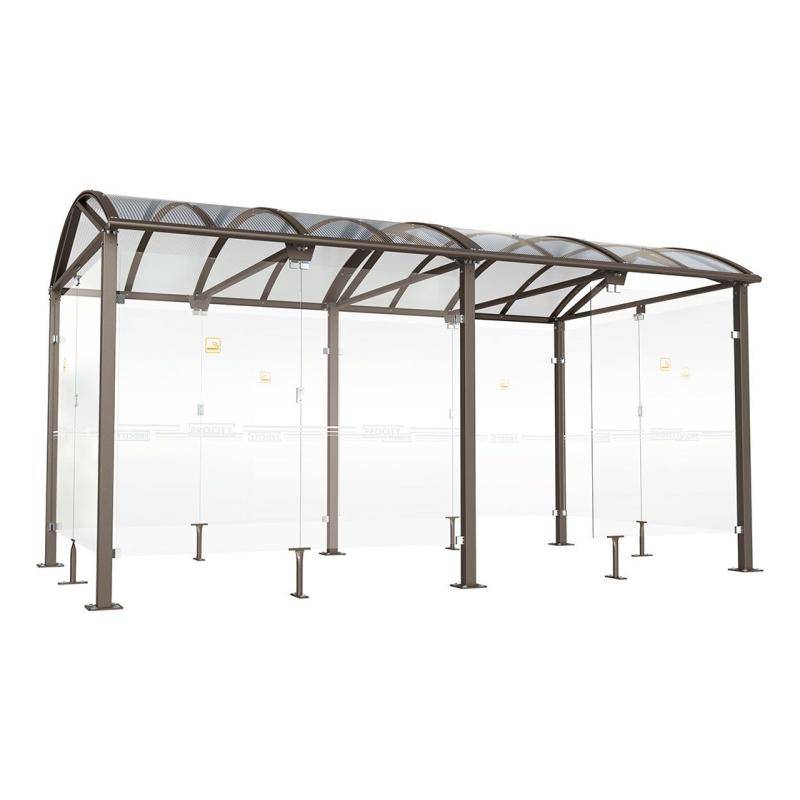

The Voute "wide" smoking shelter has a depth close to 3 meters thus allowing to accommodate more smokers while respecting personal space.
Features and benefits:
- Framed structure galvanized steel tubes (80 x 80 mm).
- Roof structure 60 x 40 mm steel crossbars and aluminium rain gutters, and anti-UV-treated 6 mm cellular polycarbonate dome.
- Front rear and side cladding in 8mm safety glass the “PROCITY” safety etching.
- Available in a large range of painted finishes.
- Installed on base plates, expansion anchors included.
- Optional seating and ashtrays.
- Voute "L" smoking and vaping shelter - Smoking or vaping shelters - Smoking and vaping solutions - Procity UK
General information
Color | Red Blue Green Brown Grey |
Finish | Galvanized Painted Powder-coated |
Material | Steel Aluminium Polycarbonate Glass |
Shape | Rectangle |
Length | 2500 mm 5000 mm |
Width | 2692 mm Guidance for specification option: Depth |
Height | 2768 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | B91/330 Canopy B91/390 Smoking shelter B91/385 Shelter |
Specification data - Semi-closed shelters
Shelter description | Smoking and vaping shelter. |
Dimensions | |
Plan size | 2500 x 2692 mm. |
Height | 2768 mm. |
Frame | |
Material | Steel. |
Finish | Galvanized and painted.Guidance for specification option: RAL colours available for paint: RAL 3020, RAL 3004, RAL 5010, RAL 6005, RAL 8017, RAL 7044, RAL 9010, RAL 9005, Procity grey and Corten effect. |
Colour | Red.Blue.Green.Brown.Grey.White.Black.Procity grey.Corten effect. |
Flooring or decking | Baseplates. |
Cladding | |
Material | Glazing plastics. |
Finish | Safety glass with safety markings. |
Colour | Translucent. |
Roof covering | Aluminium-tube crossbars, dome supports with polycarbonate dome. |
Accessories | None.Ashtray. |
Sustainability data
Contains Red List materials | No |
Country of material origin | France |
Country of product manufacture | France |
Recyclability | Steel and aluminium 100% recyclable. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
