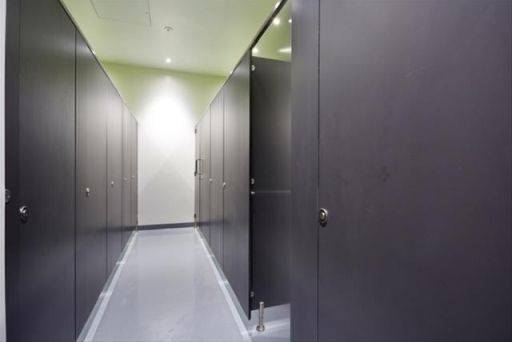

Vista FH Cubicle System

Description

With minimalist lines and chic detailing providing a classy solution to any washroom.

The doors and pilasters are rebated to provide a flush frontal façade with set-back pedestals create a floating appearance.

Vista FH uses 13 mm thick solid grade laminate with high grade stainless steel fittings. Full height for added privacy.

Features:

  • Vertical edges rebated to ensure flush close doors
  • Satin stainless steel hardware
  • Sprung loaded adjustable hinges
  • Partition mounted cylinder pedestals

Included in object:

  • Vista FH 36mm HPL
  • Vista FH 13mm SGL





General information

Finish

Colours from Dunhams Colour Selector; Grafix prints options to front of cubicle doors only; Grafix prints options will incur extra cost

Color

Selected from Vista range of colours

Features

Full height panels with 25mm floor clearance for privacy. 13mm rebated doors and fascias to give a flush fronted finish. Minimalist satin stainless steel hardware

Material

Solid grade laminate

Uniclass 2015

Ss_25_12_60_60 Panel cubicle systemsPrimary

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2015

1

1.3
IFC

IFC2X3

1

1.3
IFC

IFC2X3

1

1.3
Download now from NBS National BIM Library
