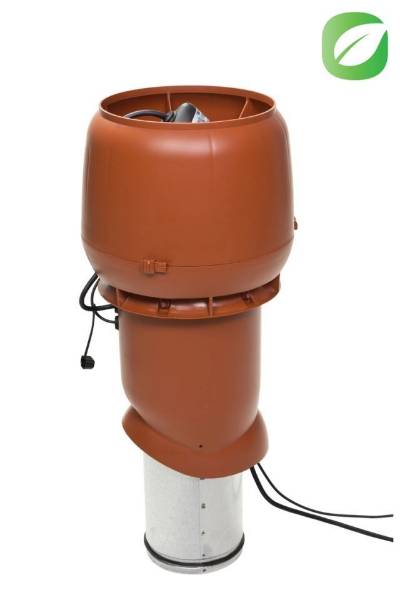

VILPE® ECo220P/Ø160/500 Roof Fan
Application

  • Suitable for use in kitchen or bathroom exhaust ventilation as part of the air conditioning systems of new apartment buildings and private and terraced houses. When refurbishing older apartment buildings and private and terraced houses, natural ventilation can be converted to mechanical by means of the VILPE® ECo roof fan.
  • Suitable for the ventilation of homes, offices, commercial premises, production facilities, public buildings and any other areas where fresh air is needed. In apartment buildings, ECo roof fans can be used for exhaust ventilation in lift shafts and other public areas.
  • VILPE® ECo is also used for base floor ventilation, radon exhaust ventilation, and exhaust ventilation in garages and storerooms.

Description

Energy-efficient insulated roof fan with a direct current (DC) motor, controlled with a 0–10 V voltage. The inner pipe is constructed from galvanized sheet metal and has a lip seal. A VILPE® ECo Controller and a VILPE® pass-through according to the roofing material are required separately.

The roof fan can also provide an output signal which can be used to monitor the motor’s rpm. This allows connecting ECo roof fans to an automatically controlled building technology system where they can be monitored and controlled with the system’s central processing unit (CPU).

The fan is based on the EC technology, i.e. an electronically commuted fan with a brushless DC motor. ECo roof fans address the challenge of reducing total energy consumption by saving energy, as the DC motor is much more effective than an alternating current (AC) motor. Calculations on the efficiency needed to move air show that a VILPE® ECo roof fan will save up to 40–60% of energy when compared to an AC roof fan, depending on the application.

VILPE® ECo roof fans meet the requirements of the ERP2015 directive.

Applications:

  • Suitable for use in kitchen or bathroom exhaust ventilation as part of the air conditioning systems of new apartment buildings and private and terraced houses. When refurbishing older apartment buildings and private and terraced houses, natural ventilation can be converted to mechanical by means of the VILPE® ECo roof fan.
  • Suitable for the ventilation of homes, offices, commercial premises, production facilities, public buildings and any other areas where fresh air is needed. In apartment buildings, ECo roof fans can be used for exhaust ventilation in lift shafts and other public areas.
  • VILPE® ECo is also used for base floor ventilation, radon exhaust ventilation, and exhaust ventilation in garages and storerooms.

General information

Material

Expanded polystyrene, galvanized sheet steel and polypropylene (PP) plastic

Size

Duct diameter: 160 mm

External diameter: 225 mm

Height above roof: 500 mm (approximate)

Uniclass 2015

Pr_65_67_29_72 Roof-mounted fansPrimary

CAWS

H30/10 Fibre cement

H30/110 Fibre cement

H30/120 Fibre cement

H31/10 Metal

H31/110 Metal

H31/120 Metal

H32/110 GRP

H32/111 PVC-U

H32/115 Polycarbonate

H32/120 Plastics

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H60/105 Clay roof tiling

H60/110 Clay roof tiling with counterbattens

H60/120 Concrete roof tiling

H60/125 Concrete roof tiling with counterbattens

H60/3 Roof tiling

H60/5 Roof tiling with counterbattens

H61/105 Roof slating

H61/110 Roof slating with counterbattens

H61/3 Roof slating

H61/5 Roof slating

H62/105 Roof slating

H62/110 Roof slating with counterbattens

H62/125 Roof slating

H62/130 Roof slating with counterbattens

H62/145 Roof slating

H62/150 Roof slating with counterbattens

H62/3 Roof slating

H62/5 Roof slating with counterbattens

H64/10 Wood shingle/ shake roofing with counterbattens

H64/110 Wood shingle/ shake roofing

H64/120 Wood shingle/ shake roofing with counterbattens

H64/5 Wood shingle/ shake roofing

H65/10 Reconstituted slate roof tiling with counterbattens

H65/105 Clay roof tiling

H65/110 Clay roof tiling with counterbattens

H65/115 Concrete roof tiling

H65/120 Concrete roof tiling with counterbattens

H65/125 Reconstituted slate roof tiling

H65/130 Reconstituted slate roof tiling with counterbattens

H65/135 Ceramic slate roof tiling

H65/140 Ceramic slate roof tiling with counterbattens

H65/3 Roof tiling

H65/5 Roof tiling with counterbattens

H65/8 Reconstituted slate roof tiling

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

U90/413 Ventilation fan units

U90/42 Ventilation fan units

Specification data - Roof-mounted fans

Product Reference

VILPE® ECo220P/Ø160/500 Roof Fan

Colour

Black - RAL9005

Brick Red - RAL8004

Brown - RAL8019

Green - RAL6020

Grey - RAL7015

Light Grey - RAL7040

Red - RAL3009

Accessories

None

VILPE® ECo Controller

VILPE® Pass-Through

Insert requirement.

Standard product features

Size:

  • Duct diameter: 160 mm.
  • External diameter: 225 mm.
  • Height above roof: 500 mm (approximate).

Material:

Expanded polystyrene, galvanized sheet steel and polypropylene (PP) plastic.

Technical characteristics:

  • Current: 0.7 A.
  • Fan type: DC.
  • Power: 85 W.
  • Rotation speed: 2580 rpm.
  • Voltage: 230 V/ 50 Hz.
  • Energy efficiency rating: E.
