Application

Suitable for a range of internal cleanroom applications in new build and refurbishment projects, including:

  • Pharmaceutical and bio-technology laboratories.
  • Healthcare.
  • Medical research.
  • Advanced technology facilities.

Description

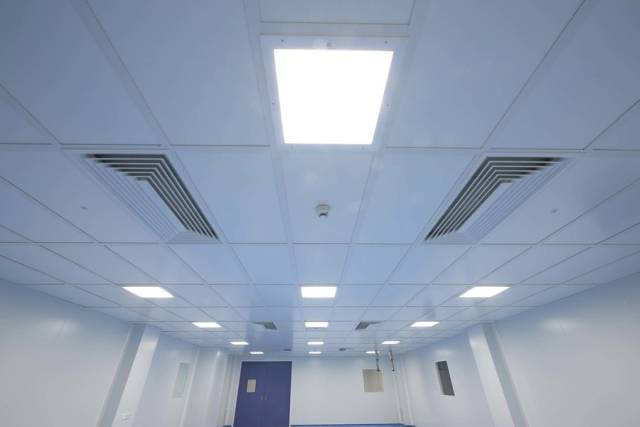

Semi-flush suspended ceiling system using T-Hanger solution for cleanrooms. The modular design allows truly bespoke cleanroom construction, to enable the highest levels of hygiene and contamination safety.

UltraTech systems are composed of high performance insulated panels featuring a flat, non-porous surface to both sides which aids cleaning and offers high levels of resistance to mould, moisture ingress and bacterial growth, ensuring a controlled, sterile environment that minimizes airborne particles and micro-organisms.

Features and benefits:

  • Can accommodate the flush integration of cleanroom fittings such as lighting systems, supply and return air housings, and smaller ceiling mounted services.
  • Designed and classified as ceilings accessible for installation, occasional inspection and maintenance, minor repair only.
  • Ceiling panels are available in a selection of core options.
  • All panels include a nominal gap of 2–4 mm for silicone seal.
  • Compatible with both UltraTech Versatile (semi-flush) and Precision (flush) partition panel systems. A range of co-ordinating single and double doors, windows, light fixtures and accessories is available for a fully integrated, bespoke cleanroom solution - consult manufacturer for details.
  • Fully recyclable at end of life (through conventional shredder plants).
  • Global warming potential (GWP): Low, with zero ozone depletion potential (ODP).

- To note:

  • Not designed for material storage.
  • Heavier building services such as air ducts, HEPA housings, piping and cable trays should not be supported from the ceiling suspension system.
  • The manufacturer recommends that a separate walkway zone should be installed for highly trafficked areas of the walk-on ceiling during and after installation.

Consult manufacturer for further information.

Panel core:

- ECOsafe polyisocyanurate (PIR):

  • Insulation core: Features an environmentally sustainable closed-cell PIR insulation core which is non-deleterious with zero ozone depletion potential (zero ODP).
  • Biological: Resistant to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the manufacture of the panels. Panels can incorporate project-specific HYGIENEsafe, wash and clean down facings.
  • Panel joint: Engineered joint which achieves excellent air leakage, thermal and structural performance. The panel side joint can accommodate vapour, hygiene and fire rated seals and can be silicone sealed for regulatory compliance.

- Mineral fibre (MF):

  • Insulation: Features a mineral wool insulation core, 50C and 50F, consisting of vertically-oriented fibres. As a result of this orientation, the panels provide excellent mechanical properties (high tensile and compression strength).
  • Biological: Resistant to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the manufacture of the panels. Can incorporate project-specific HYGIENEsafe, wash and clean down facings.
  • Panel joint: Features a symmetric tongue and groove connection with excellent thermal and structural performance.

- QuadCore™:

  • Biological: Normally resistant to attack from mould, fungi, mildew and vermin. No urea formaldehyde is used in the manufacture of the panels. Panels can incorporate project-specific HYGIENEsafe, wash and clean down facings.
  • Panel joint: Engineered joint which achieves excellent air leakage, thermal and structural performance. The panel side joint can accommodate vapour, hygiene and fire rated seals and can be silicone sealed for regulatory compliance.

Applications:

Suitable for a range of internal cleanroom applications in new build and refurbishment projects, including:

  • Pharmaceutical and bio-technology laboratories.
  • Healthcare.
  • Medical research.
  • Advanced technology facilities.

Accreditations:

  • Compliant with cGMP and ISO 14644 Cleanrooms and Associated Controlled Environments standards.
  • Fully complies with the appropriate National Building Regulations.
  • LPCB certified to LPS 1208: FR30 and FR60 - Walls and Ceilings (depending on the panel choice).
  • Compliant with ISO 9001 (Quality), ISO 14001 (Environmental) and OHSAS 18001 (Health and Safety).
  • May be Green Guide A+ rating as per the BRE Global Green Guide to Specification, subject to project specific assessment.

General information
Specification data - Unit/ modular suspended ceiling systems
Product Reference

UltraTech Precision Ceiling System

Panel -
Core

ECOsafe polyisocyanurate (PIR)

Mineral fibre (MF)

QuadCore™

Thickness

50 mm

60 mm

80 mm

100 mm

125 mm

150 mm

175 mm

200 mm

220 mm

Panel size -
Length

See 'Options' for details and insert requirements.

Width

Standard

ECOsafe PIR/ QuadCore™: 1100 mm; Mineral fibre: 1170 mm.

Bespoke

Insert requirements.

Coating -
Type

As partition panel system

Not required

Kingspan CLEANsafe 25

Kingspan CLEANsafe 55

Kingspan CLEANsafe 120

Kingspan CLEANsafe 316

Kingspan HYGIENEsafe

Colour

Not required

Kingspan CLEANsafe 316/ Kingspan HYGIENEsafe.

RAL 9002

RAL 9010

Bespoke

Consult manufacturer and insert requirements.

Coving -
Type

Not required

Refer to partition panel system specification

Aluminium, 40 mm radius

Aluminium, 45 mm radius

Polyvinyl chloride (PVC), 55 mm radius

Colour

RAL 9002

RAL 9010

Coating

Not required

HYGIENEsafe anti-bacterial coating

Not available for PVC coving.

Lighting

Not required

EVEREST luminaire

SAFESTEP luminaire

SENATOR luminaire

Product Options

Panel:

- Size:

Length:

  • ECOsafe PIR: 1.2–9.2 m.
  • Mineral fibre/ QuadCore™: 1.2–19.5 m.

- Weight:

  • Mineral fibre: Consult manufacturer's literature for details.
  • ECOsafe PIR/ QuadCore™ (0.63/ 0.63 steel, 80 mm-thick panel): 14.06 kg/m².

- Substrate:

- ECOsafe PIR/ QuadCore™:

  • Hot dipped S220GD + Za zinc / aluminium coated metal to EN 10326 (continuously hot-dip coated strip and sheet of structural steels, technical delivery conditions).
  • Metallic protected steel to BS EN 10346:2009.
  • Nominal thickness: Interior/ exterior 0.5 mm or 0.63 mm.

- Fire performance:

Consult manufacturer's literature for details.

- Thermal conductivity (80 mm-thick panel):

  • ECOsafe PIR: 0.0195 W/m·K.
  • Mineral fibre: 0.041 W/m·K.
  • QuadCore™: 0.018 W/m·K.

- Thermal transmittance (U-value)/ thermal resistance (R-value):

Consult manufacturer's literature for details.

- Acoustic performance:

Consult manufacturer's literature for sound reduction index (SRI) details.

  • Mineral fibre panels have a predicted single figure weighted sound reduction Rw = 29 dB.
  • ECOsafe PIR/ QuadCore™ panels have a predicted single figure weighted sound reduction Rw = 24 dB.

- Airtightness (at 50 Pa in accordance with EN 14509):

ECOsafe PIR/ QuadCore™ panels: 0.02 m³/hr/m².

- Watertightness (according to EN 14509):

All panels are watertight to 1050 Pa (Class B).

Coating:

- Kingspan CLEANsafe 25:

Polyester coating suitable for moderately aggressive internal environments, providing good chemical and humidity corrosion resistance.

  • Polyester coating thickness: 25 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).

- Kingspan CLEANsafe 55:

Chemically inert colaminated polyethylene terephthalate (PET) film and polyester (PE) paint, applied to pre-treated metal, suitable for humid and chemically aggressive internal environments.

  • PET film thickness: 55 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).
  • Tested by STERIS Corporation Life Sciences for compatibility (see below for details).

- Kingspan CLEANsafe 120:

Chemically inert polyvinyl chloride (PVC) film, laminated to pre-treated metal, suitable for internal for controlled environments. Joints between panels can be either caulked or chemically cold-welded. Tested by STERIS Corporation Life Sciences for compatibility.

- Kingspan CLEANsafe 316:

Cold rolled annealed austenitic stainless steel, suitable for corrosive internal environments.

  • Material: Mill finish stainless steel, grade 316.
  • Finish: 2B (smooth, unpolished).
  • Nominal thickness: 0.63 mm.
  • Protection film: Yes (standard).

- Kingspan HYGIENEsafe:

Chemically inert, antibacterial coating. A rigid polyvinyl chloride (PVC) phthalate-free coating applied to pre-treated metal and suitable for humid and chemically aggressive internal environments.

  • PVC rigid film thickness: 120 μm.
  • Nominal thickness: 0.63 mm (including coating).
  • Protection film: Yes (standard).

Compatibility with STERIS products:

Selected Kingspan panel coatings (see above) have been tested by STERIS Corporation Life Sciences for compatibility. A range of STERIS cleaning agents commonly used in the pharmaceutical industry were selected and no adverse reactions with the Kingspan panel coating were reported. The range of cleaning agents used in the tests were:

  • DI Water.
  • Environ™ LpH™ Phenolic disinfectant.
  • Environ™ Vesphene™ disinfectant.
  • Septihol® Sterile Alcohol Solution.
  • Spor-Klenz® RTU cold Sterilant.
  • Vesta-Syde® SQ Quaternary disinfectant.
  • Contact manufacturer's technical department for details.

Coving:

- Aluminium:

  • Aluminium alloy internal corner coving profiles allow for a silicone seal finish. Aluminium pre-coving is screw fixed to the cleanroom ceiling and wall panels. The powder coated finished coving is then clipped into the pre-coving.
  • Coving profiles interface with internal three-way corner profile.

- PVC:

  • Internal corner coving has been designed to be fixed to a three-way corner profile and to interface with 55 mm PVC or 45 mm radius aluminium coving profiles.
  • PVC covings have soft edges at the wall panel junction.

Lighting:

Consult manufacturer's literature for full details.

  • EVEREST luminaire: Designed specifically for walk-on ceilings, facilitates lamp change from above whilst maintaining the integrity of the cleanroom.
  • SAFESTEP luminaire: Designed to integrate seamlessly into composite panel ceilings and provides walk-on protection.
  • SENATOR luminaire: A surfaced mounted luminaire with a low profile design and chamfered edges for minimum disturbance to airflow within the cleanroom.
