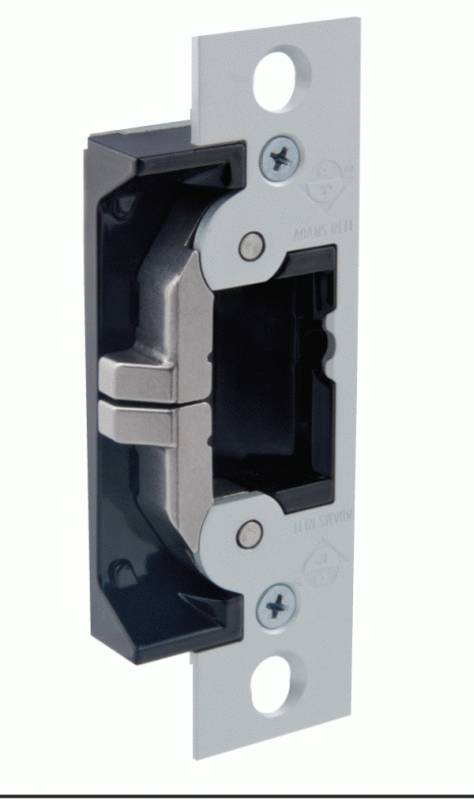

Ultraline Premium Electric Strike 7440

Description

The ULTRALINE premium electric strike range has features that are unmatched in the industry. The innovative and compact robust stainless steel split-jaw design maintains the high level of security expected from Adams Rite while enabling release electrically with over 15 kg of sideload pressure.

Benefits:

  • Monitoring option.
  • Opens electrically with over 15 kg of sideload pressure.
  • Suitable for use on steel doors.
  • 1080 kg holding force.
  • Single solenoid operates at 12/24 V AC/DC.
  • Field selectable fail safe or fail secure on strike body.
  • Duty: Fail safe or fail secure selectable on strike body.
  • Adjustable jaw.
  • Low current draw.
  • Retrofits 7140 Adams Rite strikes.
  • Tested to 500,000 cycles.
  • Three years warranty.
  • Requires half the force to open compared with 7100, aiding compliance with Building Regulations (E&W) Approved Document M requirements.

General information

Specification data - Electric strikes and faceplates

Product Reference

7440-628

ULTRALINE Electric strike 12/24 V AC/DC steel door SAA.

7440M628

ULTRALINE Electric strike 12/24 V AC/DC monitored steel door SAA.

7440M335

ULTRALINE Electric strike 12/24 V AC/DC monitored black.

7440M313

ULTRALINE Electric strike 12/24 V AC/DC monitored dark bronze.

WDC7400

ULTRALINE 7400 door cover to suit 44.45 mm thick door.

LEK7400-04

Sub cover extension, to suit 47.8 mm thick doors.

LEK7400-05

Sub cover extension, to suit 50.8 mm thick doors.

LEK7400-06

Sub cover extension, to suit 54.1 mm thick doors.

LEK7400-07

Sub cover extension, to suit 57.2 mm thick doors.

LEK7400-08

Sub cover extension, to suit 60.5 mm thick doors.

Face plate finish

628 Satin anodized

335 Black anodized

313 Dark bronze anodized

Standard product features

General:

  • Case: Zinc aluminium alloy.
  • Mechanism: Stainless steel.
  • Faceplate: Flat aluminium.

Standards:

ANSI/BHMA 156.5 Grade 1 UL listed for burglary resistance.
