ULTRA Tile

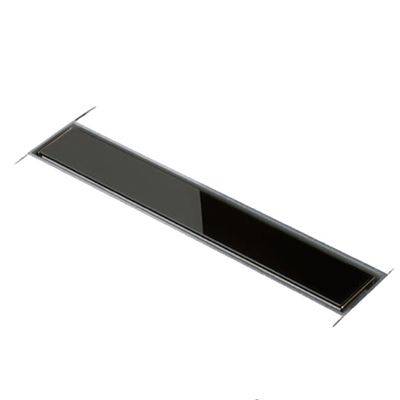

Linear floor drain.
Shower channel floor drains are wide collection vessels used within the floor of wet room showers and are offered in various lengths. Suitable for:
- Floor structures designed especially for suspended timber (joist) and other common floor structures, and also suits low build in height screeds in concrete floors.
- All showers; specifically, where tile/ stone are inset into grate, to produce very discrete installation.
- En-suites; small bathrooms where space efficiency is at a premium.
- High end designer bathrooms which adds to the feeling of space within a bathroom or shower area.
- Refurbishments and new build projects.
The ULTRA Tile linear floor drain range has a build in height of only 92 mm and trap with a 50 mm deep water seal. Ideal for UK timber floor structures, it is easy to install and has a height adjustable tile insert grate. The flexible shower drain also offers a factory fit waterproofing membrane, excellent flow rates and is available in a wide range of sizes.
Package includes:
- Chassis with welded stainless steel foul air trap, fixed horizontal outlet connection (DN 50 mm).
- Connection adaptor.
- Waterproof sealing gasket fitted on all four sides to flanges.
- Installation feet (concrete floors) and earthing tag.
- Cover grate with height adjustable feet.
Features and benefits:
- Low profile linear floor drain with a minimum 92 mm build-in height.
- Grate can be adjusted to match surrounding floor height, and accommodate tile or natural stone insert.
- Supplied with a (full UK regulation) 50 mm deep water seal, the outlet exits from front of welded foul air trap.
- High quality 1.4301 (304) grade stainless steel which offers reliable resistance to chemical attack.
- Surrounding flange helps to support the 18 mm deep chassis into timber floors and secures the sealing collar.
- Includes factory fit waterproof collar fitted to surrounding flange, that when combined with additional tanking membranes seals drain to the floor structure, creating permanent barrier to water ingress.
- Also supplied with levelling feet/ fixing brackets for concrete floors.
Applications:
Shower channel floor drains are wide collection vessels used within the floor of wet room showers and are offered in various lengths. Suitable for:
- Floor structures designed especially for suspended timber (joist) and other common floor structures, and also suits low build in height screeds in concrete floors.
- All showers; specifically, where tile/ stone are inset into grate, to produce very discrete installation.
- En-suites; small bathrooms where space efficiency is at a premium.
- High end designer bathrooms which adds to the feeling of space within a bathroom or shower area.
- Refurbishments and new build projects.
Uniclass 2015 | |
CAWS | R11/310 Floor channels R11/315 Floor drains R11/5 Floor drains |
Product Reference | ULTRA Tile 500 mm, KD008 00550ULTRA Tile 600 mm, KD008 00551ULTRA Tile 700 mm, KD008 00552ULTRA Tile 800 mm, KD008 00553ULTRA Tile 900 mm, KD008 00554ULTRA Tile 1000 mm, KD008 00555ULTRA Tile 1100 mm, KD008 00556ULTRA Tile 1200 mm, KD008 00557ULTRA Tile 1300 mm, KD008 00558ULTRA Tile 1400 mm, KD008 00559ULTRA Tile 1500 mm, KD008 00560ULTRA Tile 1600 mm, KD008 00561ULTRA Tile 1700 mm, KD008 00562ULTRA Tile 1800 mm, KD008 00563ULTRA Tile 1900 mm, KD008 00564ULTRA Tile 2000 mm, KD008 00565 |
Standard product features | Technical characteristics:
|
