Type T Round

Application

Suitable for use in hotel facilities, food service areas and the private sector.

Description

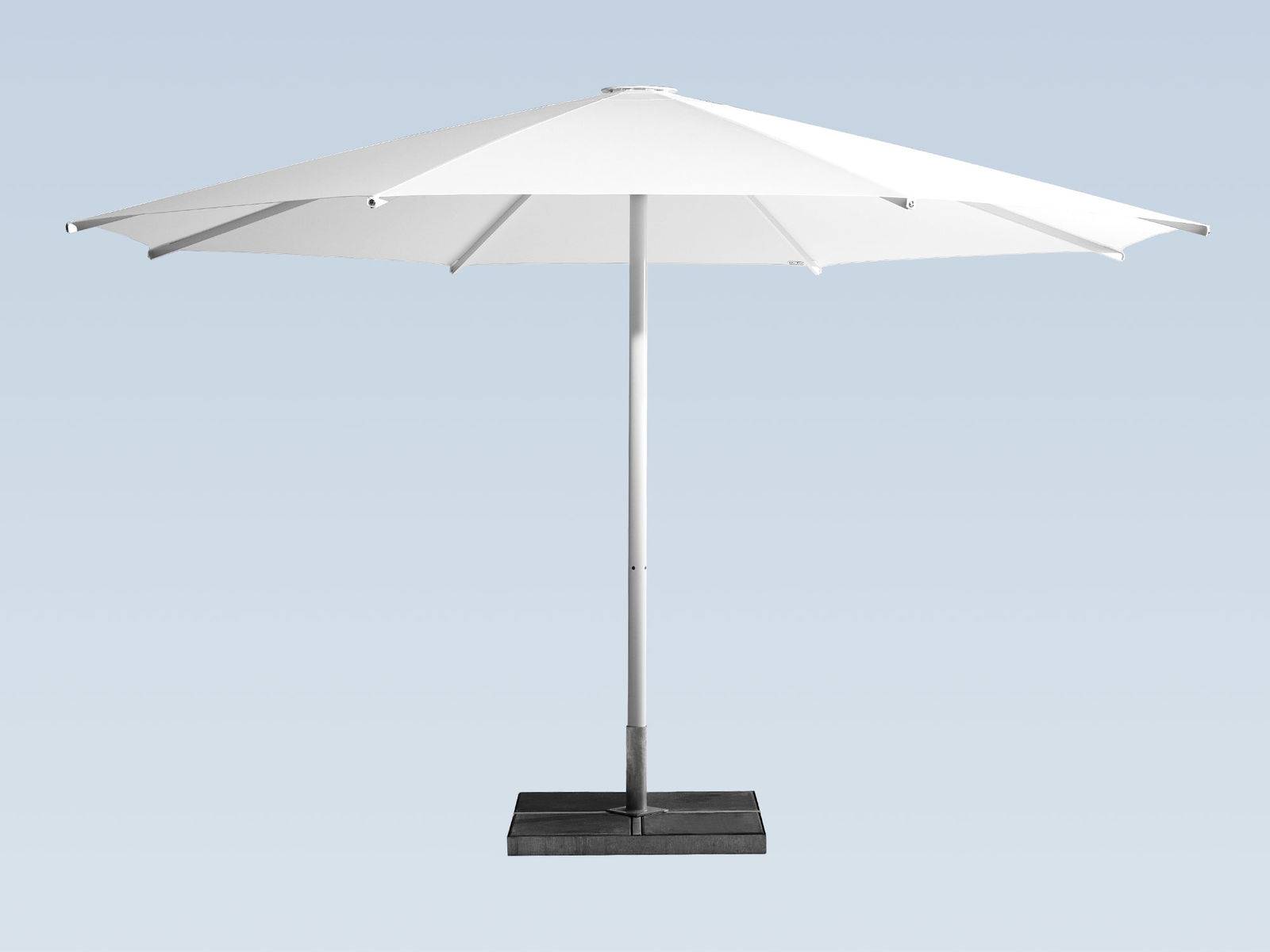

Round telescope umbrella parasol.

Features and benefits:

  • Does not appear overloaded when combined with accessories such as LED lamps, sound and heating.
  • The expansion mechanism is manufactured from aluminium, and is therefore thinner than standard models, providing a minimalist appearance.
  • Roofing sheets are fade, light and water resistant.
  • All materials are water and corrosion-resistant, and fixing screws are rust-resistant.
  • All components are replaceable.
  • Cabling is housed within the central mast.

Applications:

Suitable for use in hotel facilities, food service areas and the private sector.

General information

Color

Various (dependent on covering)

Features

Good wind resistance, simple installation, telescopic pole

Finish

Polyester powder-coated (PPC) 80 μm

Material

Aluminium frame, polyester or acrylic roof covering

Shape

Round

Size

6000 x 4500 mm

5000 x 4050 mm

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary

CAWS

B91/385 Shelter

Specification data - Open sided shelters

Product Reference

Type T Round 5 m Diameter

Height: Closed: 4050 mm, open: 3100 mm.

Type T Round 6 m Diameter

Height: Closed: 4500 mm, open: 3400 mm.

Shelter description

Rectangular with telescope umbrella

Dimensions

-

Plan size

As product reference

Height

As product reference

Frame

-

FrameMaterial

Aluminium

Frame finish

Polyester powder-coated (PPC) 80 μm

Colour

Black RAL 9005

Silver RAL 9006

White RAL 9010

Standard.

Roof covering

MDT-tex® 260 FR (polyester)

MDT-tex® 300 (acrylic)

Openings

-

Doors

Can be integrated if cloth walls are specified, consult manufacturer.

Windows

Can be integrated if cloth walls are specified, consult manufacturer.

Integral services

Not required

Lighting

Rainwater drainage

Not required

Rain gutter to connect adjoining umbrellas

Accessories

Not required

Cloth side walls (with integrated windows/ doors as specified)

Event platform

Heaters

MDT Flex-Bar

Mobile ground flooring

Protective sleeve with telescopic pole

Speakers

Transport case

Valances

Wind walls

Roof covering colour options

Various (dependent on covering). Consult manufacturer.

Wind resistance

Up to 60 km/h

Printing options

Not required

Digital

Dispersion dye

Screen

Spokes construction

Square aluminium bars of 40 x 20 x 2 mm–50 x 20 x 3 mm

Construction

Aluminium profile

Distance (spokes to ground)

5 m Diameter: 2400 mm; 6 m Diameter: 2600 mm

Anchoring

Frame base (with concrete blocks)

In ground tube with adapter

Not available with 6 m Diameter.

In ground tube with foldable adapter

Operation

Hand crank

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library
