Application

Suitable for standard doors, including fire and smoke check doors, up to 1100 mm wide.

Description

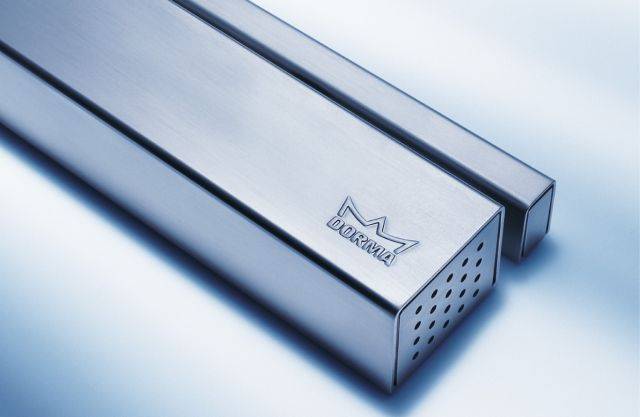

Small, surface mounted, cam-action door closer.


Features and benefits:

  • Non-handed. Can be door or frame/ transom mounted.
  • Closing force variable between EN 2 and EN 4.
  • Infinitely adjustable closing speed in the range 150°–0°.
  • Infinitely adjustable latching action in the range 7°–0°.
  • Integral dead stop unit provides progressive damping and helps to prevent a normally opened door from colliding with the adjacent wall.

General information

Color

White

Silver

Manufacturer guidance

Special colours also available.

Finish

Polished brass

Guidance for specification option:

'Design' finishes are mock metallic surface coatings.

Anodized

Stainless steel

Guidance for specification option:

'Design' finishes are mock metallic surface coatings.

Size

340 x 37 x 49 mm

Uniclass

Pr_30_36_59_15 Controlled door closersPrimary

CAWS

P21/12 Overhead door closers

P21/410 Overhead door closers

Product range

Door Controls / Cam-Action Closers

Specification data - Controlled door closers

Materials and finishes

-

Colour

Polished brass 'design'.

Guidance for specification option:

'Design' finishes are mock metallic surface coatings.

Silver anodized.

Stainless steel 'design'.

Guidance for specification option:

'Design' finishes are mock metallic surface coatings.

White.

Guidance for specification option:

Similar to RAL 9016.

Accessories

None.

Mechanical hold-open device.

Guidance for specification option:

Enables doors to be held, without fallback, at an opening angle up to approximately 120°. Not suitable for fire and smoke check doors.

Dimensions

340 x 37 x 49 mm.

Literature

DORMA TS 97 Cam Action Door Closer

DORMA TS 97 Cam Action Door Closer
