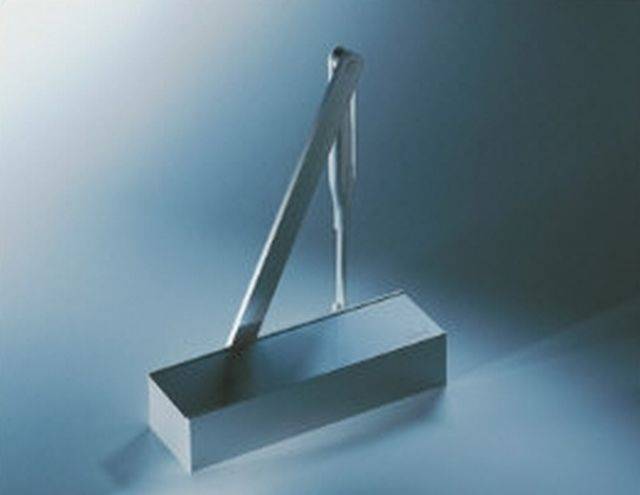

TS 71 door closer

Third party certifications:

Certifire Certificate
Certificate type

Surface-mounted, rack-and-pinion door closer for internal doors; adjustable closing force.

Jump to:

Description

Surface-mounted, rack-and-pinion door closer from Classic Line series, providing an economical solution for standard doors up to 1100 mm wide, including fire doors.

Features:

Non-handed design.

Reliable closing with adjustable latching action (by arm). Closing speed adjustable in the ranges 180°–15° and 15°–0°.

Two closing force settings: EN 3 for doors up to 950 mm wide; EN 4 for doors up to 1100 mm wide. Closing force (spring strength) easily adapted by turning round the hinge plate.

Mounting configurations:

Pull-side, door leaf fixing.

Push-side, transom fixing.

Push-side, parallel arm fixing (requires parallel arm bracket).

Dimensions:

232 mm long x 45 mm deep x 245 mm high.

CE Marked.

General information

Finish	Colour coated See options. Gold Standard format only. Polished brass Full softline or full square covers. Polished chrome Full softline or full square covers. Satin stainless steel Full softline or full square covers. Silver Standard, full softline or full square covers. Show more
Features	Non-handed design Reliable closing with adjustable latching action (by arm). Closing speed adjustable in the ranges 180°–15° and 15°–0° Two closing force settings: EN 3 for doors up to 950 mm wide; EN 4 for doors up to 1100 mm wide. Closing force (spring strength) easily adapted by turning round the hinge plate
Uniclass 2015	Pr_30_36_59_15 Controlled door closersPrimary
CAWS	P21/12 Overhead door closers P21/410 Overhead door closers

Specification data - Controlled door closers

Product Reference	TS 71
Cover profile	Full softline Full square Standard
Finish	Colour coated See options. Gold Standard format only. Polished brass Full softline or full square covers. Polished chrome Full softline or full square covers. Satin stainless steel Full softline or full square covers. Silver Standard, full softline or full square covers.
Accessories	Hold-open arm Mounting backplate Parallel arm bracket

Standard product features

Independent testing:

Successful independent testing to BS EN 1154.

Product Options

Finish:

Standard colour coated finishes: Coffee Brown, Pure White, Buttercup, Yellow, Ruby Red, Burgundy, Ultra Marine Blue, Steel Blue, Forest Green, Meadow Green, Jet Black, Anthracite, Grey, Stone Grey, Light Grey.
