Description

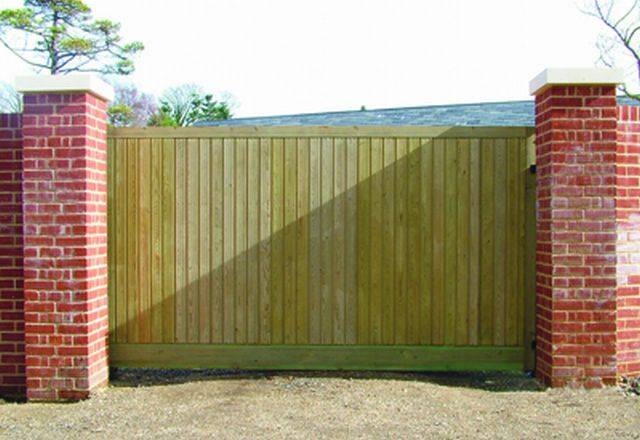

Similar to the standard courtyard gates with the main difference being they are sliding gates and are automated as standard for ease of opening.

Features:

  • Galvanized fittings for extra long life.
  • Superior planed finish with tongue and groove style infill.
  • Two styles of gate; with or without a track.
  • Good for use when space is at a premium or rising ground prevents swing gate functioning.

Gates without a track:

Gate frame: 100 x 100 mm with a tongue and groove infill, 100 x 25 mm boards ‘V’ jointed clad both sides the gates are supported on one or two 150 mm square posts dependent on size and the gates slides on roller "Carriages" inside the formed running tube. The carriages are bolted to the concrete main foundation either as part of the support post(s) or directly to the foundation.

The top of the gate is supported on a channel through one pair of rollers. The gate closes into guides on a 150 mm² catch post.

The support posts and the catch post are fitted with base plates for bolting to foundations and are heavily galvanized to give a long life. The standard automation equipment supplied is a motor and controller, radio receiver and transmitters, and two pairs of photocells. Step by Step command for opening and closing not fully automated. For fully automated operation additional safety edges are required for gate to comply with Health and Safety Legislation.

Gates with a track:

Gate frame: 100 x 100 mm with a tongue and groove infill, 100 x 25 mm boards ‘V’ jointed clad on one side. The timber gate is fitted to a 200 x 100 mm hollow section fitted with two heavy duty wheels that run on a track that is set in concrete. One or two single support posts dependent on application and design.

General information
Size

As drawing ___

Features

Galvanized fittings for extra long life

Superior planed finish with tongue and groove style infill

Two styles of gate; with or without a track

Good for use when space is at a premium or rising ground prevents swing gate functioning

Uniclass 2015
Hardwood gate leaves (Pr_30_59_33_37)Primary
Specification data - Hardwood gate leaves
Product Reference

Timber Sliding Gates With Track

Timber Sliding Gates Without Track

Size

As drawing ___

Post finish

Black RAL 9005

Blue BS 20-C-40

Blue RAL 5010

Brown RAL 8017

Galvanized

Manufacturer's standard.

Green RAL 6005

Grey RAL 7012

Red RAL 3020

White RAL 9010

Yellow RAL 1018

Accessories

None

Safety edges

Product Options

Post finish:

Other RAL colours available at extra cost.
