Application

  • Suitable for all nominally flat roof constructions and coverings, e.g. single ply PVC, fibreglass, lead, copper, zinc and other standing seams and asphaltic material.
  • Suitable for green/ sedum roofs.

Description

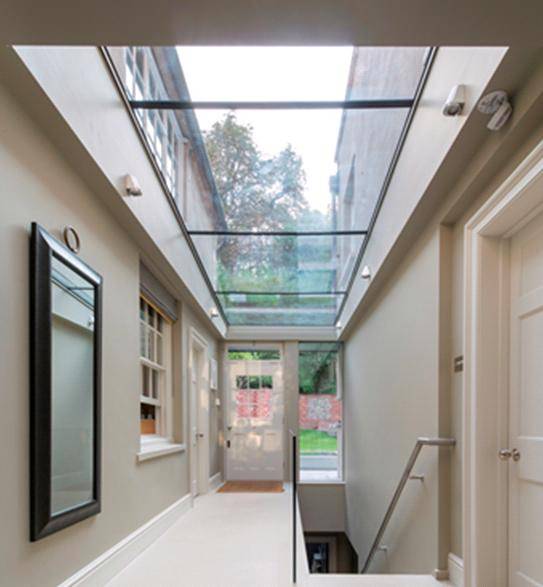

Frameless multi-panel rooflight.

Features:

  • Suitable for marine/ coastal environments.
  • Stainless steel concealed fixings.
  • Tested in accordance with the CWCT Standard.

Applications:

  • Suitable for all nominally flat roof constructions and coverings, e.g. single ply PVC, fibreglass, lead, copper, zinc and other standing seams and asphaltic material.
  • Suitable for green/ sedum roofs.

General information
Color

Ral 9010 Mat (Internal), Ral 7015 Mat (External)

Features

Fully Thermally Broken

Finish

Polyester Powder Coating

Material

Grade 6063-T6 Extruded Aluminium

Shape

Square

Size

1500 x 1500 mm

Uniclass 2015
Pr_30_59_72_31 Framed rooflightsPrimary
Specification data - Framed rooflights
Product Reference

VAGI Frameless Multi-Panel Rooflight

Design

As drawing

As schedule

Glazing

Manufacturer's standard

Special order

Insert requirement.

Frame -
FrameMaterial

Aluminium

Standard.

Special order

Insert requirement.

Frame finish

Anodized

Polyester powder coated

Standard, 60 microns (minimum).

Colour

Manufacturer's standard

Special order

Insert RAL or BS colour requirement.

Upstand

Supplied by others

Required

Standard product features

Warranty:

Glazing and powder coating: Ten years.

Product Options

Glazing:

  • Manufacturer's standard: 10 mm thick toughened outer, 16 mm thick warm edge spacer with 90% argon cavity and 12.8 mm thick toughened low-e inner. Glass centre pane U-value: 1.1 W/m²K.
  • Special order: Enhanced glazing specifications incorporating thermal, acoustic, security, light transmission, solar gain and decorative options are available, contact manufacturer for information.

Frame:

- Material:

Grade 6063-T6 extruded aluminium as standard. Different material specifications, stainless steel cladding, etc. are available, contact manufacturer for information.

- Colour (manufacturer's standard):

  • Internal: RAL 9010 matt.
  • External: RAL 7015 matt.

Seals:

  • Structural and weather seal: Low modulus silicone sealant.
  • EPDM: UV and water-resistant.

Upstand:

To suit an overall finished Upstand of 100 mm. Upstand by Vision AGI if required.

Air and water resistance:

1050 Pa.

Wind load resistance:

1.5 kN/m².

Digital objects
PlatformCompatibleVersionCertified to
IFC
 - 1 2.0
Revit
 Revit 2016 1 2.0
Download now from NBS National BIM Library
