System 2000 Horizontal Cavity Tray (Brick, Block and Stonework) for Refurbishment

System 2000 Horizontal Cavity Tray (Brick, Block and Stonework) for Refurbishment

Timloc Building Products Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

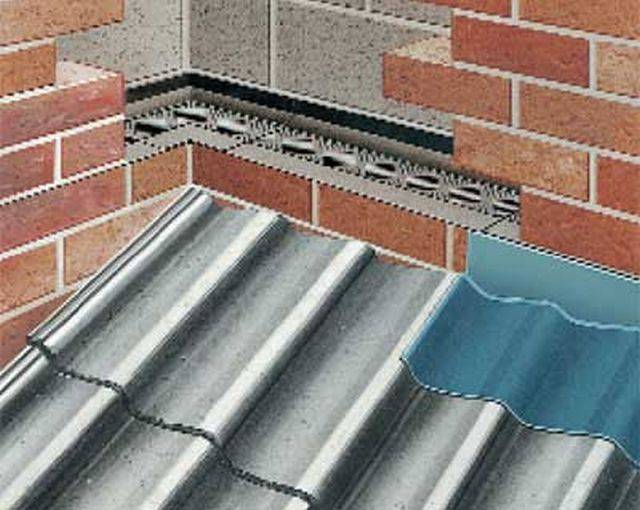

A horizontal cavity tray system for insertion within an existing masonry cavity wall.

Jump to:
+44 (0)1405 765567 www.timloc.co.uk

Description

System 2000E is a horizontal cavity tray system for insertion within the external leaf of existing masonry cavity walls. External leave thickness should not exceed 103 mm and be built of brick, stone or concrete blocks.

Features:

  • Project specification and scheduling service available.
  • Compact size and design allows insertion into an existing wall without ever having to remove more than three bricks at any one time.
  • Low profile lapped joint between sections allows for variations in brick size.
  • Angled section between cavity tray base and rear upstand automatically sheds water to the external leaf.
  • Cavity tray builds into the outer leaf only, so there is no need to disturb the inner leaf.

General information

Features

Project specification and scheduling service available

Compact size and design allows insertion into an existing wall without ever having to remove more than three bricks at any one time

Low profile lapped joint between sections allows for variations in brick size

Angled section between cavity tray base and rear upstand automatically sheds water to the external leaf

Cavity tray builds into the outer leaf only, so there is no need to disturb the inner leaf

Material

2 mm thick medium density polyethylene

Uniclass 2015

Pr_25_57_21_66 Preformed cavity traysPrimary

CAWS

F30/370 Preformed cavity trays

F30/56 Preformed cavity trays

Specification data - Preformed cavity trays

Product Reference

System 2000E Cavity Tray

Location

As shown on drawings

Cavity width

___ mm

Within range 50 mm to 125 mm.

Horizontal tray product code

2005E (50)

Length 460 mm, for 50 mm to 74 mm cavity.

2005E (75)

Length 460 mm, for 75 mm to 99 mm cavity.

2005E (100)

Length 460 mm, for 100 mm to 125 mm cavity.

External 90° Corner product code

Not required

2006E (50)

For 50 mm to 74 mm cavity.

2006E (75)

For 75 mm to 99 mm cavity.

2006E (100)

For 100 mm to 125 mm cavity.

Internal 90° Corner product code

Not required

2007E (50)

For 50 mm to 74 mm cavity.

2007E (75)

For 75 mm to 99 mm cavity.

2007E (100)

For 100 mm to 125 mm cavity.

Stopend, product code

2003

Right hand, for 50 to 125 mm cavity.

2004

Left hand, for 50 to 125 mm cavity.

Standard product features

External masonry leaf thickness:

103 mm.

Material:

2 mm thick medium density polyethylene.

Colour:

Black.

Overall length:

460 mm (440 mm effective length).

Third party certifications

  • Certificate number: 95/2937
