Shower Fan with LED Light And Timer - SY7688A

Verified by manufacturer 3 months ago

SY7688A - Natural White

Sycamore LED Variant:
Third party certifications:
  • Statement of compliance

    Certificate type

Shower fan kit.

Jump to:
+44 (0)113 286 6686 www.sycamoreled.com

Application

Bathrooms, En-suites, Wet rooms.

Description

The shower fan kit is a highly reliable fan in a modular design for ease of installation and maintenance. The inline fan is designed to provide extraction levels that comply with the latest building regulations.


The fan is manually operated by a remote switch (not included), and also features a timer control. The fan comes with a fixing bracket and is compact, attractively designed, and ductable over short lengths.

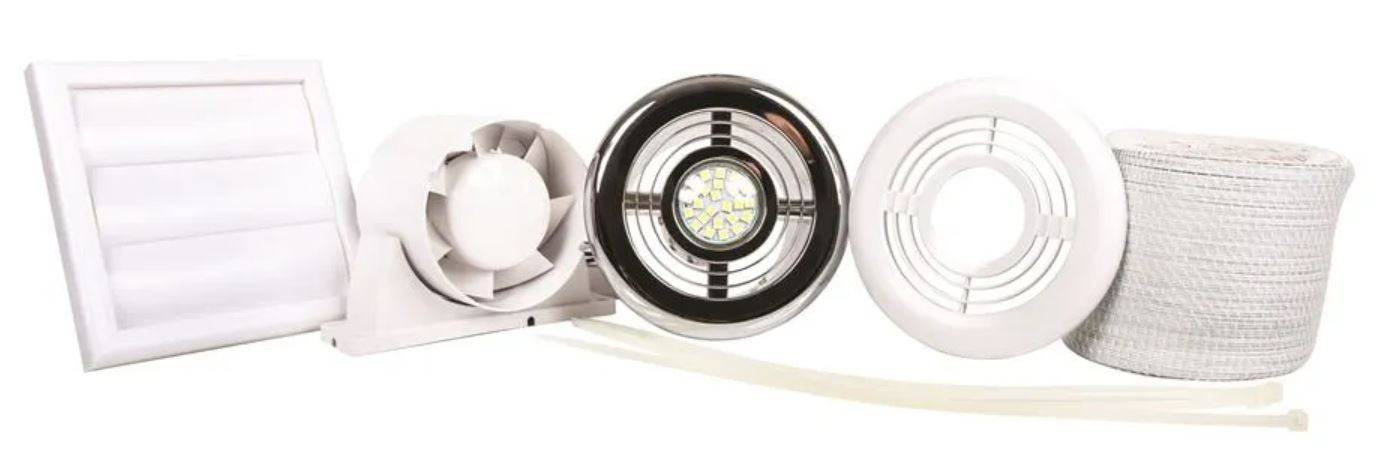

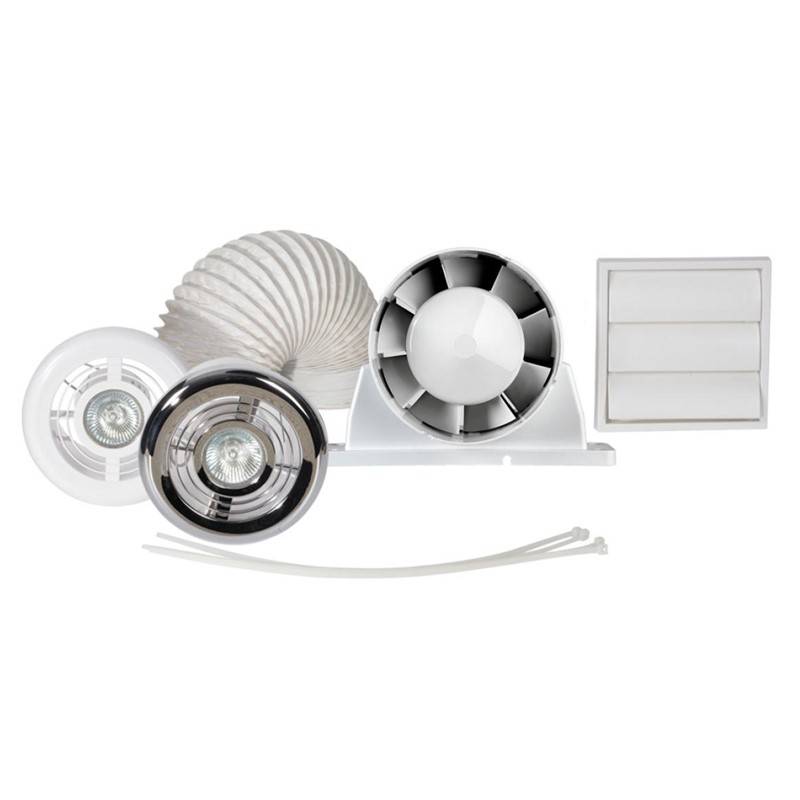

The kit contains the fan with timer, 3 m flexi duct, ties, LED lam in natural white, chrome and white grilles, and external grille.


Features and benefits:

  • Axial inline fan.
  • Ventilation up to 108 m³/hour.
  • Use for both supply and extraction.
  • Compact and quiet design.
  • Mounting bracket included.
  • Ductable.
  • IPX4 rated.

General information

Color

White

Material

Acrylonitrile butadiene styrene (ABS)

Length

110 mm

Width

160 mm

WarrantyDescription

Three year

Uniclass

Pr_65_67_29_23 Domestic fan unitsPrimary
Pr_65_67_29_05 Axial flow fans

CAWS

U90/413 Ventilation fan units

U90/413 Ventilation fan units

Specification data - Domestic fan units

Mounting

Ceiling.

Controls

Timer.

Noise

39 dB.

Ingress protection (IP) rating

IPX4.

Air flow

108 m³/hour (maximum).

Voltage

230 V (0.01 A, 16 W).

Dimensions

110 x 160 mm.

l x w.

Colour/ Finish

Natural White.

Environmental information

Contains Red List materials

No

Literature

SycamoreLED Bathroom Mirror & Lighting Collection

SycamoreLED Bathroom Mirror & Lighting Collection

Third party certifications

Statement of compliance

Statement of compliance

Declaration of Conformity - SY7688A
