Superglass Multi Purpose Acoustic Slab

Application

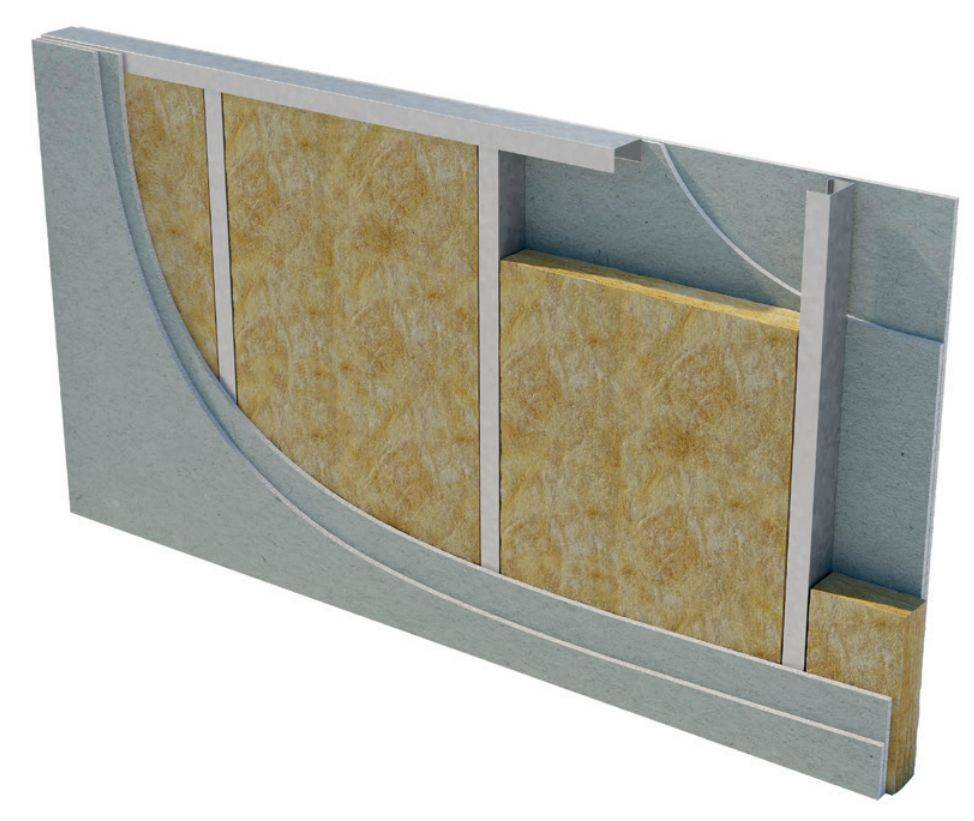

Designed to provide thermal and acoustic insulation in steel framing systems, timber and metal stud partitions, internal separating walls and floors and drylining systems.

Provides excellent sound absorption performance in accordance with Building Regulations Approved Document E (England & Wales) and Technical Handbook Section 5 (Scotland) acoustic requirements.

Description

A lightweight, non-combustible glass mineral wool insulation slab.


Features and benefits:

  • Supplied is 600 mm wide to allow easy installation between common stud spacings and minimum on-site cutting and waste.
  • Manufactured at a nominal density of 22 kg/m³.
  • Acoustic performance: Excellent sound absorption.
  • Thermal Performance: Provides excellent thermal performance with a declared thermal conductivity of 0.035 W/m·K.
  • Easy to fit: Suitable for 600 mm stud centres.
  • CE marked.
  • Fire performance: All Superglass products are deemed non-combustible and have a fire classification of A1 when tested to BS EN 13501-1 reaction to fire.
  • Environmental: Manufactured in accordance with ISO 14001:2015 environmental management systems. Zero ozone depletion potential and zero global warming potential: Chlorofluorocarbons (CFCs) and hydrochlorofluorocarbons (HCFCs) free.
  • Generic BRE green guide rating of A+.
  • Recycled content: Manufactured from up to 84% recycled glass, which would otherwise go to landfill.
  • Durability: Non-hygroscopic, will not rot, degrade or sustain vermin and will not encourage the growth of mould, bacteria or fungi.
  • Vapour resistance: Negligible vapour resistance, allowing vapour to pass freely through the insulation.

General information

Color

Yellow

Material

Glass mineral wool

Shape

Rectangular

Size

1200 x 600 x 50 mm

1200 x 600 x 60 mm

1200 x 600 x 75 mm

1200 x 600 x 100 mm

1200 x 600 x 150 mm

Uniclass 2015

Pr_80_77_76_53 Mineral wool duct slab insulationPrimary

CAWS

B15/130 Light gauge steel frame

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/145 Wall lining system (metal studs)

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/215 Suspended ceiling system

K10/220 Proprietary suspended ceiling system

K10/30 Metal stud

K10/35 Wall lining system (metal framing)

K10/50 Suspended ceiling system on metal framing

K11/115 Battened plywood floating floor

K11/125 Battened particleboard floating floor

K11/135 Battened oriented strand board floating floor

K11/145 Battened cement-bonded particleboard floating floor

K11/20 Battened particleboard floating floor

K11/215 Plywood floating floor

K11/225 Particleboard floating floor

K11/235 Oriented strand board floating floor

K11/245 Cement bonded particleboard floating floor

K11/25 Particleboard floating floor

K11/275 Acoustic separating floor system

K13/160 Proprietary

K13/170 Acoustic panel lining

K20/150 Battened timber board floating floor

K20/20 Battened timber board floating floor

K21/10 Wood laminate flooring

K21/111 Wood floating floor

K21/115 Wood laminate flooring

K21/120 Battened wood flooring

K21/130 Battened wood floating floor

K21/140 Battened wood laminate flooring

K21/145 Composite laminate flooring

K21/20 Composite laminated flooring

P10/190 Insulation fitted between studs

P10/217 Insulation slabs fixed to backing wall

P10/220 Sound insulation within timber framed separating wall

P10/240 Insulation fitted between floor joists

P10/40 Insulation fitted betweenor to the face ofstuds

P10/42 Mineral wool insulation slabs fixed to backing wall

P10/45 Insulation laid between floor joists

P10/50 Insulation supported between joists

Specification data - Mineral wool duct slab insulation Enhanced data

Standard

Manufactured in accordance with:

  • BS EN 13162:2012 (+A1:2015) thermal insulation products for buildings factory made mineral wool (MW) products.
  • BS EN 13172:2012 thermal insulation products evaluation of conformity.
  • BS EN ISO 9001:2015 quality management systems (QMS).

To BS EN 13162:2012 (+A1:2015).

Form

Glass mineral wool flexible slab.

Recycled content

Up to 84%.

Manufactured from up to 84% recycled glass, which would otherwise go to landfill.

Thermal conductivity

0.035 W/m·K.

Finish

Plain.

Reaction to fire classification

Reaction to fire classification of A1, as defined in BS EN 13501-1.

All Superglass products are deemed non-combustible and have a fire classification of A1 when tested to BS EN 13501-1 reaction to fire.

Insulation thickness (minimum)

Length: 1200 mm.

Width: 600 mm.

50 mm.

R-value: 1.40 m²K/W.

60 mm.

R-value: 1.70 m²K/W.

75 mm.

R-value: 2.10 m²K/W.

100 mm.

R-value: 2.85 m²K/W.

150 mm.

R-value: 4.25 m²K/W.

Product Reference

Multi Purpose Acoustic Slab

Environmental information

Recycled content

84

Manufactured from up to 84% recycled glass, which would otherwise go to landfill.

Literature

Superglass Multi Purpose Acoustic Slab - Datasheet

Superglass Multi Purpose Acoustic Slab - Datasheet

Insulation Solutions Guide

Insulation Solutions Guide

Third party certifications

  • CE Marked: BS EN 13162:2012 (+A1:2015)
