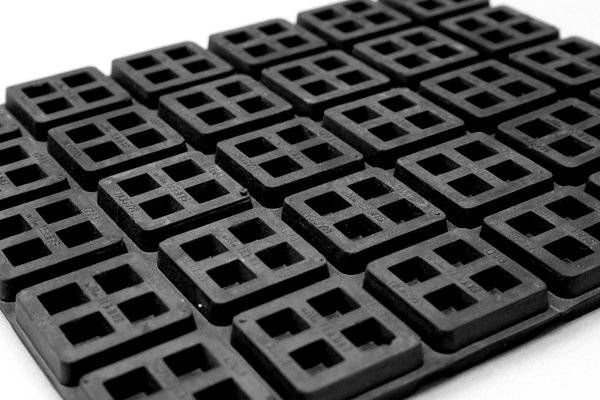

Super W (Waffle) Anti-vibration Rubber Pad available in a variety of load capacities and sizes.
Super W pads feature unique waffle pockets which allow for greater deformation of the material, providing excellent isolation performance. Super W anti-vibration pads can be supplied in multiple configurations to suit most situations. Super waffle pads can be supplied as sheets, single pads, and in stacks separated by steel plates. The amount of available deflection (and therefore acoustic isolation) increases in line with the height of rubber in the stack. The steel shims allow for load to be transferred evenly across the stack. Pad size = 20mm thick pads available in 50mm x 50mm or 75mm x 75mm sizes. 100mm x 100mm x 25mm pads are also available. Super W Pads are manufactured in Neoprene or L.D.S (Low Dynamic Stiffness) rubber. Sheet size = 450mm x 450mm. Nominal load for 40 durometer pad in natural rubber = 55 kg. The full load range is from 35kg up to 653kg per pad.
Molded in natural rubber, standard neoprene, bridge-bearing neoprene
20 x 75 x 75 mm
10 x 50 x 50 mm
25 x 100 x 100 mm
20 x 50 x 50 mm
