Spiral Staircase
Application

  • For indoor use only.
  • Suitable for residential or commercial projects.

Manufacturer recommends that professional advice is taken to ensure that any proposal is designed to be structurally sound.

Description

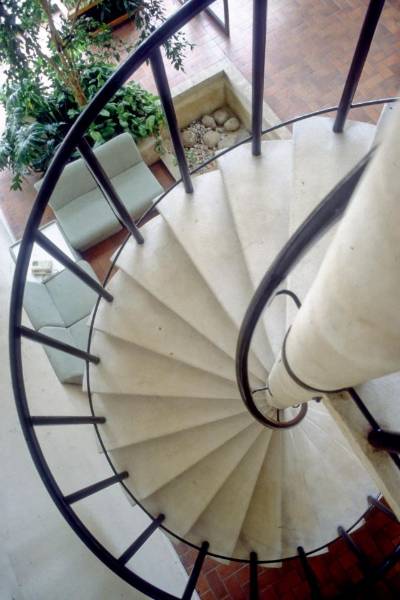

A simple and elegant spiral staircase.

With the riser and locating ring being an integral part of each step, a complete staircase can provide a functional design solution for both traditional and contemporary projects. Designed for interior use only, the steps are available in a maximum radius of 1200 mm.

Material:

- TecStone (wet cast limestone):

High quality wet cast stone, comprising over 60% natural limestone aggregate. Denser than the Haddonstone material, TecStone is acid etched as standard to provide an attractive appearance similar to a finished natural stone. Designed to meet demanding performance criteria and can incorporate structural reinforcement and cast-in fixings. TecStone is the preferred material for architectural projects where structural performance is required.

Applications:

  • For indoor use only.
  • Suitable for residential or commercial projects.

Manufacturer recommends that professional advice is taken to ensure that any proposal is designed to be structurally sound.

General information

Material

TecStone (wet cast limestone)

Uniclass 2015

Ss_35_10_40_42 Internal stair systemsPrimary

CAWS

L30/20 Stairs

L30/270 Stairs

Specification data - Internal stair systems

Product Reference

Spiral Staircase

Type

As drawing

Consult manufacturer and insert details.

Radius

Maximum 1200 mm, insert requirement.

Material

TecStone (wet cast limestone)

Colour

Bath 02

Ivory Limestone IL

Portland 01

Bespoke

Insert requirement for colour.

Standard product features

Compressive cube strength after 28 days (minimum):

TecStone: >45 MPa.

TecStone material exceeds the requirements of the United Kingdom Cast Stone Association (UKCSA) specification and comply with the requirements of BS 1217, BS 5642-2+ A1 and BS EN 13198.

TecStone:

  • Material density: 2350 kg/m³.
  • Compressive strength: Minimum compressive cube strength at 28 days is >45 N/mm² (MPa).
  • Aggregate size: 0–10 mm continuously graded.
  • Finish: Light acid etched.
  • Freeze/ thaw resistance: Complies with UKCSA Standards so products deemed freeze/ thaw resistant.
  • Handling reinforcement: Where appropriate units may contain one or more stainless steel, synthetic fibre or extruded basalt reinforcement bar (30 mm minimum cover).
  • Slip resistance 'Smooth' finish paving tested to BS EN 1339. Unpolished slip resistance value (USRV) was average 86: 'Extremely low' potential for slip. Surface Micro-roughness test (Rz) was average 33.3 µm: 'Low' potential for slip.
