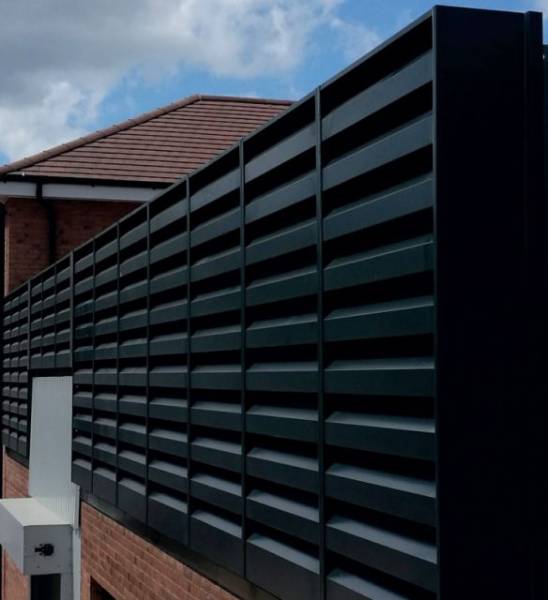

soundEX™ Noise Control Louvres
Acoustic louvre screening with full ventilation capability or acoustic screening panels to control noise passage to surrounding areas of mechanical plant/chiller units.
Suitable for use in:
- Plantrooms.
- Roof plant space.
Can be fitted into:
- Clear finished structural builderswork.
- Cladding.
- Steelwork openings.
- Mounted back to steel support structure to form plant/ enclosure screens.
Consult manufacturer's literature for detailed sound reduction data.
Acoustic louvres with full ventilation and acoustic screening with full sound ventilation absorption capabilities to any building elevation where noise control required to air intake/discharge positions is required and surrounding noise pollution from external chiller plant needs to be controlled and managed.
Allows airflow to and from a building whilst reducing noise transmission to surrounding areas, and in turn reducing the potential for noise disturbance from the general public, pedestrians and occupiers of surrounding commercial or domestic buildings and properties.
Features and benefits:
- Weathered louvre opening with sound insulation and airflow performance capabilities.
- Range of depths, blade profile arrangements and material construction available to cater for variation in terms of noise control, cost and spatial requirements.
- Aesthetic external visual appearance.
- Can be supplied as doorsets for inclusion in louvre screens or as stand-alone units; consult manufacturer for details.
Applications:
Suitable for use in:
- Plantrooms.
- Roof plant space.
Can be fitted into:
- Clear finished structural builderswork.
- Cladding.
- Steelwork openings.
- Mounted back to steel support structure to form plant/ enclosure screens.
Consult manufacturer's literature for detailed sound reduction data.
| Uniclass 2015 | |
| CAWS | L10/650 Metal louvres |
| Product Reference | soundEX™ Noise Control Louvres and Acoustic Cladding Panels |
| Acoustic louvres | - |
| Size | - |
| Depth | 150 mmsoundEX L-150, single bank. 300 mmsoundEX L-300, single bank. 600 mmsoundEX L-300, double-banked. |
| Width | See 'Options' below and insert requirements. |
| Height | See 'Options' below and insert requirements. |
| Material/ Finish | Aluminium, mill finishAluminium, polyester powder painted, RALStandard; insert colour requirements. Steel, colour coatInsert colour requirements. Steel, galvanized, self-colouredStandard. Steel, leathergrain PlastisolInsert colour requirements. Steel, polyester powder painted, RALStandard; insert colour requirements. |
| Acoustic cladding panels | - |
| Size | - |
| Thickness | 50 mm100 mm |
| Width | See 'Options' below and insert requirements. |
| Height | See 'Options' below and insert requirements. |
| Material/ Finish | As Acoustic louvresAluminium, mill finishAluminium, polyester powder painted, RALStandard; insert colour requirements. Steel, colour coatInsert colour requirements. Steel, galvanized, self-colouredStandard. Steel, leathergrain PlastisolInsert colour requirements. Steel, polyester powder painted, RALStandard; insert colour requirements. |
| Accessories | NoneBirdguardGalvanized steel and stainless steel. Insect screen, nylonInsect screen stainless steel |
| Product Options | Acoustic louvres/ Acoustic cladding panels: - Size: Width: Available in modules of 800, 1000 and 1200 mm; larger widths are achieved by bolting together multiple banks of louvre or acoustic cladding modules. Height: Available as a single modules of up to 3000 mm; larger heights are achieved by bolting together multiple banks of louvre modules. - Material/ Finish: As standard, the louvre channel section casement sides and top/ bottom surfaces along with the front face of the louvre blades are fabricated from pre-galvanized mild steel metal sheets. The underside of the louvre blades are fabricated from similar pre-galvanized perforated sheet. The void inside the louvre blades is filled with acoustic media and may also be supplied Melinex® lined (packed under 5% compression to eliminate voids due to settling) - consult manufacturer for details. Accessories: Birdguards and insect screens can be fitted to the back rear facing of the acoustic louvre module, normally fixed using rivets/ washers to louvre blades. |
