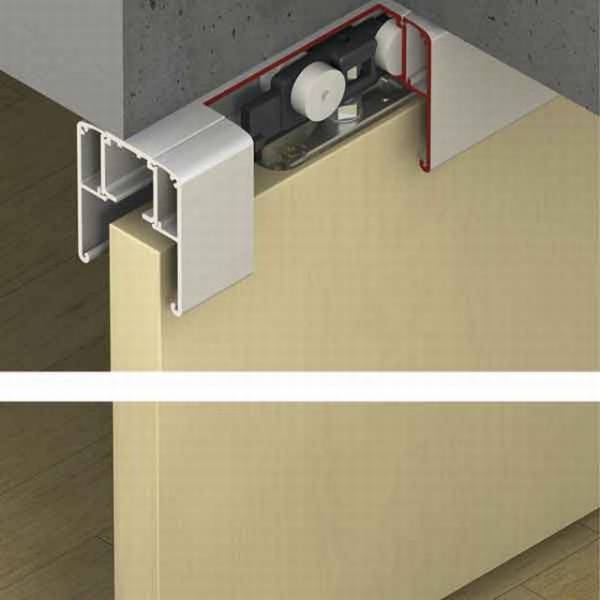

Slido Classic 120-O Sliding Door System
Description

Smooth running quality system for commercial and residential interior doors where a small space between the top of the door and bottom of the track is required. Available with or without soft closing mechanism.

Features:

  • Maximum door weight: 120 kg per door.
  • For one and two leaf sliding doors.
  • Door height adjustable.
  • Suspension with recessed flange clip without tools.
  • Trolley hangers have four ball bearing rollers.
  • Tested to BS EN 1527:2013, 100 000 cycles.

General information

Features

Maximum door weight: 120 kg per door

For one and two leaf sliding doors

Door height adjustable

Suspension with recessed flange clip without tools

Trolley hangers have four ball bearing rollers

Show more

Uniclass 2015

Pr_30_36_36_23 Door track and running gearPrimary

CAWS

P21/10 Quantities and locations

P21/350 Door track and running gear

Specification data - Door track and running gear

Product Reference

Slido Classic 120-O Sliding Door System, 941.02.120

Without soft close.

Slido Classic 120-O Sliding Door System, 941.25.112

One soft close.

Slido Classic 120-O Sliding Door System, 941.25.115

Two soft closes.

Mounting

2.0 m side fixing bracket, 940.42.061

2.0 m top track, 940.43.921

3.0 m top track, 940.43.931

Clip panel

Not required

2.0 m, 940.43.123

3.0 m, 940.43.133

Accessories

None

Track buffer, 940.42.041

Standard product features

Fitting set:

  • Running gear, four rollers, flange clip for hooking in, nickel-plated zinc.
  • Track buffer, with retaining spring and rubber buffer, grey plastic.
  • Soft close.
  • Bottom guide, 24 x 60 x 30 mm, black plastic.
