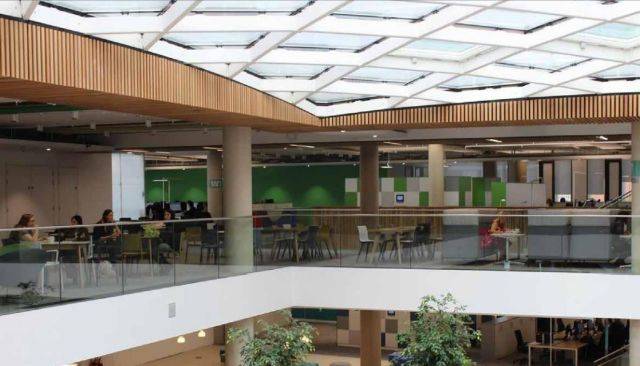

Slatted Acoustic Ceiling

Application

For use as ceiling panels.

Description

Slatted acoustic timber ceiling panels which enable the designer to introduce warmth and character with a functional role. The prefabricated modular nature of the product's construction allows fast and accurate installation process. Fixing methods allow for fixed and demountable systems to be integrated into the product.

The nature of the product allows slats to be set out around the services if required and to integrate light fixtures, sprinklers, access panels, etc.

The screws are fixed directly from the front face through the black fabric and medium-density fibreboard (MDF) back board to the timber batten. This system allows fast, secure and precise installation.

Features and benefits:

  • Suspended slatted timber acoustic ceiling panels.
  • Can complement a wide range of room types. They are beneficial both acoustically and aesthetically.
  • Bespoke slat sizes and timber type.
  • Available up to class A acoustic performance.

Applications:

For use as ceiling panels.

General information

Size

Insert requirement.

Material

Base board: 18 mm thick medium-density fibreboard (MDF) wrapped in an acoustically transparent acoustic fleece

Insulation: 50 mm high-density mineral wool (48 kg/m²) and acoustic tissue

Uniclass 2015

Pr_35_93_13_80 Sound attenuator infill unitsPrimary

CAWS

K40/10 Unit/ modular suspended ceilings

K40/105 Suspended ceiling system

K40/115 Unit/ modular suspended ceiling system

K40/270 Boards

Product range

Acoustic Panels

Specification data - Sound attenuator infill units

Product Reference

Slotted Acoustic Ceiling

Size

Insert requirement.

Slat

-

Timber species

Insert requirement, consult manufacturer's literature for information.

Lacquer fire rating (to BS 476-7)

Class 0

Class 1

Profile

Insert requirement.

Spacing

Insert requirement.

Base board fire rating (to BS 476-7)

Non-fire rated

Class 0

Class 1

Backing fabric

-

Type

Insert requirement from Cara or Corovin range, consult manufacturer's literature for information.

Fire rating (to BS 476-7)

Class 0

Class 1

Standard.

Standard product features

Material:

  • Base board: 18 mm thick medium-density fibreboard (MDF) wrapped in an acoustically transparent acoustic fleece.
  • Insulation: 50 mm high-density mineral wool (48 kg/m²) and acoustic tissue.

Sound absorber class (to BS EN ISO 11654):

D, C, B or A (dependant on design/ open surface area).
