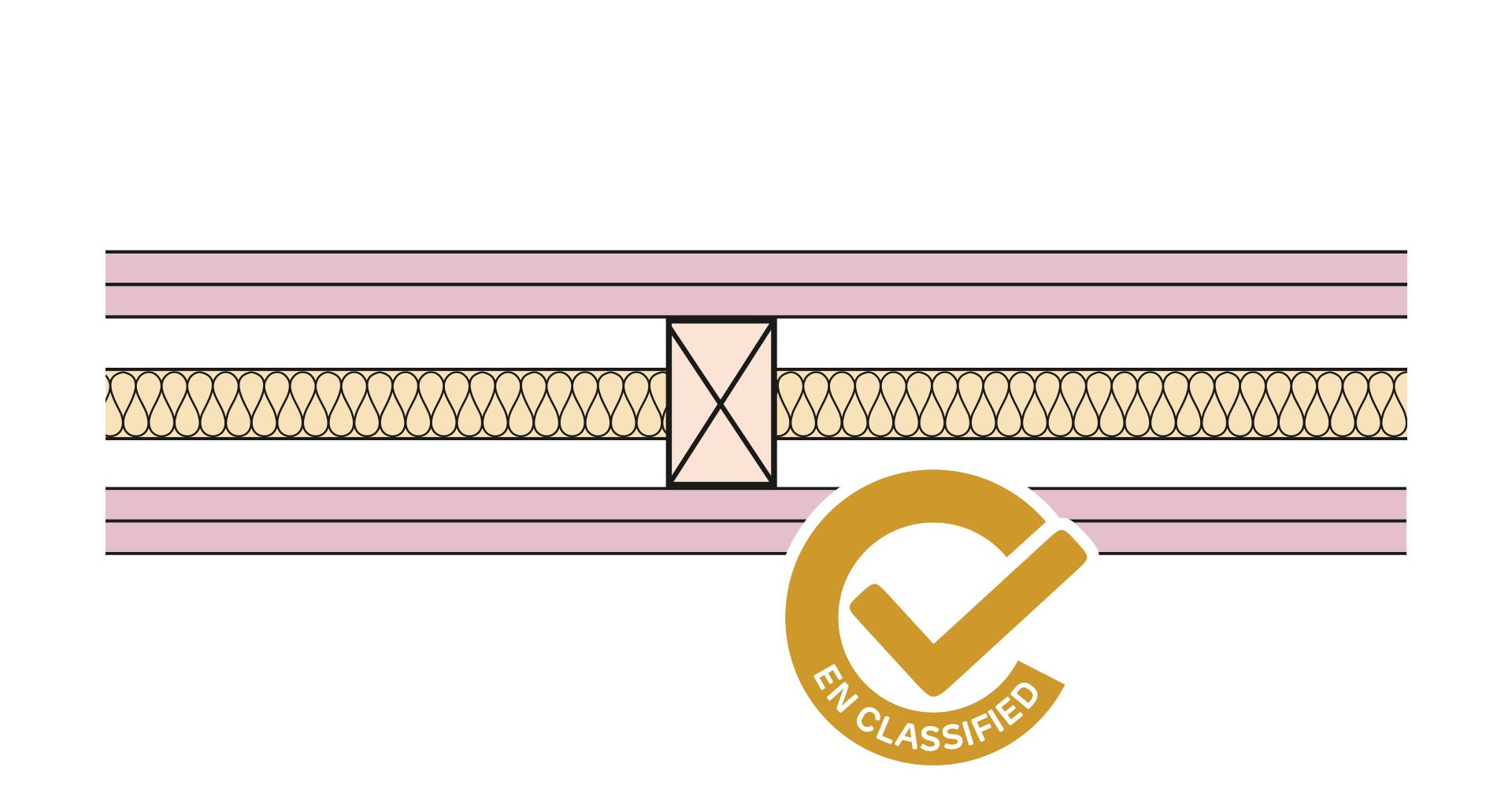

Siniat Non-loadbearing Timber Stud Partition - TS63x38-212F-25G

Name: Siniat Non-loadbearing Timber Stud Partition - TS63x38-212F-25G
Brand: Siniat
SKU: axVyTgZc9reqZx4Pw38smQ

Verified by manufacturer today

Siniat

Product certifications:

EPD
Certificate type
EN 13501-2
Certificate type

Non-loadbearing timber stud partition.

Jump to:

+44 (0)1275 377773 Website

Application

Suitable for use where fire and acoustic performance is required.
Suitable for use in residential and commercial spaces.

Description

Insulated EI 120 non-loadbearing timber stud partition.

General information

Finish	Other
Material	Plasterboard Timber Glass mineral wool
Shape	Other
Length	Bespoke
Width	Bespoke
Warranty description	Lifetime Guidance for specification option: Etex Building Performance Limited offers both a comprehensive Lifetime System Warranty (excl. Aquaboard™ and Weather Defence) and External Board Warranty (Incl. Aquaboard™ - 10 Years and Weather Defence - 12 Years). For full details see the full Warranty and Proprietary Systems Policy at www.siniat.co.uk/knowledge-centre/. Etex Building Performance Limited warrants to the purchaser that the Siniat drywall systems as originally designed, built and unaltered will perform to the original laboratory performance parameters as set out in the Siniat Drywall Manual and other relevant literature as published by Siniat. The System must be constructed solely with the proprietary products and components as supplied by Siniat. The System must be installed by a professional installer in accordance with the Siniat Drywall Manual, the specification documents issued by Siniat, CAD drawings, advice and all relevant and applicable construction standards and regulations.

Uniclass	Ss_25_10_30_35 Gypsum board partition systemsPrimary
CAWS	K10/15 Lining on timber K10/205 Lining on timber

Specification data - Gypsum board partition systems

System performance
Sound insulation, Rw (minimum) to BS EN ISO 10140-2 or BS EN ISO 140-3	48 Rw (dB).
Fire resistance to BS EN 1364-1 and classification to BS EN 13501-2	EI 120.
Maximum height - fire state	4000 mm.
Thickness	113 mm. Manufacturer guidance Nominal.

Classification data
System performance	All Siniat systems should be constructed to BS 8212:1995 and BS 8000-8:1989. Guidance for specification option: BS 8212:1995 - 'Code of practice for drylining and partitioning using gypsum plasterboard'. BS 8000-8:1989 - 'Code of practice for plasterboard partitions and drylining'.
System manufacturer	Siniat.
Framing	Studs: 63 x 38 mm C16 Timber Studs at 600 mm centres. (400 mm if to be tiled). Tracks (Head): 63 x 38 mm Timber Head Plate. Tracks (Base): 63 x 38 mm Timber Sole Plate. Guidance for specification option: Track Fixing: Head and base track fixed to structure at maximum 600 mm centres with suitable fixing by others. Noggins: As required for board joints and framing stability requirement. Framing Note: Timber framing to be fixed together using suitable fixings by others.
Insulation	Glass mineral wool. Guidance for specification option: 25 mm. As per installation guidance.
Linings	Face A Plasterboard Linings - Inner Layer: 12.5 mm Siniat Fire Board. Face A Plasterboard Linings - Outer Layer: 12.5 mm Siniat Fire Board. Face B Plasterboard Linings - Inner Layer: 12.5 mm Siniat Fire Board. Face B Plasterboard Linings - Outer Layer: 12.5 mm Siniat Fire Board.
Fasteners	Inner Layer Fixing: 38 mm Siniat High thread Screws at 600 mm centres. Outer Layer Fixing: 50 mm Siniat High thread Screws at 300 mm centres. Guidance for specification option: Fixing Note: Stagger all board joints between layers and opposing partition faces.
Joint treatment	Decorative. Guidance for specification option: Siniat taping and jointing system using appropriate Siniat jointing materials and Siniat Paper Joint Tape following Siniat's guidance. Non-decorative. Guidance for specification option: Outer boards should be at taped and jointed using appropriate Siniat compounds to at least first stage (bedding).
Finish	Siniat Drywall Sealer. Guidance for specification option: Apply undiluted across the whole drylined surface by brush or roller to coverage rate as defined by current Siniat Drywall Manual.
Sealing (joints and penetrations)	Intumescent acoustic sealant. Guidance for specification option: Apply 6 mm continuous beads of Siniat Intumescent Acoustic Sealant around the perimeter of the framing or to the edge of outer layers of board, ensuring that all air-paths are sealed. Penetrations: Where required, appropriate firestopping by others.
Height	Guidance for specification option: Insert requirements. Cold state maximum height: 2400 mm. UK AD.B and EN compliant maximum height: 2400 mm. Manufacturer guidance EN compliant max height is the lowest of the cold state height and maximum fire state height as stated in the associated classification report. By agreement between the project's client, designers, and appointed building control body, it may be possible to design based only on mechanical ‘cold state’ maximum height.
Fire resistance	To EN 13501-7, EI 120.
Third-party certification	All products are CE Marked in accordance with Construction Products Regulation. Guidance for specification option: Where relevant standards or European Technical Approvals exist.
Standards	To BS EN 520 and BS EN 14566. Guidance for specification option: All boards to conform to BS EN 520 or alternative standard where appropriate. Drywall screws conform to BS EN 14566.
System code	TS63x38-212F-25G.

Sustainability data

Country of material origin	Spain Manufacturer guidance Applies to the bulk material (gypsum) only. Other components are from other countries. Consult manufacturer for details.
Country of product manufacture	United Kingdom Manufacturer guidance UK applies to the majority of manufacture but a small percentage of finished items are imported. Contact manufacturer for details.
Material	Plasterboard Timber Glass mineral wool
Recycled content As defined in clause 7.8 of BS EN ISO 14021	- Manufacturer guidance Gypsum average 33.5%.
