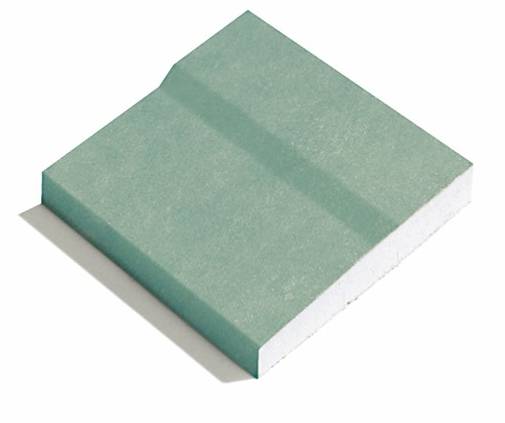

Siniat Moisture Board
Application

Board for use in areas exposed to humidity such as kitchens, bathrooms and utility rooms.

Description

GTEC Moisture Board is a plasterboard with water resistant additives in the core and liner to provide protection in humid areas such as kitchens, bathrooms and utility rooms.

Features and benefits:

  • Provides protection against moisture damage in humid areas such as kitchens and utility rooms.
  • Provides fire and acoustic performance.
  • No need for power tools or dust extraction simply score and snap the board.

Application:

Board for use in areas exposed to humidity such as kitchens, bathrooms and utility rooms.

General information
Features

Provides protection against moisture damage in humid areas such as kitchens and utility rooms, provides fire and acoustic performance and no need for power tools or dust extraction simply score and snap the board

Finish

Paper facia with tapers down the long edges

Material

Aerated calcium sulfate di-hydrate with fillers and moisture-resistant additives, enclosed inside green paper with bound edges. Core and papers are bonded with starch. PVA edge glue

Size

1200 x 2400 mm (w x l)

Uniclass 2015
Pr_25_71_52_52 Moisture-resistant gypsum plasterboardsPrimary
CAWS

K10/115 Metal stud partition system

K10/125 Metal stud partition system

K10/15 Lining on timber

K10/155 Wall lining system (metal studs)

K10/165 Wall lining system (metal framing)

K10/175 Wall lining system (metal furrings)

K10/185 Wall lining system (adhesive)

K10/205 Lining on timber

K10/220 Proprietary suspended ceiling system

K10/245 Ceiling lining on timber

K10/25 Lining on timber framed ceilings

K10/30 Metal stud

K10/35 Wall lining on metal framing

K10/41 Wall lining on metal furrings

K10/45 Wall lining on adhesive

K10/50 Suspended ceiling on metal framing

Specification data - Moisture-resistant gypsum plasterboards
Product Reference

Siniat Moisture Board

Siniat Moisture V Board

Includes silver, metallized polyester film back liner, enhancing the vapour resistance.

Standard

To BS EN 12524, BS EN ISO 12572, BS EN 520 and BS EN 13501-1

Core

Moisture resistant

Paper facings

Moisture resistant

Nominal

12.5 mm

Medium duty, 9 kg/m², thermal resistance (R-value): 0.05 m²K/W.

15 mm

Heavy duty, 11.85 kg/m², thermal resistance (R-value): 0.06 m²K/W.

Edge profile

Tapered down the long edges

Additional properties

Thermal conductivity (to BS EN 12524): 0.25 W/m·K, water vapour resistance factor (to BS EN 12524): μ = 10, moisture content: <2%, longitudinal breaking load (to BS EN 520): 12.5 mm thickness: ≥550 N; 15 mm thickness: ≥650 N, transverse breaking load (to BS EN 520): 12.5 mm thickness: ≥210 N; 15 mm thickness: ≥250 N, reaction to fire: A2-s1, d0

Standard product features

Colour:

Green on both sides.

Features:

Provides protection against moisture damage in humid areas such as kitchens and utility rooms, provides fire and acoustic performance and no need for power tools or dust extraction simply score and snap the board.

Finish:

Paper facia with tapers down the long edges

Material:

Aerated calcium sulfate di-hydrate with fillers and moisture-resistant additives, enclosed inside green paper with bound edges. Core and papers are bonded with starch. PVA edge glue.

Size:

1200 x 2400 mm (w x l).

Recycled content:

14% post-consumer content.

Recyclability:

Fully recyclable.

Embodied carbon:

0.160 kgCO2e/kg, cradle to gate.

Red Listed materials:

No.

Country of origin:

UK.

Environmental information
Embodied carbon

0.160 kgCO2e/kg, cradle to gate

Recyclability

Fully recyclable

Recycled content

14% post-consumer content
