Application

Suitable for use across many construction sectors, including commercial, residential, education and health.

Description

Partitioning systems incorporating GTEC dB gypsum board, fixings, frame and finishing products. Suitable for use across many construction sectors, including commercial, residential, education and health.

Features and benefits:

They offer a simple lightweight, durable and versatile means of dry wall construction.

Application:

Suitable for use across many construction sectors, including commercial, residential, education and health.

General information
Features

They offer a simple lightweight, durable and versatile means of dry wall construction

Finish

Studded

Material

Aerated calcium sulfate di-hydrate with fillers and fibres enclosed inside tough liner papers with bound edges. Core and papers are bonded with starch. PVA edge glue

Size

1200 x 2400–3000 mm (w x l) boards

Uniclass 2015
Ss_25_10_30_35 Gypsum board partition systemsPrimary
Specification data - Gypsum board partition systems
Product Reference

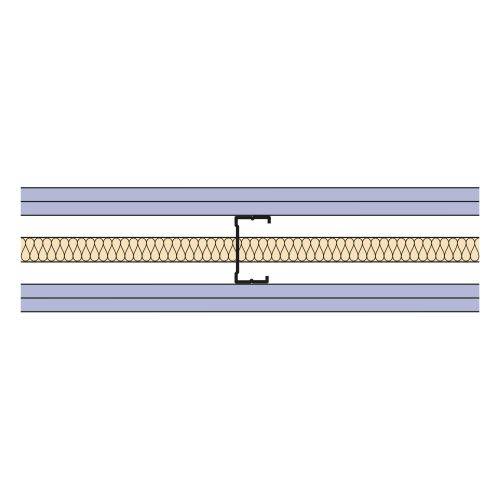

Siniat GTEC dB Board Partition Systems

Framing

ASP 003: Acoustic Stud Partition

System weight: 28 kg/m²; Thickness: 100 mm; Fire performance: 30 minutes; Strength duty: Heavy; Acoustic performance: 49 dB sound reduction.

ASP 011: Acoustic Stud Partition

System weight: 45 kg/m²; Thickness: 120 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 57 dB sound reduction.

RSP 001: C Stud Partition

System weight: 27 kg/m²; Thickness: 80 mm; Fire performance: 30 minutes; Strength duty: Heavy; Acoustic performance: 40 dB sound reduction.

RSP 002: C Stud Partition

System weight: 23 kg/m²; Thickness: 75 mm; Fire performance: 30 minutes; Strength duty: Medium; Acoustic performance: 44 dB sound reduction.

RSP 006: C Stud Partition

System weight: 23 kg/m²; Thickness: 95 mm; Fire performance: 30 minutes; Strength duty: Medium; Acoustic performance: 40 dB sound reduction.

RSP 007: C Stud Partition

System weight: 27 kg/m²; Thickness: 100 mm; Fire performance: 30 minutes; Strength duty: Heavy; Acoustic performance: 42 dB sound reduction.

RSP 008: C Stud Partition

System weight: 27 kg/m²; Thickness: 100 mm; Fire performance: 30 minutes; Strength duty: Heavy; Acoustic performance: 46 dB sound reduction.

RSP 013: C Stud Partition

System weight: 53 kg/m²; Thickness: 130 mm; Fire performance: 90 minutes; Strength duty: Severe; Acoustic performance: 56 dB sound reduction.

RSP 017: C Stud Partition

System weight: 54 kg/m²; Thickness: 206 mm; Fire performance: 90 minutes; Strength duty: Severe; Acoustic performance: 57 dB sound reduction.

RSP 022: Twin Frame Partition

System weight: 52 kg/m²; Thickness: 295 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 67 dB -9 Ctr sound reduction.

RSP 023: Twin Frame Partition

System weight: 60 kg/m²; Thickness: 300 mm; Fire performance: To BS 476-22: 90 minutes; to BS EN 1364-1: 60 minutes; Strength duty: Severe; Acoustic performance: 69 dB -9 Ctr sound reduction.

RSP 027: C Stud Partition

System weight: 45 kg/m²; Thickness: 100 mm; Fire performance: 60 minutes; Strength duty: Severe; Acoustic performance: 53 dB sound reduction.

RSP 028: C Stud Partition

System weight: 23 kg/m²; Thickness: 95 mm; 30 minutes; Strength duty: Medium; Acoustic performance: 45 dB sound reduction.

RSP 037: Twin Frame Partition

System weight: 86 kg/m²; Thickness: 400 mm; Fire performance: To BS 476-22: 120 minutes; to BS EN 1364-1: 90 minutes; Strength duty: Severe; Acoustic performance: 74 dB -7 Ctr sound reduction.

RSP 038: Twin Frame Partition

System weight: 54 kg/m²; Thickness: 200 mm; Fire performance: To BS 476-22: 90 minutes; to BS EN 1364-1: 60 minutes; Strength duty: Severe; Acoustic performance: 63 dB -7 Ctr sound reduction.

Insulation

None or glass mineral wool (supplied by others) with GTEC Insulation Hold to secure and prevent slump

Dependant on partition type selected, various sizes.

Cavity fire barriers

GTEC Intumescent Acoustic Sealant

Perimeter sealing to restrict smoke, sound and fire penetration. Ensures system performance.

Linings -
Inner layers

None or GTEC dB Board

Dependant on partition type selected, various thicknesses.

Face layer

GTEC dB Board

Various thicknesses dependant on partition type selected.

Fasteners

GTEC Self-Tapping Drywall Screws

Joint treatment

Insert requirements from manufacturer's literature.

System accessories

None

GTEC V-Brace

For RSP 022, RSP 023, RSP 037 and RSP 038 only.

System height

As drawing

Insert reference, available 2.75–12 m (dependent on system build-up).

Sealer

GTEC Drywall Sealer

Ivory, pre-decoration coat for plasterboard.

GTEC Universal Sealer

For use on plasterboard prior to painting for improved whiteness and covering power.

Support

GTEC Corner and Edge Beads

Provides corner and edge reinforcement.

Socket integrity

GTEC Socket Pad

Maintains acoustic and fire integrity at sockets.

Standard product features

Features:

They offer a simple lightweight, durable and versatile means of dry wall construction.

Finish:

Studded.

Material:

Aerated calcium sulfate di-hydrate with fillers and fibres enclosed inside tough liner papers with bound edges. Core and papers are bonded with starch. PVA edge glue.

Size:

1200 x 2400–3000 mm (w x l) boards.
