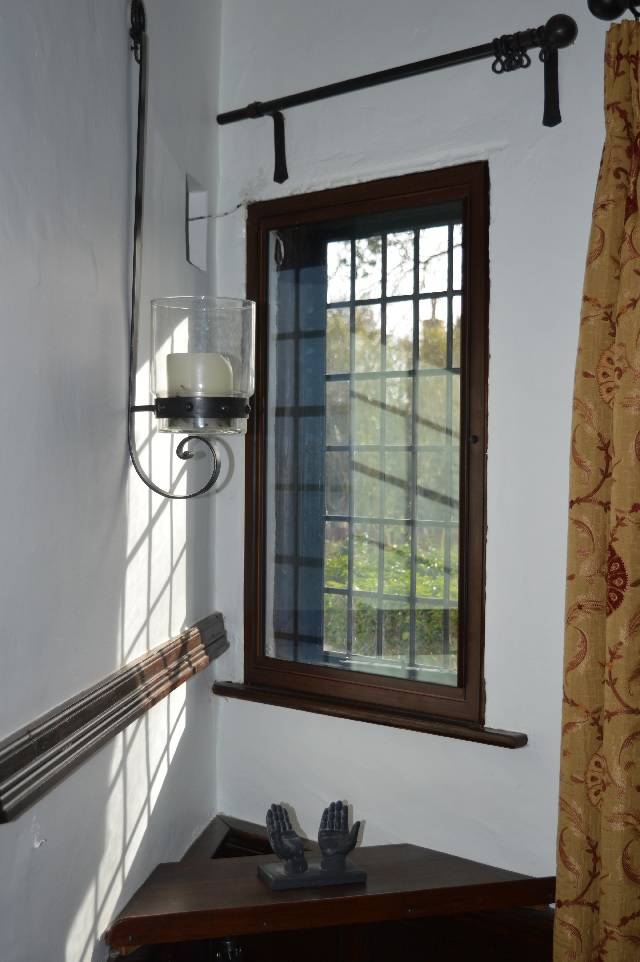

Slimline framing system usually applied to windows typically taller than they are wide. Offers a practical solution for treating windows which are rarely opened, but require occasional access.
Slimline lift out (LO) secondary glazing unit, removable to provide easy access to the outer window, facilitating cleaning and maintenance. All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section.
Suitable for listed buildings where the primary glazing cannot be changed. It is a reversible adaptation, so generally accepted by heritage agencies.
Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low emissivity). The system is also fitted with a mixture of high performance brush and compression seals to minimise drafts.
U-values as low as 1.79 W/m²K (timber primary window and low-E glass in secondary glazing).
Acoustic: Tested in accordance with BS EN ISO 140-3:1995 for acoustic performance between 38 and 45 dB.
Concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion
Extruded aluminium alloy 6063-T6
Ten year manufacturers guarantee subject to Selectaglaze terms and conditions
L10/58 Secondary glazing system
L10/580 Secondary glazing system
Series 30 Slimline Lift Out (LO)
Insert required dB level.
See 'Options' below and insert requirements.
Anodizing, Analok bronze AA25
Anodizing, Analok silver AA10
Polyester powder-coating, HIPCA 9910 semi-gloss white
Polyester powder-coating, RAL
Insert RAL colour.
Wood grain effect
H1 Integral finger pull, colour matched to frame
H3 Recessed finger pull, colour matched to frame
L11 mini cam lock, silver
L12 screwlock, white
L12 screwlock, black
Over the frame standard ventilator
Over the frame acoustic ventilator
|Acoustic reveal linings|
Vinyl faced acoustic foam
|Standard product features|
Extruded aluminium alloy 6063-T6.
- Lift out:
- Shuffle out:
Values of <2.9 W/m²K available; consult manufacturer for details.
