Schlüter®-KERDI-SHOWER-TB

Name: Schlüter®-KERDI-SHOWER-TB
Brand: cEgWBg5p7JfYP185LxvtKS
SKU: 68K8i7ENnDZUV9QzQe5gQE

Schlüter-Systems Ltd

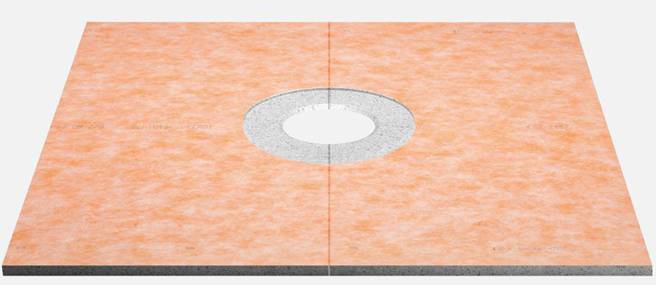

Schlüter ® -KERDI-SHOWER-TB is a sloped tray with a pre-adhered Schlüter ® KERDI waterproofing membrane.

Jump to:

+44 (0)1530 813396 www.schluterspecifier.co.uk

Description

Features:

The sloped boards are available in different sizes and can be combined with waterproofing sets for wall and floor drains, with optional use of base levelling panels.

The floor elements can easily be adapted for the construction of circular shower designs due to pre-cut grooves. Schlüter-KERDI-SHOWER modules stand out for their particularly easy and reliable installation.

Very low construction height is possible, from as low as 22 mm.

The levelling board and the sloped board consist of pressure resistant, expanded polystyrene foam (EPS).

Schlüter-KERDI-SHOWER does not restrict the selection of tile formats and can be used with any tile format, ranging from large format tile and stone to mosaics. This also applies with specific anticipated traffic loads, for example from wheelchairs.

Installation is preferred by Schlüter-Systems trained installers.

General information

Color	White
Features	Low assembly hight which is ideal for wooden structers. Pre-adhered Schlüter®-KERDI waterproofing membrane
Material	expanded polystyrene foam (EPS
Shape	Square
Size	1000 x 1000 x 22 mm
WarrantyDescription	5 years (Please contact Schlüter-Systems for further warranty information)
Uniclass 2015	Pr_40_20_06_84 Shower traysPrimary
CAWS	R11/315 Floor drains

Specification data - Shower trays

Product Reference

Schlüter®-KERDI-SHOWER

Type

Schlüter-KERDI-SHOWER-T

Set consisting of the sloped tray and the Schlüter-KERDI collar.

Schlüter-KERDI-SHOWER-TB

Sloped tray with a pre-adhered Schlüter-KERDI waterproofing membrane.

Schlüter-KERDI-SHOWER-TC

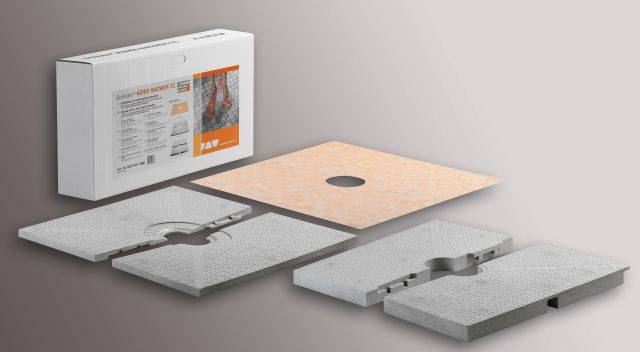

Set consisting of the sloped tray, the levelling board and the Schlüter-KERDI collar.

Dimensions

900 x 900 mm

Schlüter-KERDI-SHOWER-T / -TC only. See Options for height.

1000 x 1000 mm

See Options for height.

1200 x 1200 mm

Schlüter-KERDI-SHOWER-T / -TC only. See Options for height.

1500 x 1500 mm

Schlüter-KERDI-SHOWER-T / -TC only. See Options for height.

900 x 1800 mm

Schlüter-KERDI-SHOWER-T / -TC only. See Options for height.

Product Options

Height:

- Schlüter-KERDI-SHOWER-T:

900 x 900 mm - Sloped tray height: 31 mm.

1000 x 1000 mm - Sloped tray height: 33 mm.

1200 x 1200 mm - Sloped tray height: 35 mm.

1500 x 1500 mm - Sloped tray height: 39 mm.

900 x 1800 mm - Sloped tray height: 40 mm.

- Schlüter-KERDI-SHOWER-TB:

1000 x 1000 mm - Sloped tray height: 22 mm.

- Schlüter-KERDI-SHOWER-TC:

900 x 900 mm - Overall height including levelling board: 91 mm.

1000 x 1000 mm - Overall height including levelling board: 93 mm.

1200 x 1200 mm - Overall height including levelling board: 95 mm.

1500 x 1500 mm - Overall height including levelling board: 99 mm.

900 x 1800 mm - Overall height including levelling board: 100 mm.

Accessories:

- Schlüter-KERDI-SHOWER-SK:

Waterproofing set for floor level showers.

- Schlüter-KERDI-SHOWER-SKB:

Schlüter-KERDI-SHOWER-SKB is suitable for conventional floor level showers and for combination with the floor elements Schlüter-KERDI-SHOWER-T, -TB, and -TC.

Dimensions:

Smaller dimensions can easily be cut to size with a utility knife, consult manufacturer.

Digital objects

Platform	Compatible	Version	Certified to
IFC	IFC2X3	2	1.3
Revit	Revit 2016	4	2.0

Download now from NBS National BIM Library
