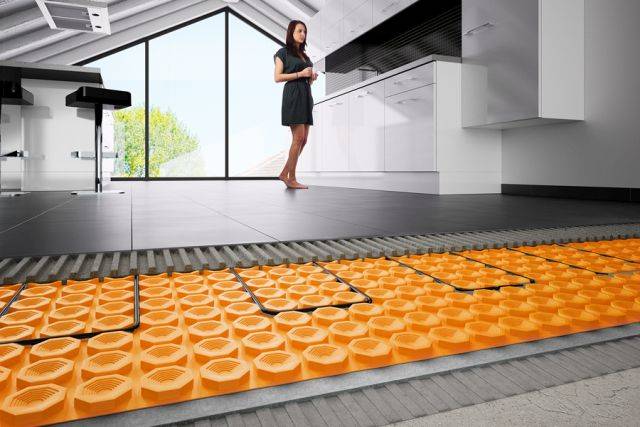

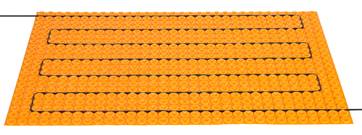

Schlüter®-DITRA-HEAT is a polypropylene membrane with a cut-back stud structure and an anchoring fleece laminated on the underside.
Features:
Summary of functions:
Areas of application:
CE waterproofing declaration of performance available upon request.
Installation is preferred by Schlüter-Systems trained installers.
Color | Yellow |
Features | Non degrading, waterproof and crack bridging |
Finish | Cut-back stud structure |
Material | Polypropylene |
WarrantyDescription | 5 years (Please contact Schlüter-Systems for further warranty information) |
Uniclass 2015 |
Product Reference | Schlüter®-DITRA-HEAT-E |
Type | Schlüter-DITRA-HEAT-E-RSDigital floor thermostat set with remote sensor. Schlüter-DITRA-HEAT-E-FFRemote sensor for floor thermostat. Schlüter-DITRA-HEAT-E-S1Complete System Kits - 5.6 m² of which 3.8 m² to be heated. Schlüter-DITRA-HEAT-E-S2Complete System Kits - 8.0 m² of which 5.6 m² to be heated. |
Heating cable | Schlüter-DITRA-HEAT-E-HK 12.07 mm lengthFor area of 1.1 m². Schlüter-DITRA-HEAT-E-HK 17.66 mm lengthFor area of 1.6 m². Schlüter-DITRA-HEAT-E-HK 23.77 mm lengthFor area of 2.2 m². Schlüter-DITRA-HEAT-E-HK 29.87 mm lengthFor area of 2.7 m². Schlüter-DITRA-HEAT-E-HK 35.97 mm lengthFor area of 3.3 m². Schlüter-DITRA-HEAT-E-HK 41.56 mm lengthFor area of 3.8 m². Schlüter-DITRA-HEAT-E-HK 47.67 mm lengthFor area of 4.4 m². Schlüter-DITRA-HEAT-E-HK 53.77 mm lengthFor area of 5.0 m². Schlüter-DITRA-HEAT-E-HK 59.87 mm lengthFor area of 5.5 m². Schlüter-DITRA-HEAT-E-HK 71.57 mm lengthFor area of 6.6 m². Schlüter-DITRA-HEAT-E-HK 83.77 mm lengthFor area of 7.7 m². Schlüter-DITRA-HEAT-E-HK 95.47 mm lengthFor area of 8.8 m². Schlüter-DITRA-HEAT-E-HK 107.67 mm lengthFor area of 10.0 m². |
Standard product features | Schlüter-DITRA-HEAT-MA Matting panel: 800 x 1000 mm = 0.8 m². Schlüter-DITRA-HEAT Rolled matting:
Schlüter-DITRA-HEAT-E-RS Digital floor thermostat set with remote sensor, consisting of:
Schlüter-DITRA-HEAT-E-FF Remote sensor for floor thermostat. Spare remote sensor for Schlüter-DITRAHEAT-E floor heating. It is installed, for example, as a backup if the remote sensor included in the floor temperature control set is directly embedded in the thin-bed mortar without using the conduit. |
Product Options | Waterproofing Accessories (Mandatory): Schlüter-KERDI-KEBA sealing band (12.5 cm minimum) is used to seal mat joints, installed centrally over the joint and solidly adhered with the waterproof sealant adhesive Schlüter-KERDI-COLL. Schlüter-DITRA-HEAT-E-S1 Kits consist of:
Schlüter-DITRA-HEAT-E-S2 Kits consist of:
|
