Schlüter®-DIADEC

Application

For exterior wall corners and the edges of tile coverings.

Description

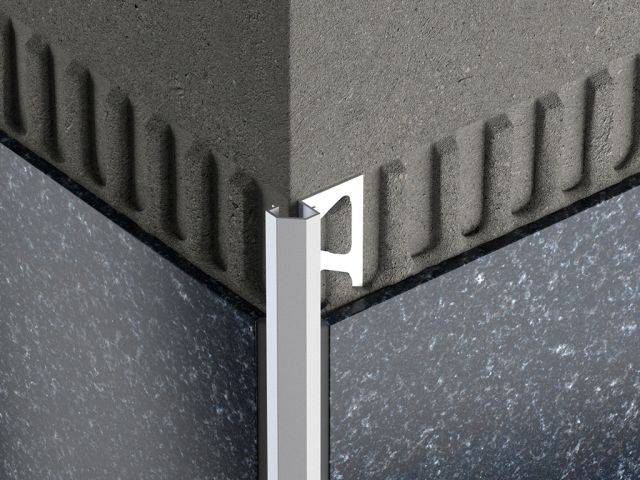

A high quality finishing profile of anodized aluminium. The visible area of the profile forms a 45° beveled edge at the exterior corner. The joint spacer defines a joint chamber with the tile. Installation is preferred by Schlüter-Systems trained installers.


Features and benefits:

  • The joint spacer defines a joint chamber with the tile. In addition to the decorative properties of the profile, it effectively protects the edges of tiles from mechanical damage.
  • The product is also suitable for use as a finishing profile if installing tiles over an existing covering to conceal width discrepancies at the wall.
  • Matching prefabricated parts are available to create simple and elegant connections.
  • Requires no special maintenance or care.

General information

Color

Grey

Finish

Anodised

Material

Aluminium

WarrantyDescription

Five years

Size

Profiles without anchoring legs can be variably adjusted to any tile thickness from 6 mm with tile adhesive. Where a profile with an anchoring leg is required, Schlüter-DIADEC is available in profile depths of 8, 10, 11 and 12.5 mm.

Uniclass

Pr_35_90_43_22 Edge trimsPrimary

CAWS

P20/150 Metal

Product range

Wall Corners and Edge Profiles Systems

Specification data - Edge trims Enhanced data

Material

Aluminium.

Finish

Anodised.

Colour or pattern

AE.

Anodized aluminium.

ACG.

Polished chrome anodized aluminium.

ACGB.

Brushed chrome anodized aluminium.

Profile

High quality finishing profile.

Fixing

Adhesive.

Product Reference

Schlüter®-DIADEC

Accessories

Not required.

Anchoring leg.

As drawing.

Insert special requirement. Matching preformed parts are available.

Environmental information

Country of material origin

Germany
