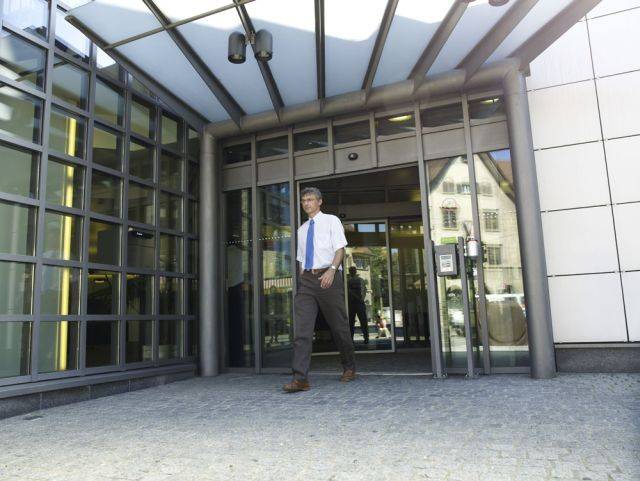

Automatic linear sliding door with RC 2 burglar protection.

Jump to:
+44 (0)1698 376411 www.recorduk.co.uk

Application

Ideal for entrances or areas with heightened security requirements, for example jewellery outlets, retail stores, markets, shopping centres, banks, savings companies, post offices, sensitive industrial zones such as laboratories, R&D or IT areas, chemists shops and drug stores in hospitals.

Description

The record Safecord is equipped with the following features to meet security requirements:

  • Record MPV multipoint locking.
  • Special laminated safety glass.
  • Heavy-duty running gear.
  • Reinforced door construction.
  • Extended floor guides.

Integrating the record Safecord into a building control system can further enhance the level of security. Any tampering with the door immediately triggers an alarm to alert security personnel. As the Safecord door effectively resists would-be burglars, security staff have sufficient time to take the necessary action.

Applications:

Ideal for entrances or areas with heightened security requirements, for example jewellery outlets, retail stores, markets, shopping centres, banks, savings companies, post offices, sensitive industrial zones such as laboratories, R&D or IT areas, chemists shops and drug stores in hospitals.

Benefits:

Presents an invisible, effective barrier to burglars, which can be an advantage in insurance issues tested in line with RC 2 norms and requirements.

General information

Uniclass 2015

Pr_30_59_24_80 Sliding door and partition setsPrimary

CAWS

L20/520 Sliding doors

Specification data - Sliding door and partition sets

Product Reference

Safecord

Type

D-STA

Two leaves.

E-STA

One leaf.

Opening width

800–3000 mm. Insert requirements.

Accessories

A wide range available; insert requirements from 'Options' below.

Standard product features

Clear height of passage:

3000 mm.

Door leaf weight (maximum):

E-STA: 1 x 150 kg.

D-STA: 2 x 120 kg.

DUO/ RED model:

  • E-STA: 1 x 150 kg.
  • D-STA: 2 x 150 kg.

Drive dimensions:

  • With side screen (d x h): 197 x 200 mm.
  • Without side screen (d x h): 160 x 200 mm.

Resistance class:

RC 2, certified by IFT Rosenheim.

Electrical connection:

230 V/ 50/ 60 Hz/ 100 W.

Product Options

Burglary/ safety protection:

  • P5A laminated safety glass in line with EN 356.
  • Modified running gear protected against lifting.
  • Structural reinforcements on side screens, door leaves and closing edges.
  • MPV multi-point locking.
  • Floor rails made of stainless steel.
  • Continuous floor guide.

Third party certifications

  • IFT Rosenheim: Resistance class RC 2
