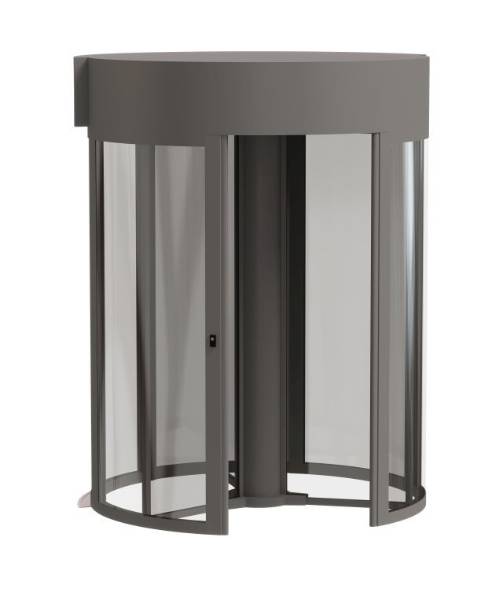

SA258 Revolving Door
Application

Suitable areas of application include:

  • Airports.
  • Corporate buildings.
  • Data centres.
  • Museums.
  • Leisure centres.

Description

Self-managed, with single-person passage checking system. Internal turnstile with three wings.

Features and benefits:

  • Removable structure.
  • Sliding door.
  • No base.
  • Built-in metal detector.
  • Self-managed.
  • Tailgating detection system.
  • Portal management unit/console with program functions and LCD display.
  • Traffic light panels with intercom.
  • Multilingual voice messages.
  • Capable of interfacing to access control systems/presence detection systems (RS485).
  • Integration with badge readers or biometrics.
  • Throughput: at the standard speed of four turns per minute, the three-wing turnstile guarantees a bi-directional flow of 12 users per minute (without alarms).
  • Additional bullet resistant steel panels (FB4) available.
  • Increased glass thickness available to increase solidity and anti-burglary level.

Application:

Suitable areas of application include:

  • Airports.
  • Corporate buildings.
  • Data centres.
  • Museums.
  • Leisure centres.

General information

Finish

Uniclass 2015

Pr_30_59_24_04 Automatic revolving doorsetsPrimary

CAWS

L20/495 Automatic revolving doors

Specification data - Automatic revolving doorsets

Product Reference

SA258.180.DA Revolving Door

Steel structure, two leaf door.

SA258.180.DB Revolving Door

Additional FB4 panels, two leaf door.

SA258.180.SA Revolving Door

Steel structure, one leaf door.

SA258.180.SB Revolving Door

Additional FB4 panels, one leaf door.

Finish

Insert requirement.

Wings

Three

Standard.

Four

Resistance

EN1063 BR4/S 30/ 31 mm

Internal: EN 1063 BR1/S; external: EN1063 BR2/S

Standard.

Accessories

None

Access control systems

Insert requirements, RFID reader, fingerprint acquisition system available.

Anti-drilling armoured defender

For key cylinder protection.

Reinforced upper cover

Standard product features

Overall size:

1800 x 2375 mm (diameter x h).

Width of passage:

750 x 2090 mm (diameter x h).
