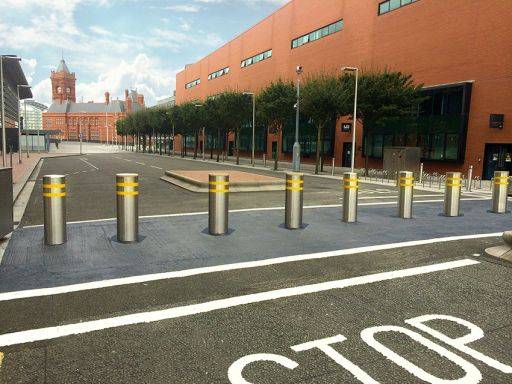

Rising Terra Universal Bollard
Description

Hydraulic rising bollards are suitable for high security applications and preventing unauthorised vehicle access and providing an anti-ram solution. Rising bollards are also suitable for controlling vehicle access whilst allowing pedestrian free passage.

Rising bollards include a control cabinet, which is recommended to be installed within 10 m of the bollard system.

General information

Features

Impact tested to IWA14, easy glide, hydraulically driven, 360° Hostile Vehicle Mitigation protection from VBIEDs, designed to complement Planet range static HVM Bollard range, reduced steel and footprint, easy to use and install

Finish

Polyester powder coating

Material

Carbon steel tube, Stainless steel sleeves

Shape

Cylindrical

Size

1000 x 245 mm Ø, 1450 x 1450 x 1559 mm foundation size

WarrantyDescription

1 year

Uniclass 2015

Pr_20_76_08_12 Carbon steel rising bollardsPrimary

CAWS

Q50/194 Retracting bollards

Q50/30 Street furniture

Specification data - Carbon steel rising bollards

Product Reference

Automatic Rising Bollard

Actuation/ Safety

Hydraulic

Operation

-

Type

Rising/ Retractable

Actuation/ Safety

Audible alarms

Flashing beacons

Induction loop/ Vehicle detector loop system

Lasers

Light curtain

Pedestrian guard rail, 2000 mm high

To prevent the gate closing on a person or vehicle.

Safety edge

Safety photocell

Signage

Traffic light system

100 mm diameter red/ green LED traffic light head - Highly recommended to be installed with all bollard systems.

Ultrasonic sensors

Access control

ANPR - Automatic number plate recognition

Audio intercom

Card reader

Digital keypad

GSM intercom

HMI - Human machine interface

Push buttons

VHF Radio control system

Accessories

None

100 mm diameter red/ green LED traffic light head - Highly recommended to be installed with all Bollard systems

Signage

Biodegradable oil

Control pedestal - dual height

Control pedestal - HGV height

Control pedestal - standard height

Hydraulic oil

Reflective banding

Standard product features

Operational height:

600 mm.

Width (diameter):

215 mm.

Material/ Finish:

  • Core: Mild (carbon) steel.
  • Stainless steel finish.

Electrical:

  • Hydraulic Power Unit (HPU).
  • 100 mm diameter red/ green LED traffic light head with monitored safety circuit.

Digital objects
PlatformCompatibleVersionCertified to
Revit
Revit 2015 1 1.3
IFC
IFC2X3 1 1.3
IFC
IFC2X3 1 1.3
Download now from NBS National BIM Library
