Richmond Umbrella - Rectangle
NBS BIM object standard Verified by manufacturer 5 months ago
Airtex (polyester)
Airtex (polyester)
QA Certificate
Certificate type

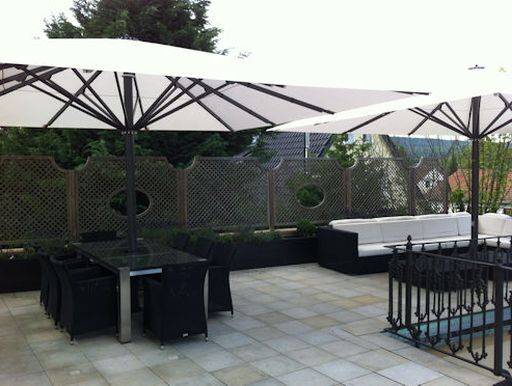

The Richmond Umbrella is a commercial structure that can cover up to 50 square metres. It has an aluminium frame and is covered with a choice of polyester and acrylic fabric.
Application
Suitable for hotels, restaurants and bars, visitor attractions, patios, play-areas, decking or any other outdoor setting.
Description
Sturdy umbrella suited to exposed and windy locations, covering from 7–50 m². The Richmond is constructed with a robust aluminium frame with 8–12 arms (dependent on size) for ultimate strength.
Features and benefits:
- Two fabric options are available – Airtex (polyester) and Sunacryl (acrylic) in a range of standard colours.
- The frame is supplied in white as standard, although can be supplied in any RAL colour.
- Suitable for wind speeds up to 102 km/h.
General information
ColorThe frame is supplied in white as standard, however you can choose from any RAL colour of your choice or a pattern from our exclusive DECORAL® range, which includes pine, walnut, oak, marble, granite effect finishes. Additional costs may apply. There are two fabric options: Sunacryl or Airtex. Fire retardant fabric options are available on request. Sunacryl Fabric Offers a high effective sun protection. it provides protection from the wind, rain, light, heat and UV. Due to te solution dyed acryl fibre, this fabric is non-fading and tear resistant, this makes Sunacryl the ideal fabric for your giant umbrella and in addition easy to clean. Sunacryl specification:
RAL9003 RAL9010 RAL1015 RAL1014 RAL9002 RAL1001 RAL8011 RAL3005 RAL1003 RAL2004 RAL3020 RAL3003 RAL1020 RAL6029 RAL6005 RAL6020 RAL6034 RAL5024 RAL5017 RAL5002 RAL5013 RAL7010 RAL9011 Airtex® classic (polyester) This classic fabric is perfect for ultimate sun protection. This 200 g/m² light material is made of 100% polyester which comes with an acryl coating and impregnation on the upper side. The coating shows a special textile character. Airtex® classic provides a very low surface weight and a good UV resistance. It is also water resistant and easy to clean. Airtex® classic specifications:
| - |
Finish | Powder-coated |
Material | Acrylic Aluminium Polyester |
Shape | Rectangle Circle Square |
SizeCovering from 7 up to 50 square metres. | - |
Length | 7500 mm |
Width | 4000 mm |
Height | Bespoke |
WarrantyDescriptionThere is also a fabric warranty - up to 10 years | One year Frame - 1 year guarantee Five year Gear box - 5 year guarantee |
Uniclass | |
CAWS | B91/330 Canopy |
Product range |
Specification data - Open-sided shelters
Shelter description | Umbrella, sturdy umbrella in two options fabric. |
Dimensions | - |
Plan size | 7.5 x 4 m.Maximum |
HeightInsert requirement. | - |
Frame | - |
Material | Aluminium. |
Finish | Painted. |
Colour | RAL 1023 Traffic Yellow.RAL 1028 Melon Yellow.RAL 2004 Pure Orange.RAL 3000 Flame Red.RAL 3020 Traffic Red.RAL 5005 Signal Blue.RAL 5010 Gentian Blue.RAL 5012 Light Blue.RAL 6005 Moss Green.RAL 6018 Yellow Green.RAL 7001 Silver Grey.RAL 7016 Anthracite Grey.RAL 8007 Fawn Brown.RAL 9003 Signal White.Standard. RAL 9005 Jet Black.RAL 9006 White Aluminium.Special order.Insert requirement. |
Roof covering | Fabric. |
Accessories | None.Heating.Lighting.Rain gutters.Side panels. |
Type | Airtex (polyester). |
Material | 100% polyester with Teflon outdoor finish. |
Weight | 195 g/m². |
Colour fastnessColour fastness and UV resistance (to UV 801): | 6 to 8/8. |
Water pressureWater pressure resistance: | 700 mm. |
Colours | 24 available. |
Framework | Frame and post constructed from extruded aluminium arms (8–12 dependent on size), 80–110 mm diameter aluminium mast (dependent on size), 4–5 mm thickness. |
CoverageArea | 7–50 m². |
Third-party certification | QA Certificate. |
Environmental information
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | 50% |
Digital objects
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | - | 4 | 2.1 |
 Revit | - | 4 | 2.1 |
Literature
Able Canopies Product Portfolio
Third party certifications
- German Technical Inspection Association: TÜV approved
