Description

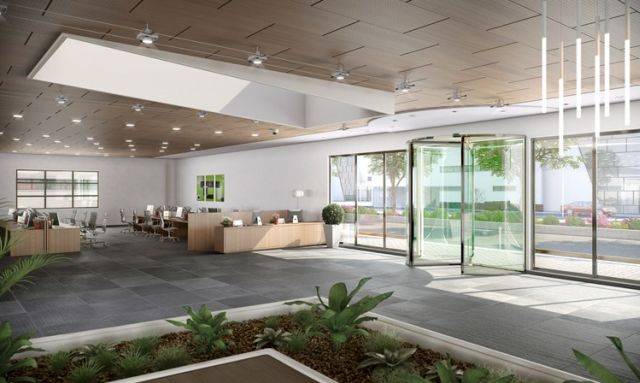

The ASSA ABLOY RD3-300 and ASSA ABLOY RD4-300 revolving doors enable an indoor climate to be safeguarded against unwanted air infiltration, enabling the control of energy consumption without compromise with a welcoming, luxurious entrance. The all-glass revolvers are available in a variety of diameters, ensuring optimal convenience for staff, customers and guests accompanied by goods or luggage.

Features:

  • Available in various sizes with flexible internal height.
  • In-ground drive mechanism for optimal aesthetics and minimal noise.
  • Designed for minimal floor preparation and ease of maintenance.
  • Suspended night closing doors for optimal aesthetics.
  • Optional LED-glass ceiling in specifier's pattern of choice.

General information
Features

Available in various sizes with flexible internal height

In-ground drive mechanism for optimal aesthetics and minimal noise

Designed for minimal floor preparation and ease of maintenance

Suspended night closing doors for optimal aesthetics

Optional LED-glass ceiling in specifier's pattern of choice

Uniclass 2015 Automatic revolving doorsets (Pr_30_59_24_04)
Specification data
Product Reference

Revolving Door Automatic - ASSA ABLOY RD3-300

With three rotating doors.

Revolving Door Automatic - ASSA ABLOY RD4-300

With four rotating doors.

Height

Consult manufacturer and insert requirements.

Diameter

1800 mm

2100 mm

2400 mm

2700 mm

3000 mm

Door width

853 mm

ASSA ABLOY RD3-300 only.

1003 mm

ASSA ABLOY RD3-300 only.

1153 mm

ASSA ABLOY RD3-300 only.

1237 mm

ASSA ABLOY RD4-300 only.

1303 mm

ASSA ABLOY RD3-300 only.

1449 mm

ASSA ABLOY RD4-300 only.

1453 mm

ASSA ABLOY RD3-300 only.

1661 mm

ASSA ABLOY RD4-300 only.

1873 mm

ASSA ABLOY RD4-300 only.

2085 mm

ASSA ABLOY RD4-300 only.

Colour/ Finish

Powder coated carbon steel, RAL

Consult manufacturer and insert requirements.

Accessories

None

Additional safety on rotating part

Concealed sensor cover

Disabled push button

Electromechanical lock

LED glass ceiling

Mechanical lock

Mechanical lock on NCD

Night closing doors (NCD), manual

Stainless steel cladding

Standard product features

Components:

  • Automatic drive.
  • Control unit built-in under the ground.
  • Vertical safety switches.
  • Door sections made from aluminium profiles.
  • ASSA ABLOY activators.
  • Fascia, standard height: 60 mm.
  • Emergency stop.

Glass:

  • Wall: 8 + 8 mm, clear laminated.
  • Ceiling: 8 + 8 mm laminated glass.
  • Door leaves: 12 mm tempered glass (HI ≤ 2600 mm). 15 mm tempered glass (2600 mm < HI ≤ 3000 mm).

Power supply:

  • 100–120 V, 50/60 Hz, mains fuse 16 A (maximum).
  • 230 V, 50 Hz, mains fuse 10 A (maximum).

Power consumption:

  • Standard drive unit: 200 W/ resting 30 W.
  • Maximum support: 400 W/ resting 30 W.

LED lighting:

60 W (maximum).

Product Options

Serviceability:

This unique and state-of-the-art control system was developed with no compromise in design or function. The system ensures lowest operating and maintenance cost, while ensuring the highest safety and best performance:

  • Equipped with a program selector with access codes to operate the door.
  • Automatic system check up upon installation.
  • Fast and safe adjustments and initial set up of all safety zones and speed settings.
  • Self-checking of safety systems.
  • Automatic indication of service intervals.
  • Automatic event log.
  • Automatic diagnostics.

Safety:

The ASSA ABLOY all-glass door range has user safety as its number one priority:

  • To prevent injury, the drum edges are equipped with soft safety edges.
  • If an obstacle prohibits the rotation of the door (the resistance is higher than the pre-set value) the rotation will cease.
  • Horizontal safety switches on the rotating doors.
  • Speed control.
  • State-of the art sensors for safety, activation and comfort.

Security:

The ASSA ABLOY RD3-300 and ASSA ABLOY RD4-300 have building security incorporated into their design:

  • Reinforced and glass through-out the revolving door.
  • Access levels and password protected user interface on program control device.
  • Optional manual night closing doors.
