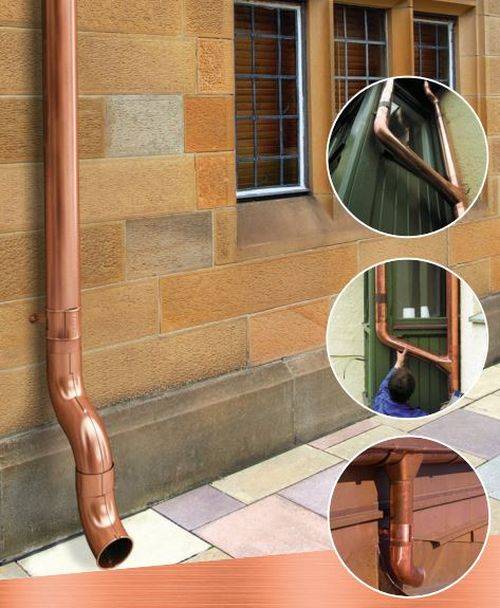

Rainline Natural Copper Rainwater Downpipe

Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.


When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline rainwater downpipes and fittings in uncoated copper.


Features and benefits:

  • Corrosion-resistant.
  • Will transition to a greenish verdigris patina.
  • Low carbon footprint and low overall environmental impact.
  • Durable and flexible.
  • Minimal maintenance required.
  • Resistant to vandalism.
  • UV stable.
  • Available in four sizes, two lengths, and a range of colour options. Consult manufacturer's literature for details.
  • Quick and easy to install.
  • Supplied with a ten-year warranty.
  • Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color

Copper

Natural Copper. Will transition to a greenish verdigris patina.

Material

Copper

Size

75 x 1000 mm

75 x 3000 mm

WarrantyDescription

Ten year

Uniclass 2015

Pr_65_65_25_23 Domestic rigid ductwork and fittingsPrimary

CAWS

R10/390 Copper pipework

Specification data - Domestic rigid ductwork and fittings Enhanced data

Material

Natural copper.

Size

75 x 1000 mm.

SROR175CU.

75 x 3000 mm.

SROR375CU.

Execution

Installing rainwater downpipe.

Product Reference

Rainline Natural Copper Rainwater Downpipe

Type

75 mm downpipe, 1 m length (SROR175CU).

75 mm downpipe, 3 m length (SROR375CU).

Bends

BK 70° conical pipe bend, 75 mm (BK7075CU).

BM 70° pipe bend with socket, 75 mm (BM7075CU).

Intermediate pipes

100 mm MST intermediate pipe, 1 m (MST1100CU).

As drawing.

Contractor's choice.

Access pipes

100 mm MSTRA rod access pipe, 1 m (MSTRA100CU).

As drawing.

Contractor's choice.

Branches

GROR pipe branch, 75 mm (GROR75CU).

As drawing.

Contractor's choice.

Shoes

BUTK drain shoe, 75 mm (BUTK75CU).

UTK pipe shoe, 75 mm (UTK75CU).

As drawing.

Contractor's choice.

Brackets

SHVA downpipe bracket, 75 mm (SVHA75CU).

As drawing.

Contractor's choice.

Hose connector

As drawing.

Contractor's choice.

Pipe holders

SST spike for pipe bracket, 125 mm (SST125).

SST spike for pipe bracket, 175 mm (SST175).

SST spike for pipe bracket, 250 mm (SST250).

SST spike for pipe bracket, 300 mm (SST300).

SV pipe holder (for Spike), 75 mm (SV75CU).

Show more

Environmental information

Recycled content

30

Manufactured from 30% recycled steel.
