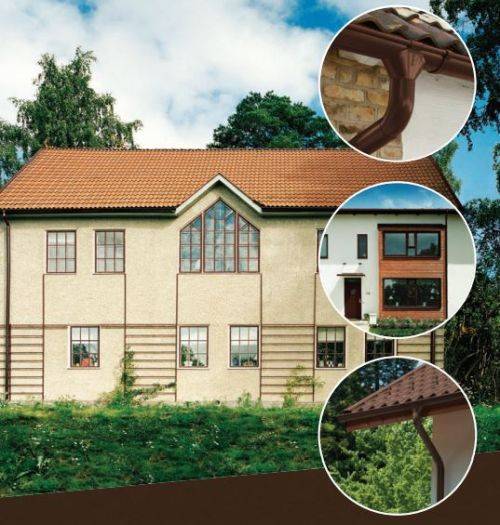

Rainline Brown Gutters

Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.


When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline steel gutter system finished in brown (RAL 8017).


Features and benefits:

  • Low carbon footprint and low overall environmental impact.
  • Durable and flexible.
  • Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
  • Minimal maintenance required.
  • Highly resistant to vandal attack; further reinforcement can be added if required.
  • UV stable.
  • Available in two shapes, five sizes, and a range of other colour options. Consult manufacturer's literature for details.
  • Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
  • Supplied with a 15-year warranty.
  • Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color

Brown

RAL 8017.

Finish

Gloss

Painted, RAL gloss finish.

Material

Steel

Half-round: Roll formed 0.6 mm steel with bead stiffened fronts; Rectangular: 0.6 mm steel box, with front lip detail.

Shape

Half round

Size

100 x 2000 mm

R2100BN.

100 x 3000 mm

R3100BN.

WarrantyDescription

15 years

Uniclass 2015

Pr_65_50_35_42 Hot-dip pre-coated carbon steel eaves guttersPrimary

CAWS

R10/332 Continuously hot dip coated steel gutters

Specification data - Hot-dip pre-coated carbon steel eaves gutters Enhanced data

Standard

To BS EN 12056-3: 2000.

Profile

Beaded half round.

Size (nominal)

100 x 2000 mm.

R2100BN.

100 x 3000 mm.

R3100BN.

Material

Steel.

Half-round: Roll formed 0.6 mm steel with bead fronts;

Rectangular: 0.6 mm steel box, with front lip detail.

Finish

Painted, RAL gloss finish.

Colour

Brown.

RAL 8017.

Integral accessories

Selection of brackets, joints, outlets, stop ends and overflow protectors are available dependent on gutter size and shape.

Product Reference

Rainline Brown Gutters

Type

100 mm, half-round, 2 m length (R2100BN).

Width (internal): 107 mm. Bead diameter: 17 mm.

100 mm, half-round, 3 m length (R3100BN).

Width (internal): 107 mm. Bead diameter: 17 mm.

Joints

RSK gutter joint with rubber seal, 100 mm (RSK100BN).

As drawing.

Contractor's choice.

Outlets (snap fit)

OMV/OK gutter outlet, 100 x 75 mm (OMVA100BN).

OMV/OK gutter outlet, 100 x 87 mm (OMVB100BN).

As drawing.

Contractor's choice.

Angles

RVI internal 135° gutter angle, 100 mm (RVIO100BN).

RVI internal 90° gutter angle, 100 mm (RVIS100BN).

RVY external 135° gutter angle, 100 mm (RVYO100BN).

RVY external 90° gutter angle, 100 mm (RVYS100BN).

As drawing.

Show more

Stop ends

RG self-locking stop end, 100 mm (RG100BN).

As drawing.

Contractor's choice.

Overflow protectors

OSK corner overflow protector (OSKBN).

As drawing.

Contractor's choice.

Stay straps

Not required.

STAGBN.

As drawing.

Contractor's choice.

Brackets

K07 70 mm flex-fit fascia bracket, 100 mm (K07100BN).

K16 160 mm flex-fit rafter bracket, 100 mm (K16100BN).

KFK fascia bracket, 100 mm (KFK100BN).

KFL 200 mm rafter bracket, 100 mm (KFL100BN).

KLK adjustable fascia bracket, 100 mm (KLK100BN).

Show more

Environmental information

Recycled content

30

Manufactured from 30% recycled steel.
