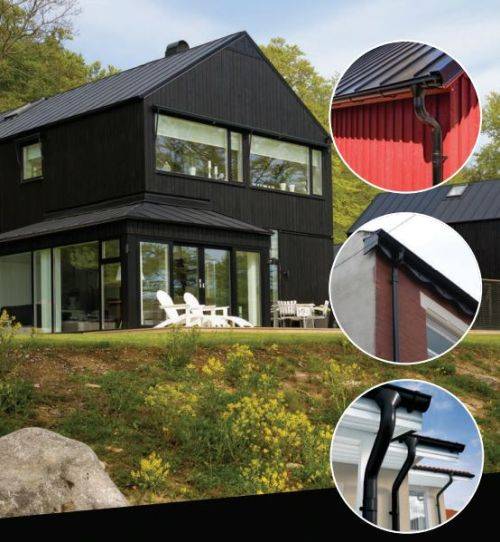

Rainline Black Gutters

Application

For use in varying applications, including:

  • Large or small roof areas.
  • Classic or contemporary buildings.
  • Domestic or commercial use.


When selecting gutter and pipe sizes for a rainwater system, the size of the roof and the downpipes (specified separately) position should be considered. This helps ensure that typical rainfall will not cause system overflow. Consult manufacturer for further details.

Description

Rainline steel gutter system finished in black (RAL 9011).


Features and benefits:

  • Low carbon footprint and low overall environmental impact.
  • Durable and flexible.
  • Manufactured from 30% recycled steel, which is more lightweight than cast iron, easier to handle than aluminium and offers minimal thermal movement compared to plastic.
  • Minimal maintenance required.
  • Highly resistant to vandal attack; further reinforcement can be added if required.
  • UV stable.
  • Available in two shapes, five sizes, and a range of other colour options. Consult manufacturer's literature for details.
  • Quick and easy to install with snap-mounting outlets, self-sealing stop ends and click-lock gutter joints.
  • Supplied with a 15-year warranty.
  • Manufactured in accordance with BS EN 12056-3: 2000.

General information

Color

Black

RAL 9011.

Finish

Gloss

Painted, RAL gloss finish.

Material

Gloss

Half-round: Roll formed 0.6 mm steel with bead stiffened fronts; Rectangular: 0.6 mm steel box, with front lip detail.

Shape

Rectangular

Size

140 x 3000 mm

WarrantyDescription

15-year

Uniclass 2015

Pr_65_50_35_42 Hot-dip pre-coated carbon steel eaves guttersPrimary

CAWS

R10/332 Continuously hot dip coated steel gutters

Specification data - Hot-dip pre-coated carbon steel eaves gutters Enhanced data

Standard

To BS EN 12056-3: 2000.

Profile

Box.

With front lip.

Size (nominal)

140 x 3000 mm.

RTRA140BK.

Material

Steel.

Finish

Painted, RAL gloss finish.

Colour

Black.

RAL 9011.

Integral accessories

Selection of brackets, joints, outlets, stop ends and overflow protectors are available dependent on gutter size and shape.

Product Reference

Rainline Black Gutters

Type

140 mm, rectangular, 3 m length (RTRA140BK).

Width (internal): 120 mm. Depth: 90 mm.

Joints

RTSK rectangular gutter joint with rubber seal, 140 mm (RTSK140BK).

As drawing.

Contractor's choice.

Outlets (snap fit)

RTOK rectangular outlet, 140 x 75 mm (RTOKA140BK).

RTOK rectangular outlet, 140 x 87 mm (RTOKB140BK).

RTOK rectangular outlet, 140 x 100 mm (RTOKC140BK).

As drawing.

Contractor's choice.

Angles

RTVI internal rectangular 90° gutter angle, 140 mm (RTVIS140BK).

RTVY external rectangular 90° gutter angle, 140 mm (RTVYS140BK).

As drawing.

Contractor's choice.

Stop ends

RTGH right hand rectangular stop end, 140 mm (RTGH140BK).

RTGV left hand rectangular stop end, 140 mm (RTGV140BK).

As drawing.

Contractor's choice.

Overflow protectors

OSK corner overflow protector (OSKBK).

As drawing.

Contractor's choice.

Brackets

RTK07 rectangular 70 mm flex-fit fascia bracket, 140 mm (RTK07140BK).

RTK21 rectangular 210 mm rafter bracket, 140 mm (RTK21140BK).

Stay straps

Not required.

STAGBK.

As drawing.

Contractor's choice.

Environmental information

Recycled content

30

Manufactured from 30% recycled steel.
