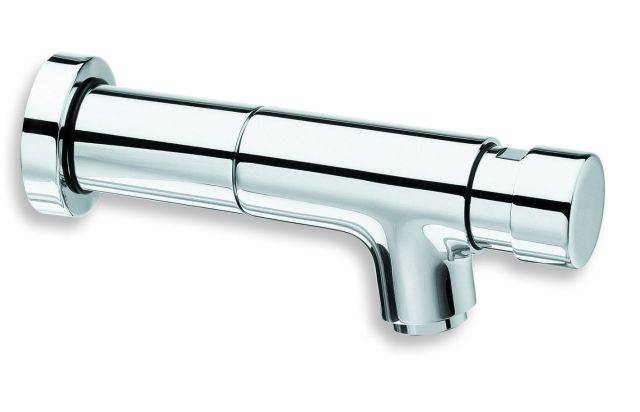

Rada T2 145 Timed BIB Tap - Extended

Rada T2 145 Timed BIB Tap - Extended

Rada Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

A non-concussive, extended timed flow bib tap.

Jump to:
+44 (0)844 571 1777 www.radacontrols.com

Description

A non-concussive, extended timed flow bib tap with flow adjustment. The tap is designed to give approximately 12 seconds of flow duration when the button is pressed and released. The internal time flow cartridge provides a choice of five flow settings to give the most economical flow rate over the pressure range available.

Features:

  • Contemporary yet robust design.
  • Easy servicing - one piece cartridge.
  • Energy and water saving - adjustable flow.
  • Non-concussive action.

General information

Features

Contemporary yet robust design

Easy servicing - one piece cartridge

Energy and water saving - adjustable flow

Non-concussive action

Material

Body and push button: Chrome plated brass

Uniclass 2015

Pr_40_20_87_99 Washbasin thermostatic water supply sets

Primary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Specification data - Washbasin thermostatic water supply sets

Product Reference

Rada T2 145 Timed BIB Tap Cold - Extended (2.1762.069)

Rada T2 145 Timed BIB Tap Hot - Extended (2.1762.068)

Standard product features

Material:

Body and push button: Chrome plated brass.

Connection:

Inlet: ½” BSP male parallel thread (to BS 2779).

Pressures:

  • Operational pressure (minimum/ maximum): 0.2/ 5 bar.
  • Static pressure (maximum): 10 bar.

Temperature range:

80°C maximum water temperature. For safety reasons it is recommended that the hot maximum temperature used for hand washing be pre-set at 40°C using a Rada/ Meynell Thermostatic Mixing Valve. Consult manufacturer's literature for more information.

Time flow cartridge:

Factory set in the mid-restriction position.

Literature

Rada Outlook - Ultimate Washroom Control Technology

Rada Outlook - Ultimate Washroom Control Technology

Third party certifications

  • Water Regulations Advisory Scheme (WRAS) approved
