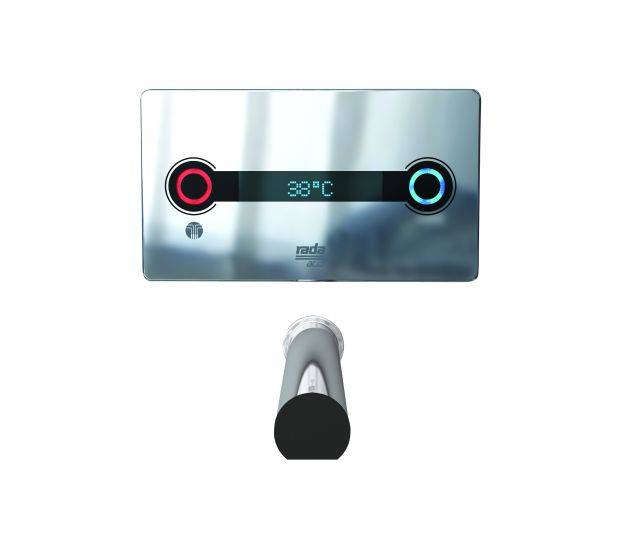

Rada ACU-T3 DMV 190 mm Spout

Verified by manufacturer 2 months ago

1.1664.001

Rada Variant:
Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Concealed digital mixing valve for washbasins.

Jump to:
+44 (0)344 571 1777 www.radacontrols.com

Application

For wash basins.

Description

Concealed digital mixing valve for washbasins.


Features and benefits:

  • Offers programmable maximum, minimum and default temperatures, duty flush and thermal disinfection with temperature logging and data logging capabilities.
  • Supplied complete with programmable software, power supply, isolators, non return valves and filters.
  • Panel mounted control panel offering access to valve, featuring infra-red non-touch controls for temperature adjustment and programming.
  • Panel mounted spout offering user activated on/ off control or timed flow.
  • Exceeds HTM64 requirements.
  • Incorporates T-logic digital intelligence, allowing the user to operate, communicate and exchange information with the digital mixing valve to achieve safety, hygiene and control.
  • Programmable flow times and temperatures and three optional pre-programmed modes.
  • Panel mounted temperature control panel.
  • Incorporates T-logic digital intelligence.


Environment:

Note, certain types of fluorescent and low voltage lighting use high frequency lamps that can interfere with the infrared system used in the control panel. It is recommended that standard switch-start fluorescent lighting is used.

General information

Finish

Chrome

Material

Brass

Integral components DZR brass.

Stainless steel

Integral components.

Plastic

PC with in mould decoration (control panel cover), ABS (mixing unit enclosure) and engineering plastic (integral components).

WarrantyDescription

Two year

Five year

Uniclass

Pr_40_20_87_99 Washbasin thermostatic water supply sets

Primary

CAWS

N13/30 Washbasins

N13/335 Washbasins

N13/341 Vanity tops with formed washbasins

N13/346 Washing troughs

Product range

Healthcare

Specification data - Washbasin thermostatic water supply sets

Approval

Water Regulations Advisory Scheme (WRAS) and BEAB approved.

Form

Digital mixing valve.

Materials

-

Body

PC with in mould decoration (control panel cover), ABS (mixing unit enclosure), DZR brass, stainless steel and engineering plastic (integral components)

Finish and colour

Chrome plated.

Flow rate (maximum)

6 L/min.

Maximum with flow regulator fitted.

Spout length

190 mm.

Dimensions

Front plate dimensions.

135 x 236 x 9.5 mm.

(H x W x D).

Installation depth

75 mm.

RelativeHumidity

95%.

  • Non-condensing at 25°C.


Note, certain types of fluorescent and low voltage lighting use high frequency lamps that can interfere with the infrared system used in the control panel. It is recommended that standard switch-start fluorescent lighting is used.

Load (maximum)

20 W (PSU).

Connections

15 mm compression.

Flat faced union.

NominalSupplyVoltage

100–230 V.

Ambient temperature

1-40°C.

Note, certain types of fluorescent and low voltage lighting use high frequency lamps that can interfere with the infrared system used in the control panel. It is recommended that standard switch-start fluorescent lighting is used.

Ingress protection (IP) rating

IP24.

Frequency

50–60 Hz.

Environmental information

Country of product manufacture

United Kingdom

Digital objects

Platform Compatible Version Certified to
Revit

Revit 2016

1

1.3
IFC
-

1

1.3
AECOsim
-

1.0

1.0

Download now from NBS National BIM Library

Literature

Rada Healthcare Product Selector

Rada Healthcare Product Selector

Rada Product Selector - Commercial Washroom Controls

Rada Product Selector - Commercial Washroom Controls

Third party certifications

  • BEAB
  • Buildcert TMV3 Thermostatic Mixing Valve Scheme : HP-WE High Pressure Washbasin - Economy Flow Rate, maximum temperature 41°C
  • WRAS (Water Regulations Advisory Scheme)
