Description

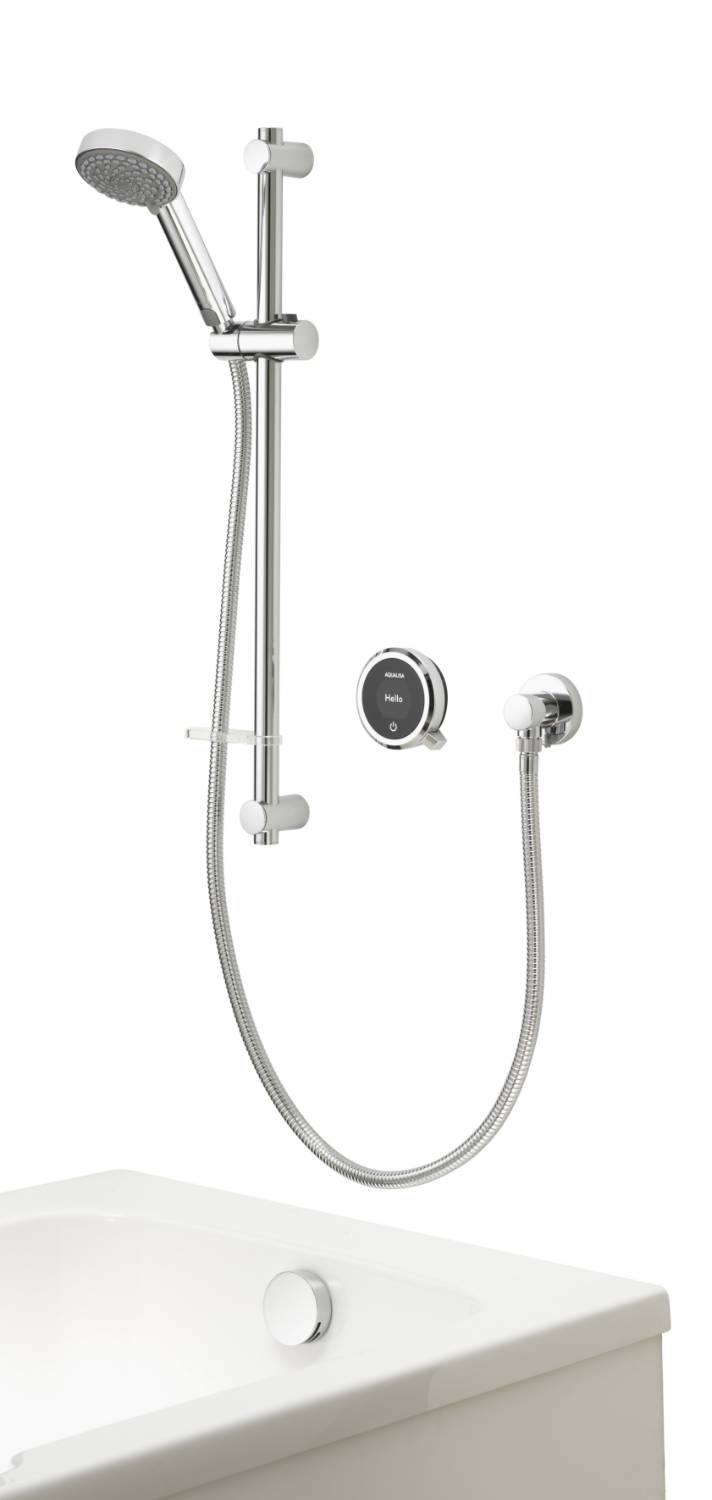

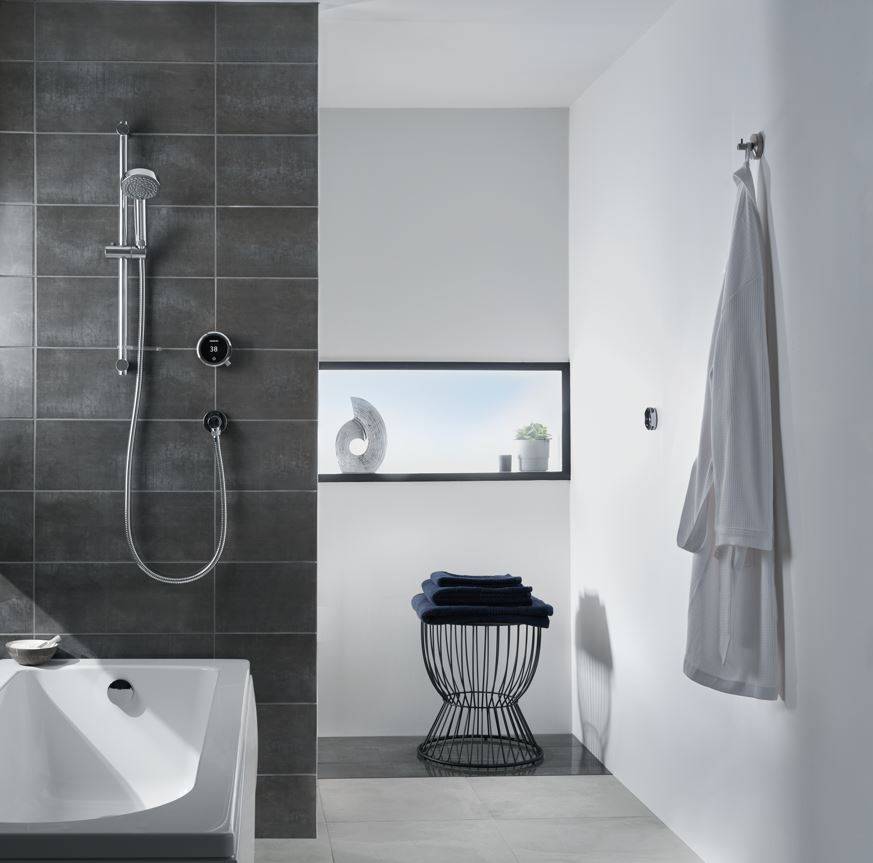

Adjustable showerhead with bath overflow. Adjustable up to maximum centres of 657 mm. It must be sited no higher than the base level of the cold water system.

Features and benefits:

  • Proximity sensor (to wake controller up).
  • Large rotary temperature ring.
  • Digital display system.
  • Unique lever control.
  • User definable shower profiles/ experiences (available via the Aqualisa app).
  • Warm and ready indicator.
  • Optical on/ off switch.
  • Magnetically damped lever.
  • Aqualisa SmartValve™.
  • Wi-Fi and app compatible – control the product with a smart phone or smart home device e.g. Alexa or Google home.
  • App functions include start/ stop, shower timer, user dashboard, usage tracker and help/ support.
  • Optional wireless rechargeable remote control (separate product).
  • CE marked.
  • Five-year guarantee.

General information
Finish

Chrome

Size

25 x 98 mm

Color

Chrome

Features

One touch stop, start control, LED display, compatible with wireless remote, WiFi and app compatible, proximity sensor

Material

Metal, plastic, chrome plated

Shape

Circular

WarrantyDescription

5-year guarantee – shower unit, 2-year guarantee – shower head and kit

Uniclass 2015 Shower fittings package (Pr_40_20_87_75)
Specification data
Product Reference

Quartz Touch™ Smart Divert With Concealed Adjustable With Bath Overflow - GP

QZST.A2.BV.DVBTX.20.

Standard product features

Size:

  • Adjustable head (h x w): 700 x 320 mm (maximum).
  • Showerhead diameter: 105 mm.
  • Controller: 25 x 98 mm.
  • Aqualisa SmartValve™: 91 x 165 x 445 mm.
  • Diverter: 70 x 110 x 196 mm.

Technical characteristics:

  • Pressure: 0.1 bar (minimum), 1 bar (maximum).
  • Aqualisa SmartValve™ inlet and outlet fitting connections: 15 mm push fit.
  • Valve inlet centres: 48 mm.
  • Inlet supply positions: Hot right, cold left.
  • Permissible Aqualisa SmartValve™ siting location: Loft, airing cupboard, under bath.
  • Supply temperature: Cold inlet temperature 1˚C (minimum) and 15˚C (maximum). Hot inlet temperature 65˚C (maximum).
  • Water system: Gravity.

Digital objects
PlatformCompatibleVersionCertified to
Revit
- 1 2.1
IFC
- 1 2.1
Download now from NBS National BIM Library
