Description

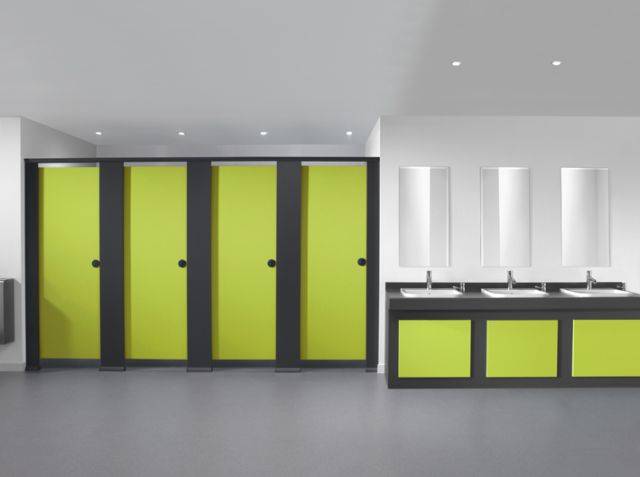

Quadro MFC is a competitively priced stylish washroom cubicle. Quadro features a unique quadrant shoe for pilasters with the same design mirrored in the continuous head-rail. Available with optional privacy skirting and low floor clearance to doors.

Panels are manufactured to specific site dimensions and CAD drawings will be supplied with each delivery.

Components:

  • Melamine faced chipboard panels, supplied square edged with matching 1 mm PVC lipping.
  • Frame comprising: Pilasters, headrail, legs, hinges and channels.

General information
Specification data - Fully-framed panel cubicle systems
Product Reference

Quadro MFC Panel Cubicles

Colour -
Doors, Partitions & Pilasters

Refer to manufacturer's standard colour range.

Frames -
Headrail

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Blue

Powder coated aluminium.

Green

Powder coated aluminium.

Red

Powder coated aluminium.

Yellow

Powder coated aluminium.

Hinges & Channels

Charcoal grey

Powder coated aluminium.

Silver

Powder coated aluminium.

Faceplate & Pilaster Foot

Charcoal grey

Powder coated ABS.

Silver

Powder coated ABS.

Blue

Powder coated ABS.

Green

Powder coated ABS.

Red

Powder coated ABS.

Yellow

Powder coated ABS.

Floor Clearance

Standard

105 mm to doors and partitions.

Low

50 mm to doors with privacy skirting to partitions.

Accessories

Refer to manufacturer's standard accessories range.

Other requirements

None

Stylex printed doors.

Standard product features

Panel Material:

  • Melamine faced moisture resistant 650 kg/m³ grade chipboard.
  • Thickness (overall):18 mm nominal.
  • Edge detail: Square with 1 mm matching PVC lipping.

Height:

2000 mm.

Product Options

Colours:

- Doors, partitions & pilasters:

36 laminate colour options and 4 digital prints - select from manufacturer's literature.

Accessories:

Selection of soap dispensers, paper towel dispensers, toilet roll holders, hand dryers, coat hooks and door handles - select from manufacturer's literature.
