Description

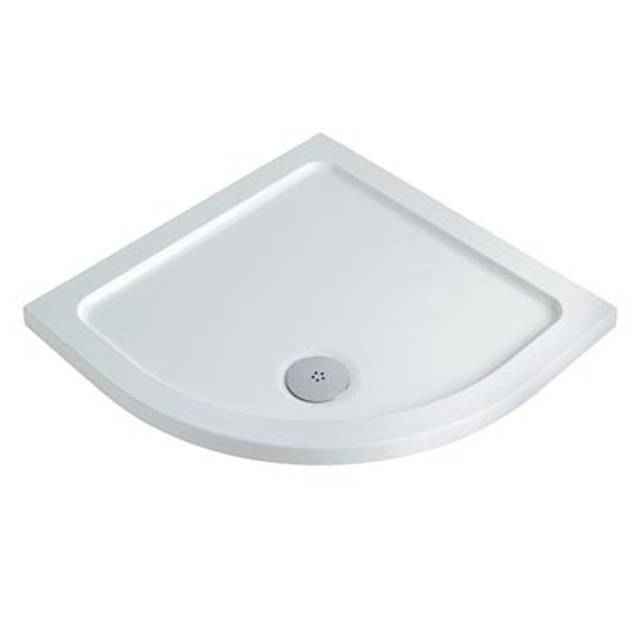

Low profile quadrant shower tray with flat top. The tray has two straight sides and two curved sides. Suitable for commercial, domestic, education, healthcare, hotel and leisure applications.

General information
Material

Tray: 2/ 2.5 mm acrylic capped APBS, reinforced with limestone filled polyconcrete

Panel: 2 mm gloss PVC-U

Uniclass 2015 Shower trays (Pr_40_20_06_84)
Specification data
Product Reference

Quadrant Flat Top Tray

Type

TR6521WH

800 x 800 mm.

TR6531WH

900 x 900 mm.

TR6541WH

1000 x 1000 mm.

Accessories

None

SF8888XX

90 mm high flow waste kit, chrome plated.

TR6011WH

Quadrant legset and panel kit.

TR6014WH

Flexible upstand kit, converts flat top tray to tiling upstand option.

TR6015WH

1200 mm flexible waste pipe.

WF4343CP

1½" gridded chrome waste.

Standard product features

Material:

  • Tray: 2/ 2.5 mm acrylic capped APBS, reinforced with limestone filled polyconcrete.
  • Panel: 2 mm gloss PVC-U.

Colour:

White.

Product Options

Installation:

Trays can be installed flat to floor or used in conjunction with a legset and panel kit.
