Description

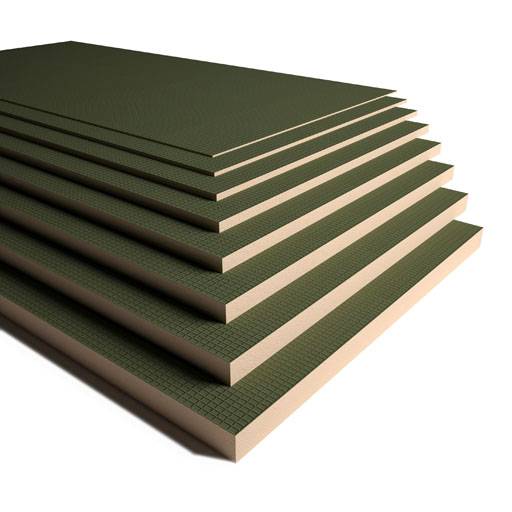

High performance tile backer boards manufactured from high density polystyrene which is coated with a specially formulated reinforced cementitious coating that provides a hard wearing robust waterproof surface perfect for the application of tiles, plaster and synthetic render. Its rigidity and stability mean that a 10 mm thick board is sufficient to replace the more conventional 15–18 mm thick plywood required as per BS 5385-3:2007 to overlay timber floors prior to tiling. The 10 mm board will support a maximum weight of 85 kg/m² when used on walls.

Features and benefits:

  • Energy saving.
  • Class 0 fire rating for surface spread of flame to BS 476-6 and 7.
  • Tile ready surface.
  • Suitable for use with underfloor heating.
  • High compressive strength and impact resistance.
  • Excellent thermal insulation.

General information
Color

Grey

Features

Tile ready surface, high compressive strength, suitable for use with underfloor heating, suitable for spas and pools

Material

High density polystyrene

Shape

Rectangular

Size

600 x 1200 x 6 mm

600 x 1200 x 10 mm

600 x 1200 x 12.5 mm

600 x 1200 x 20 mm

600 x 1200 x 30 mm

600 x 1200 x 40 mm

600 x 1200 x 50 mm

600 x 1200 x 60 mm

600 x 1200 x 70 mm

WarrantyDescription

25 years

Uniclass 2015
Pr_25_71_63_29 Extruded polystyrene (XPS) boardsPrimary
Specification data - Extruded polystyrene (XPS) boards
Product Reference

Pro Board

Thickness

6 mm

2.35 kg, 6.6 w/m²k.

10 mm

2.37 kg, 3.66 w/m²k.

12.5 mm

2.42 kg, 2.86 w/m²k.

20 mm

2.59 kg, 1.74 w/m²k.

30 mm

2.81 kg, 1.14 w/m²k.

40 mm

3.03 kg, 0.85 w/m²k.

50 mm

3.25 kg, 0.67 w/m²k.

60 mm

3.47 kg, 0.56 w/m²k.

70 mm

3.69 kg, 0.48 w/m²k.

Standard product features

Size:

600 x 1200 mm.

Compressive strength:

300 kPa.

Thermal conductivity (BS EN 13164):

0.033 W/mK.

Water absorption (BS EN12087):

0.6%.

Density (foam core only):

36 kg/m³.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 5 2.0
