Description

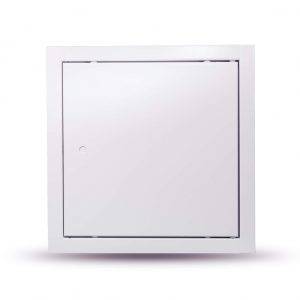

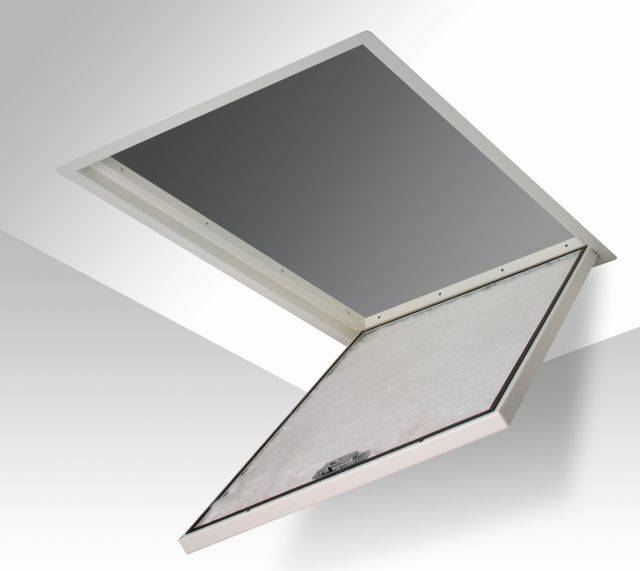

Available fire rated up to two hours, the zintec steel doors are finished in powder coated white and can be over painted to blend with the surrounding surface. The larger panels have full length piano hinges with the smaller panels using unique pivot hinges. The Fire Rated Access Panel is a high quality robust solution suitable for everyday use and fitted with the ‘Slik’ invisible keyhole gives your client all the discrete advantages possible with an access panel.

There are two frame options for the fire rated range. A beaded frame type (SBF) with perforated flange to key into the surrounding membrane, used where the surface has yet to be skimmed or tape and jointed. Or the picture frame, (PF), where the solid flange sits on the surface of the wall or ceiling and covers the cut edge of the aperture, used when the surface has already been finished and decorated.

The Premium Range is also available in an Acoustic Rated version, providing a maximum reduction of 63 db Rw to BSEN ISO140-3:1995 standards.

General information
Size

200 x 200 mm

300 x 300 mm

450 x 450 mm

550 x 550 mm

600 x 300 mm

600 x 600 mm

900 x 950 mm

900 x 600 mm

900 x 900 mm

1200 x 550 mm

1200 x 600 mm

Finish

Factory finished polyester powder coated RAL 9010 (other colours available on request)

Uniclass 2015
Access panels (Pr_30_59_36_01)Primary
Specification data - Access panels
Product Reference

Premium Range Fire Rated Access Panel

Size

200 x 200 mm

300 x 300 mm

450 x 450 mm

550 x 550 mm

600 x 300 mm

600 x 600 mm

900 x 950 mm

900 x 600 mm

900 x 900 mm

1200 x 550 mm

1200 x 600 mm

FireRating

60 minutes

120 minutes

FrameType

Picture Frame (PF)

Simulated Beaded Frame (SBF)

Aperture

Ceiling

Wall

Lock

Euro Cylinder

Radial Pin Tumbler

Square Drive Operated Lock ‘Slik’ Invisible Keyhole (as standard)

Three Point Lock

Standard product features

Finish:

Factory finished polyester powder coated RAL 9010 (other colours available on request)
