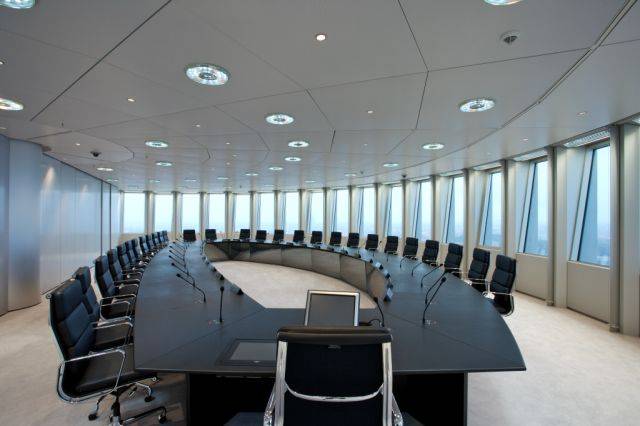

Hook-on heated and chilled ceiling.
Zinc-galvanized metal heating and cooling ceiling panels with powder coated surfaces on visible side, hung in a concealed substructure. Manufactured in accordance with European standards and the technical regulation of TAIM e.V.
Electrostatically applied powder coating
K40/10 Unit/ modular suspended ceilings
K40/115 Unit/ modular suspended ceiling system
E 200 Heat conducting profile with Cu-pipe
E 200 Heat conducting profile with V2A-pipe
E 200 Activation board with Cu-pipe
Hook-on both sides
Length up to 2950 mm, width up to 1250 mm, manufactured from 0.7 mm zinc-galvanized steel, insert requirements.
30 x 30 mm, L-angle aluminium
25 x 20 x 20 x 35 mm, corresponding angle, aluminium
Standard product features
Fire performance (BS EN 13501):
Electrostatically applied powder coating.
Dependent on level of perforation and acoustic inlay. Consult manufacturer.
Connecting/ connection hose:
Made of pressure stable, flexible hose which is steel covered and oxygen diffusion-proofed according to DIN 4726 with removable plug system for the connection of the individual heated and chilled ceiling panels.
The individual heated and chilled ceilings are connected in series (heating and cooling zones) until a pressure loss of approximately 25–30 kPa is achieved. The individual heating and cooling zones are connected parallel to the distribution pipe (regulation zone).
- Activation board with Cu-pipe:
15 mm graphite panel, size depending on ceiling panel. Cu-pipe calibrated and shaped as a fret. Various axial distances possible.
- Heat conducting profile with Cu-pipe:
Aluminium extruded section in standard widths of 80 or 120 mm. V2A-pipe calibrated and shaped as a fret with pressed in hollow shafts by machine. Various axial distances from 45 mm are possible.
- Heat conducting profile with V2A-pipe:
Aluminium extruded section in standard widths of 80 or 120 mm. V2A-pipe calibrated and shaped as a fret. Various axial distances from 45 mm are possible.
Three standard perforations available. Other perforations available on request. Consult manufacturer for perforation patterns.
Other sizes are available, consult manufacturer.
Heating and cooling capacities:
Consult manufacturer for details.
