Plafotherm® B 100

Name: Plafotherm® B 100
Brand: 9hXoc1QmKHnPsG3ZwkhqCr
SKU: cRKcedNFitD4YwwJJVkQvm

Lindner SE

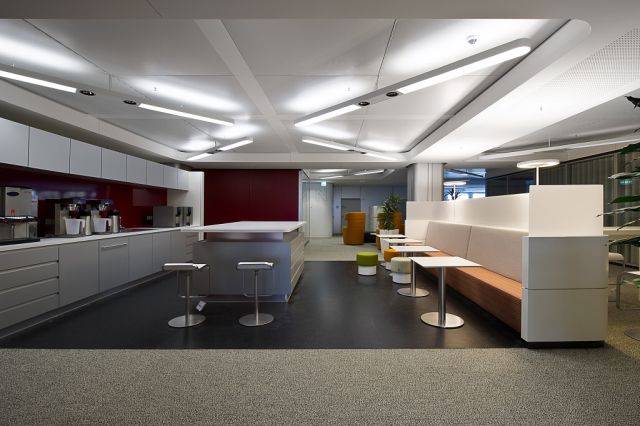

Linear post cap heated and chilled ceiling.

Jump to:

0049 8723 20 3483 www.lindner-group.com

Description

Zinc-galvanized metal heating and cooling ceiling panels with powder coated surfaces on visible side, applied on post cap suspension system. Manufactured in accordance with European standards and the technical regulation of TAIM e.V.

System comprises:

Metal ceiling panel.

Heating and cooling technology: Consisting of heat conducting element and Cu-pipe or V2A-pipe frets thermally conductive integrated into ceiling panel.

L-angle: Manufactured from zinc-galvanized steel, installed as bracing for the substructure.

Vernier suspension: Manufactured from zinc-galvanized steel, consisting of hanger upper section, hanger lower section, and safety split pins which are variably adjustable for suspension of C-post cap.

C-post cap: Manufactured from zinc-galvanized steel, 100 mm standard width, plain finish.

General information

Finish	Electrostatically applied powder coating

Uniclass 2015	Ss_30_25_22_90 Unit/ modular suspended ceiling systemsPrimary
CAWS	K40/10 Unit/ modular suspended ceilings K40/115 Unit/ modular suspended ceiling system

Product range	Ceilings

Specification data - Unit/ modular suspended ceiling systems

Product Reference	B 100 Heat conducting profile with Cu-pipe B 100 Heat conducting profile with V2A-pipe B 100 Activation board with Cu-pipe
Ceiling type	Lay-in Up to 2950 (l) x 1250 (w) mm. Lay-in with hook-on edge Up to 2950 (l) x 1250 (w) mm. Lay-in with hook-on notch Up to 2950 (l) x 1250 (w) mm. Swing-down Up to 2950 (l) x 625 (w) mm.
Panel	-
Panel size	Consult manufacturer and insert requirements.
Perforation	None Plain. Rv 1,8–20 Rg 2,5–16 Rv 3,0–20
Colour	RAL 9010 Manufacturer's standard. RAL Insert requirements. NCS Insert requirements.
Wall connection	Open 30 x 30 mm, L-angle aluminium 25 x 20 x 20 x 35 mm, corresponding angle, aluminium

Standard product features	Fire performance (BS EN 13501): Panels: A2-s2, d0 (non-combustible). Substructure: A1. Edge: Square. Finish: Electrostatically applied powder coating. Sound absorption: Dependent on level of perforation and acoustic inlay. Consult manufacturer. Connecting/ connection hose: Made of pressure stable, flexible hose which is steel covered and oxygen diffusion-proofed according to DIN 4726 with removable plug system for the connection of the individual heated and chilled ceiling panels. Hydraulic connection: The individual heated and chilled ceilings are connected in series (heating and cooling zones) until a pressure loss of approximately 25–30 kPa is achieved. The individual heating and cooling zones are connected parallel to the distribution pipe (regulation zone).
Product Options	Activation board with Cu-pipe: 15 mm graphite panel, size depending on ceiling panel. Cu-pipe calibrated and shaped as a fret. Various axial distances possible. Heat conducting profile with Cu-pipe: Aluminium extruded section in standard widths of 80 or 120 mm. V2A-pipe calibrated and shaped as a fret with pressed in hollow shafts by machine. Various axial distances from 45 mm are possible. Heat conducting profile with V2A-pipe: Aluminium extruded section in standard widths of 80 or 120 mm. V2A-pipe calibrated and shaped as a fret. Various axial distances from 45 mm are possible. Perforation: Three standard perforations available. Other perforations available on request. Consult manufacturer for perforation patterns. C-post cap: Other sizes are available, consult manufacturer. Heating and cooling capacities: Consult manufacturer for details.
